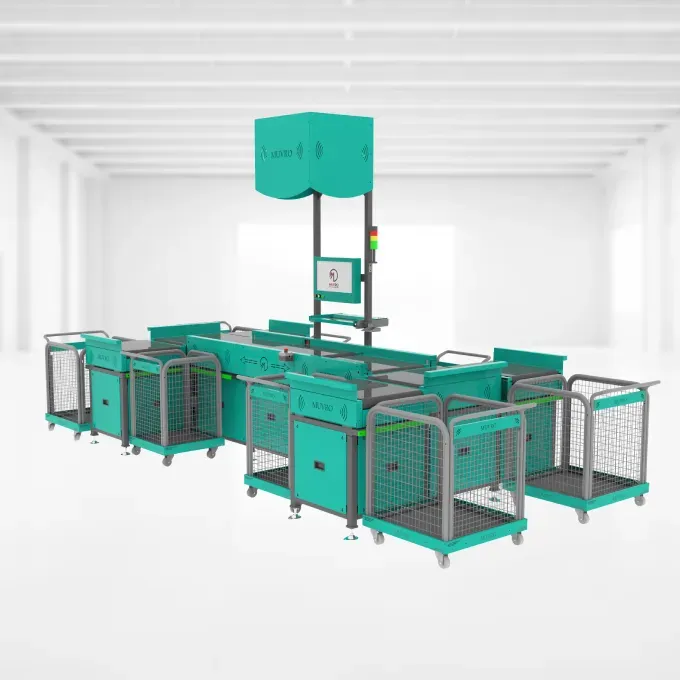

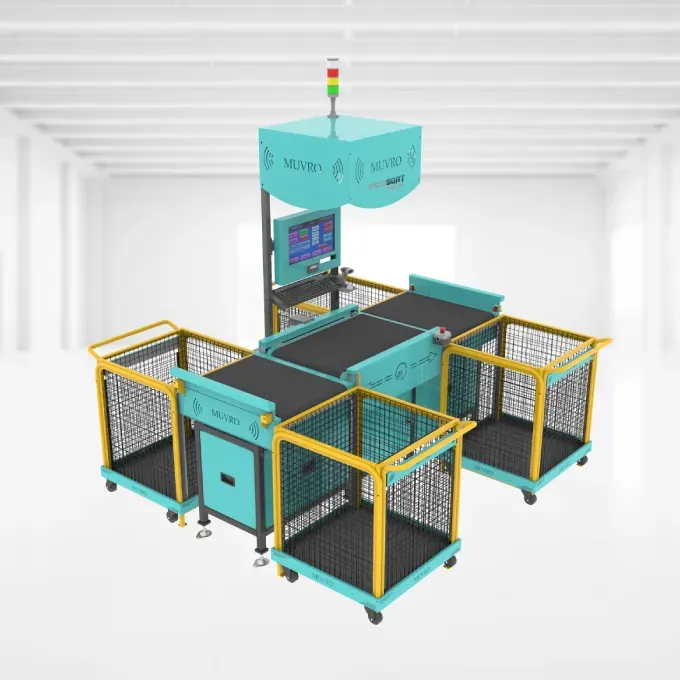

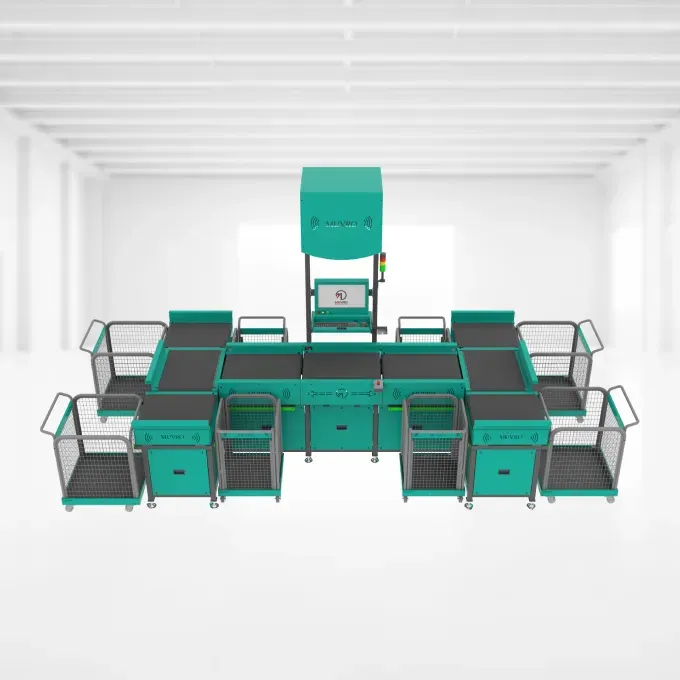

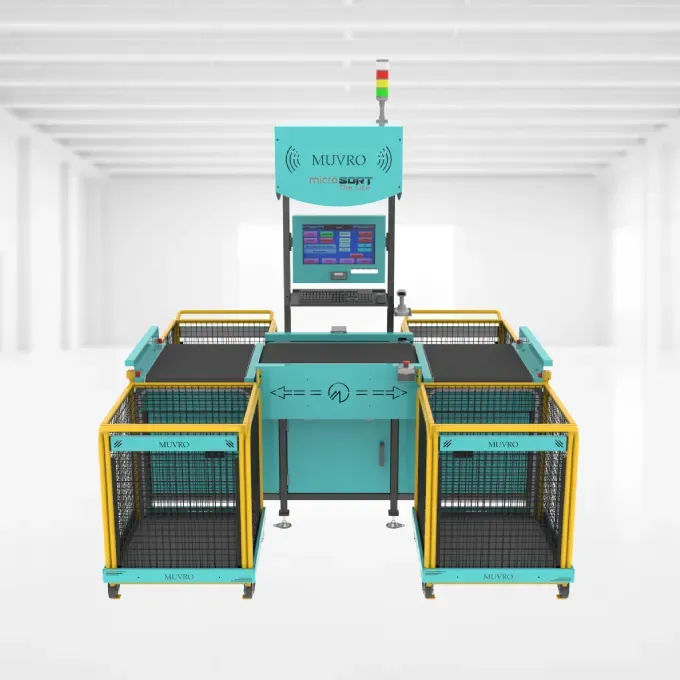

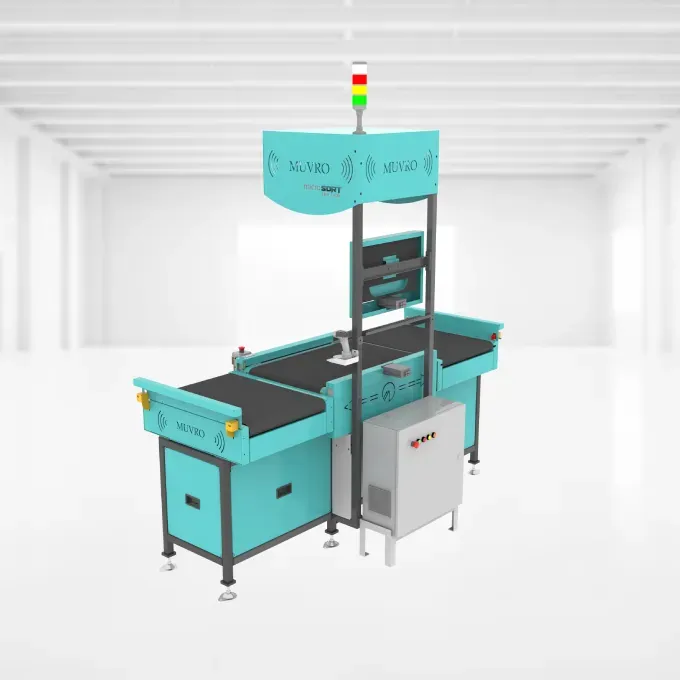

The Micro SORT_ Lite is a compact and intelligent parcel handling system designed for space-constrained operations such as 3PL facilities, return processing, secondary sorting lines, logistics hubs, e-commerce fulfilment centres, and courier networks. It seamlessly automates the core functions of barcode scanning, dimensioning, and weighing in a single pass, with an optional quick-sort module that supports up to 14 outbound destinations. By combi...
Architecture supports phased upgrades and throughput expansion.
Captures dimensions in real time without stopping conveyor.
Diverters ensure precise lane assignment (4–14 outputs).
Assigns a unique ID for seamless WMS/WCS data sync.
Handles deformable packages such as polybags with high accuracy.
Conveyor adjusts to dynamic flow rates while maintaining data precision.

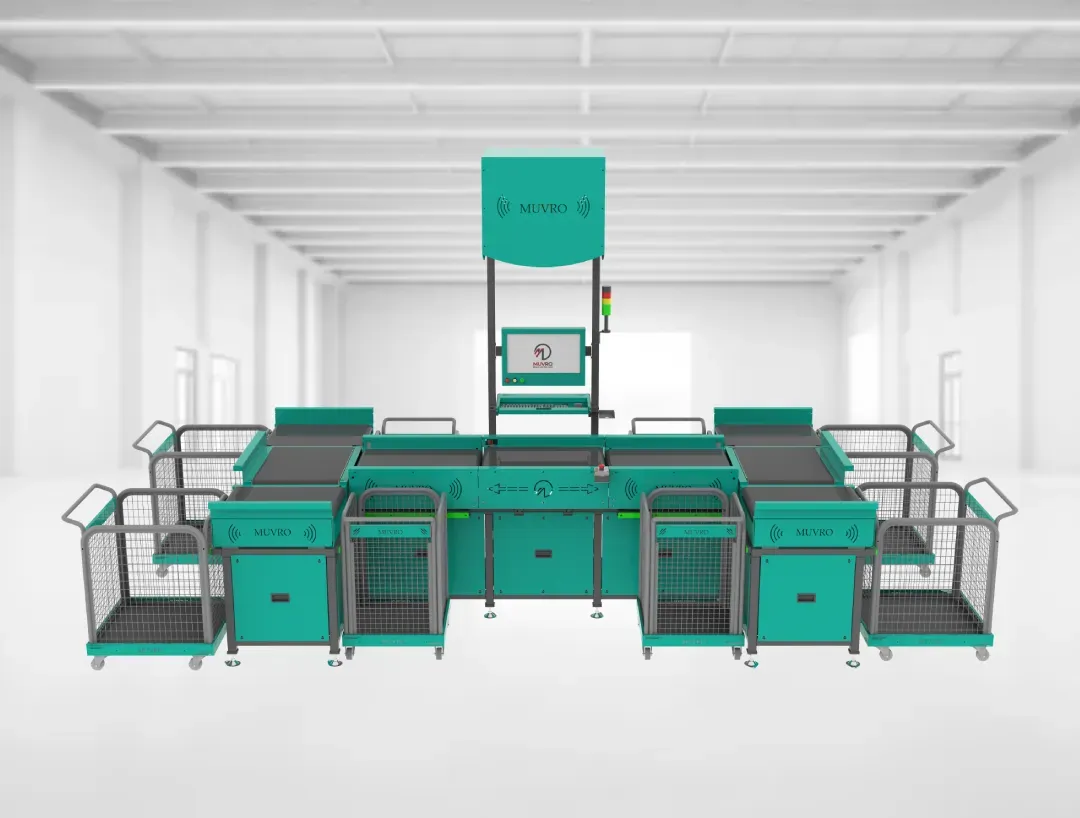

The system operates on a single & Double induct conveyor designed for manual feeding of parcels. It integrates three core modules:
• Barcode Scanner → Captures parcel identity through 1D/2D barcodes, even if torn or poorly printed.
• 3D Profiler → Captures precise dimensional data (L × W × H) in real time using camera/laser technology.
• Weighing Conveyor → Measures dynamic weight with high accuracy as parcels move along the belt.
Operator places parcel on induct conveyor.
Scanner reads ID, profiler measures size, weighing conveyor records weight.
Captured data syncs with WCS/ERP.

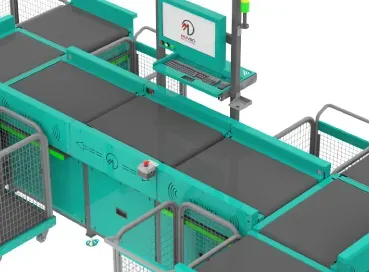

System directs parcels to their correct output lane using configurable diverters.

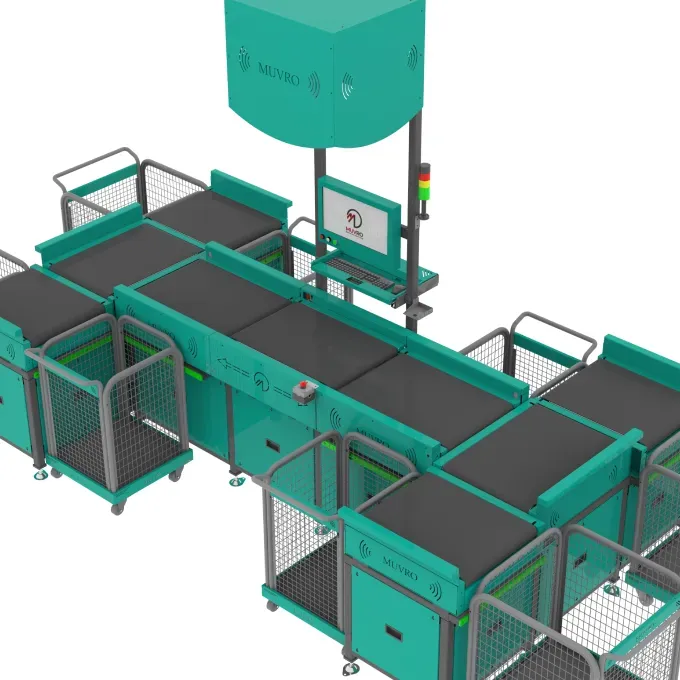

PLC-Based Control Panel with integrated safety interlocks.
Industrial-grade barcode scanners and 3D cameras for reliable identification and measurement.
Emergency stop buttons, protective guards, and fail-safe sensors.
Emergency stop buttons, protective guards, and fail-safe sensors.
>98% availability.
0–40 °C (with option for higher tolerance on request).
<70 dB for a safe and comfortable workplace.
Low-maintenance design with tool-free access and easy replaceable parts.
Compact footprint with modular scalability and system can be deployed within a single day.
Precise dimensioning, weighing, and scanning functions minimizes manual intervention and human errors.
Ensures accurate data capturing and real-time parcel traceability and ready for WMS/ERP/SAP connectivity.
Ideal alternative to large cross-belt sorters for mid-to-high throughput operations and reduced manual handling lowers labor costs and error rates.

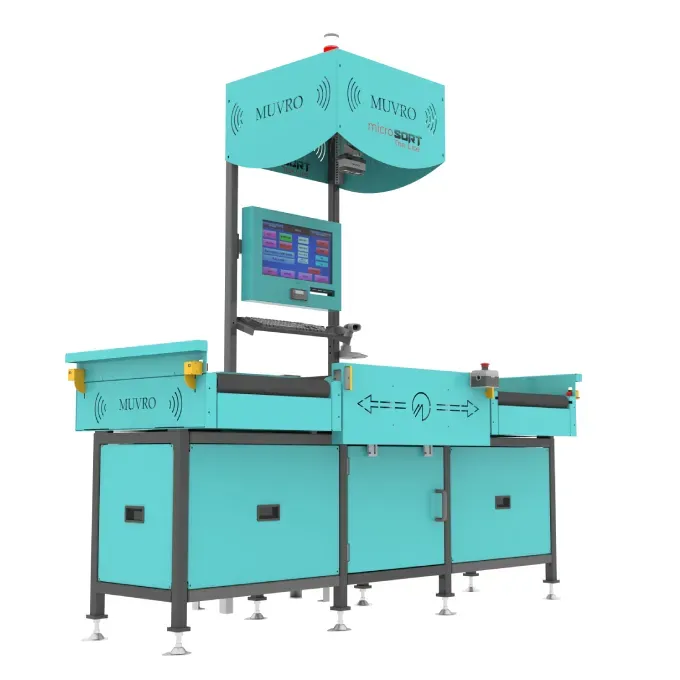

Discover the precision-engineered components that power our industry-leading sorting solution. This visual breakdown showcases the modular design elements that deliver unmatched efficiency, eliability, and adaptability for your operations.
Measures weight dynamically with precision.
Reads and validates parcel IDs.
Captures dimensions in real time (L × W × H).

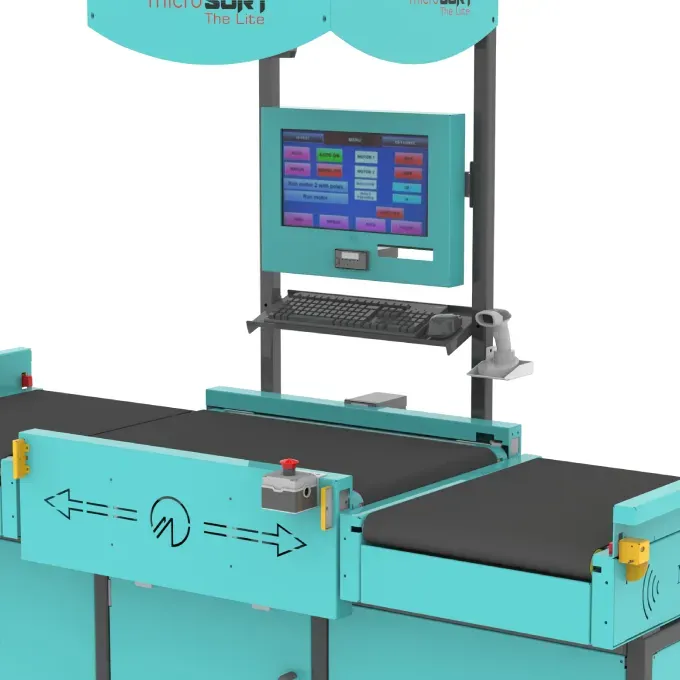

Operator HMI for real-time data and system health.
Padded mailers for small items
Thin rectangular packages
Flexible plastic shipping envelopes
Standard cardboard shipping boxes
Re-sort parcels efficiently after primary sortation for route optimization.
Streamline reverse logistics with automated identification and routing.
Accelerate order consolidation and dispatch with precise data capture.
Enable automated billing through accurate DWS data collection.
Enhance slotting, traceability, and seamless ERP integration.
The Vetro Micro SORT Lite is engineered for robust performance and precision in demanding logistics environments.
500 × 400 × 200 mm
Maximum Parcel Size
100 × 100 × 10 mm
Minimum Parcel Size
10 kg
Maximum Payload
100 g
Minimum Payload
1 Infeed = 1500 pph / 2 Infeed = 2400 pph
Throughput
Up to 2.5 m/s
Conveyor Speed
±10 g
Weighing Accuracy
±10 mm
Profiling Accuracy
Bidirectional (Left ↔ Right)
Flow Direction
0°C – 50°C
Operating Temperature
Profinet / Ethernet / Modbus / EtherCAT
Communication Protocols
415 / 230 V AC, 3/1 Phase, 50 Hz
Electrical Supply
