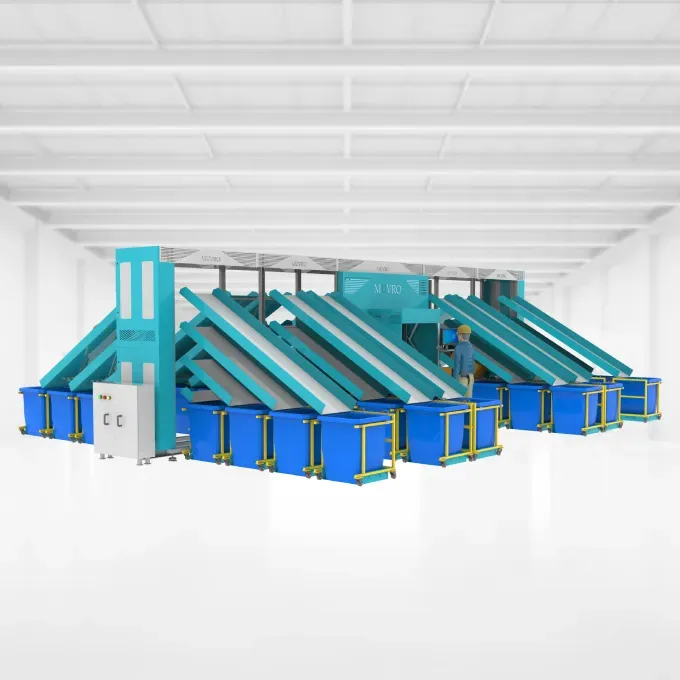

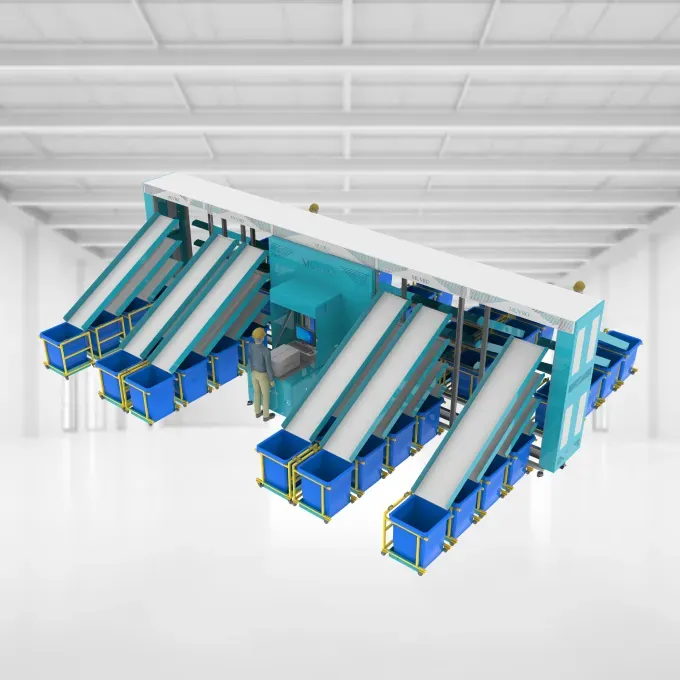

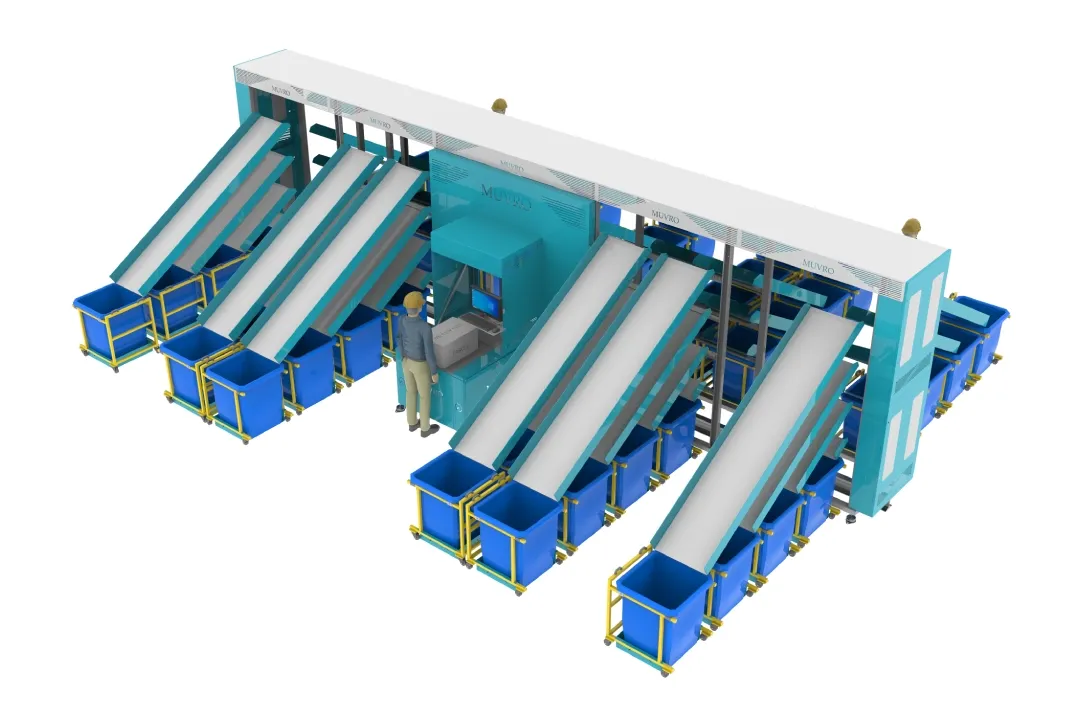

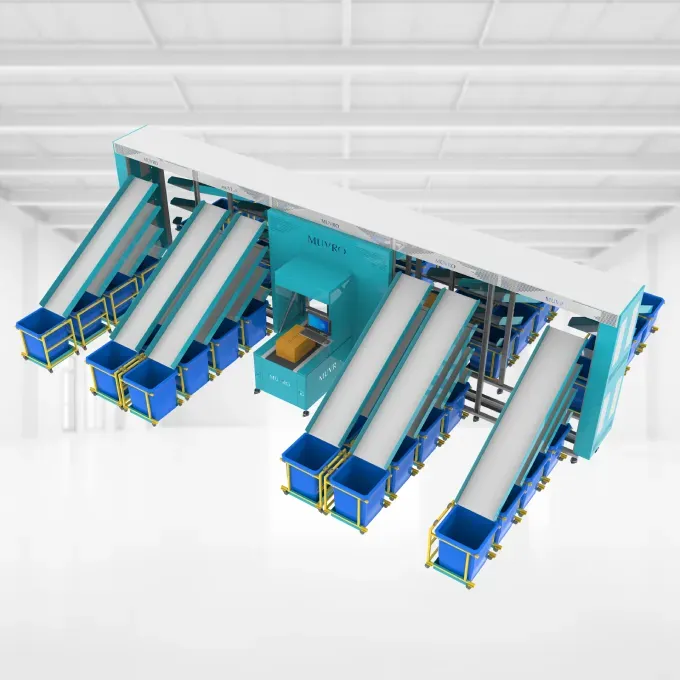

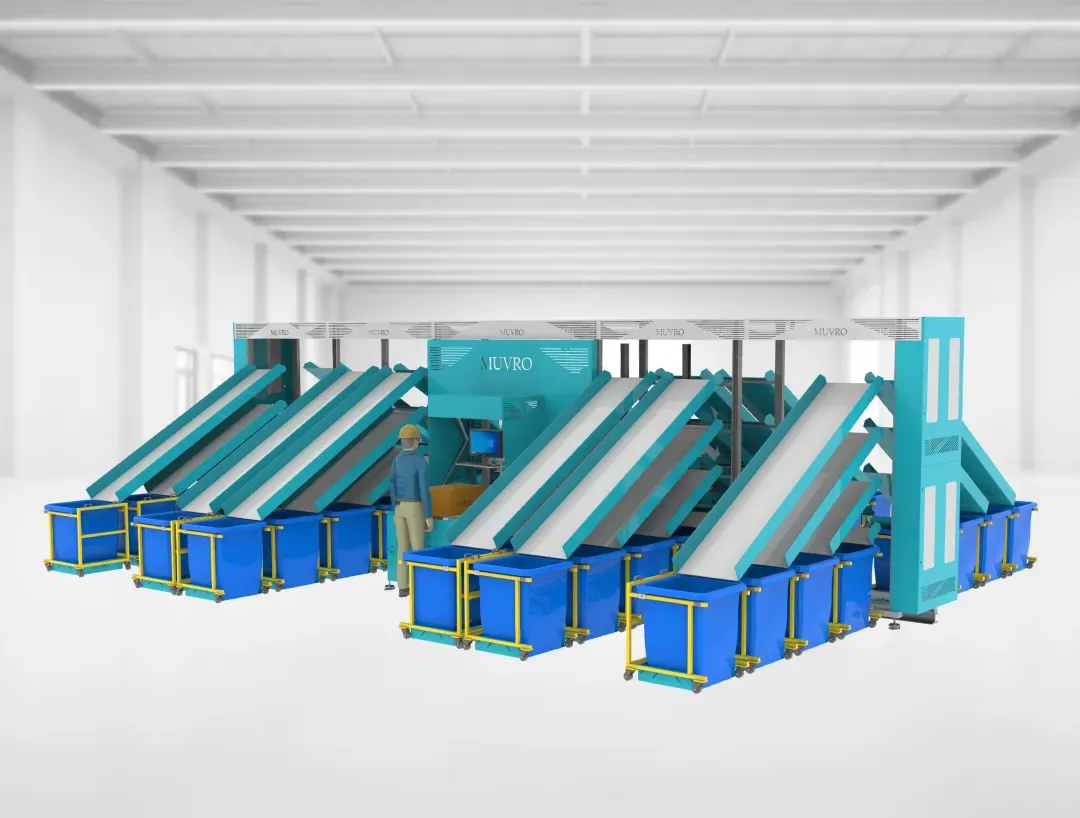

The Vertixo™ Stack Sorter redefines verticaI sorting, offering unparaIIeIed performance and adaptability for today's dynamic logistics and e—commerce demands. The Vertixo™ Stack Sorter is a high-density, multi-level parcel sorting system engineered for modern warehouses where floor space is limited and throughput demands are high. The system combines a central induction zone, a multi-axis sorting module (Y-axis horizontal travel + Z-axis vertical...
Maximizes storage capacity and sorting capabilities within a minimal footprint, ideal for space constrained facilities.
Processes a large volume of items per hour, ensuring rapid order fulfillment and efficient material flow.
Accurately sorts diverse product types with minimal error rates, reducing damage and improving operational reliability.
Optimizes workload across gantries, preventing bottlenecks and maintaining consistent sorting speeds.
Designed for durability and ease of service, Ieading to reduced downtime and lower operational costs.
Easily expandable to meet future demands, following for seamless integration of additional modules as needs evolve.

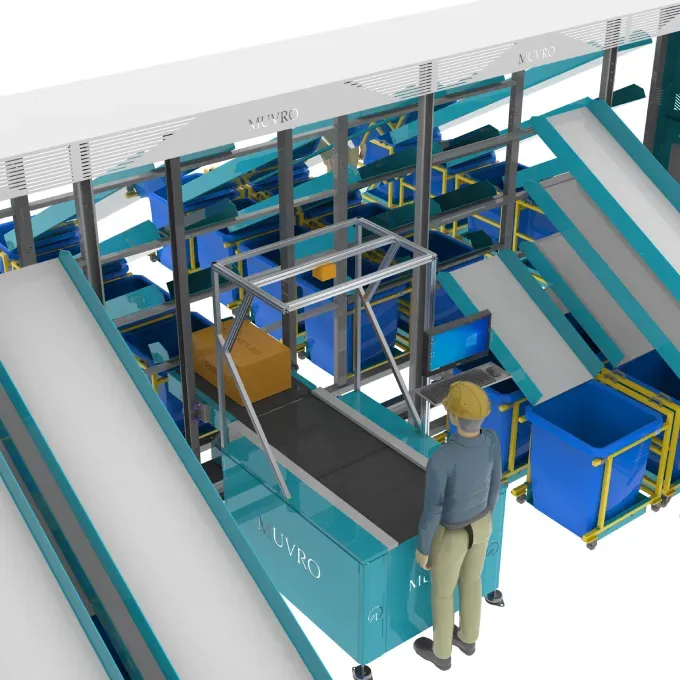

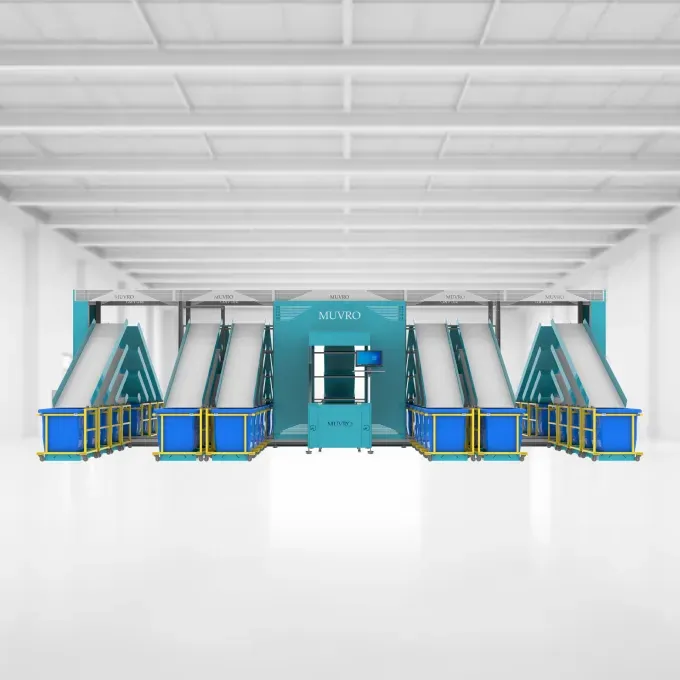

Parcels enter through the centrally located induction conveyor, where high-speed barcode or vision scanners capture identification and handling data. The WCS assigns an optimal chute based on routing logic, chute availability, and load balancing.

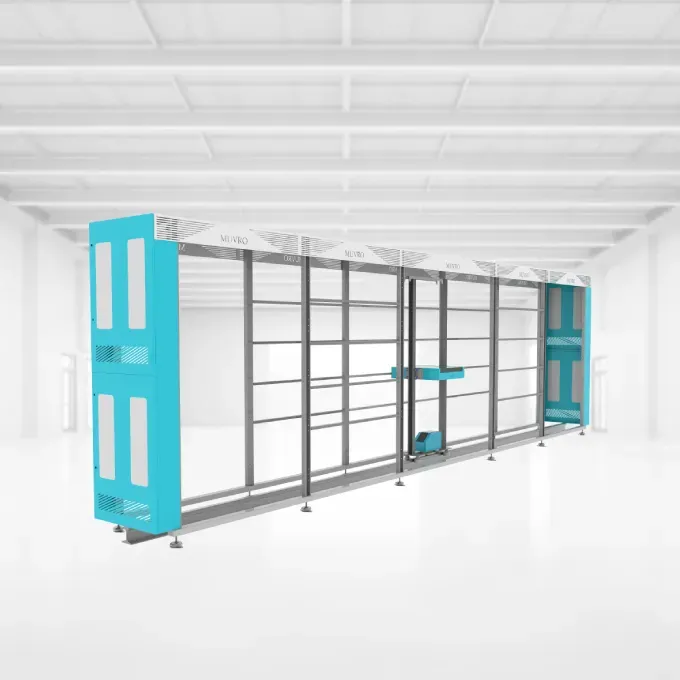

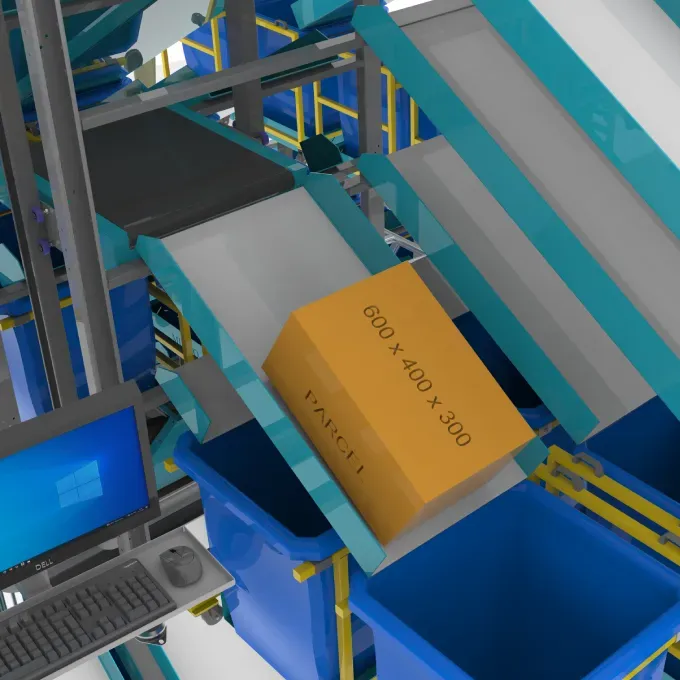

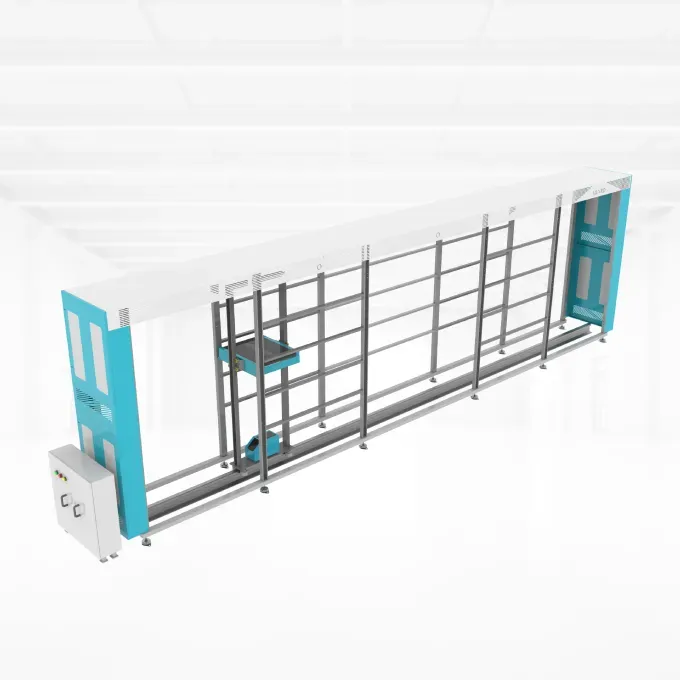

Once scanned, the parcel is transferred to the Vertixo carriage cross-belt. The module then moves horizontally along the Y-axis while the lift simultaneously adjusts its height along the Z-axis to reach the required chute level. Upon reaching the correct aisle and elevation, the cross-belt executes a left, right, or center discharge.
As the parcel exits into its chute, the Vertixo module returns to the home/induction zone—ready for the next parcel, ensuring a continuous and efficient workflow.
The Vertixo sorting logic tightly synchronizes Y, Z, and X axes for reliable, high-speed operation
Supports single infeed line with one gantry managing all aisles and levels. Ideal for medium throughput operations (900 parcels/hour). Compact and cost-efficien...

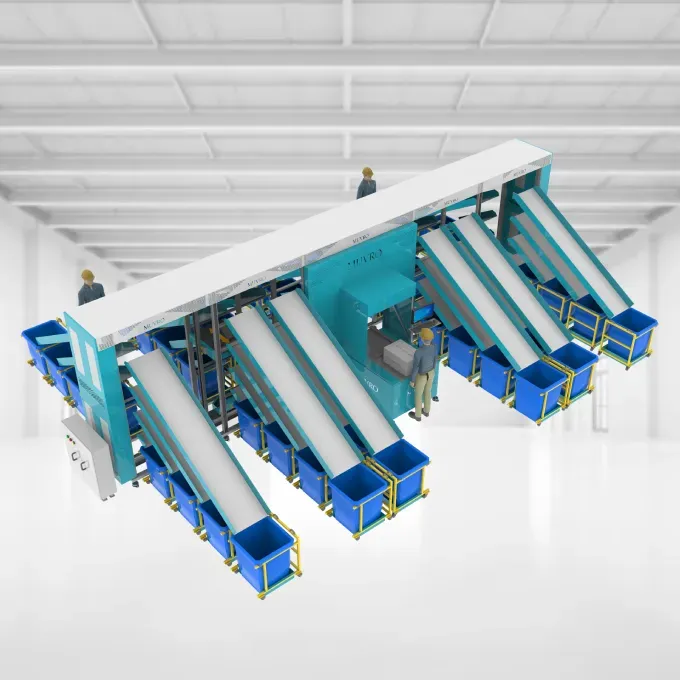

Supports two infeed lines with parallel gantries. Intelligent vertical crossover ensures seamless passing without collision. Delivers higher throughput (1500 pa...
During crossover events, each carriage automatically shifts to a different vertical level, allowing both gantries to pass seamlessly without interruption, ensur...
The Vertixo’M Stack Sorter is engineered to deliver exceptional performance within a compact footprint. Its advanced design translates into impressive operational metrics, ensuring swift and accurate handling of diverse product types and volumes. Below are key performance indicators highlighting its robust capabilities.
9 m (Left side: 4 m + Infeed: 1 m + Right side: 4 m)
Total track length
1 m, centrally located
Infeed zone
1.2 m, 3.0 m, 4.0 m (Horizontal) 0.6 m, 0.8 m, 1.4 m, 2.0 m, 2.6 m (Vertical)
Chute pitch

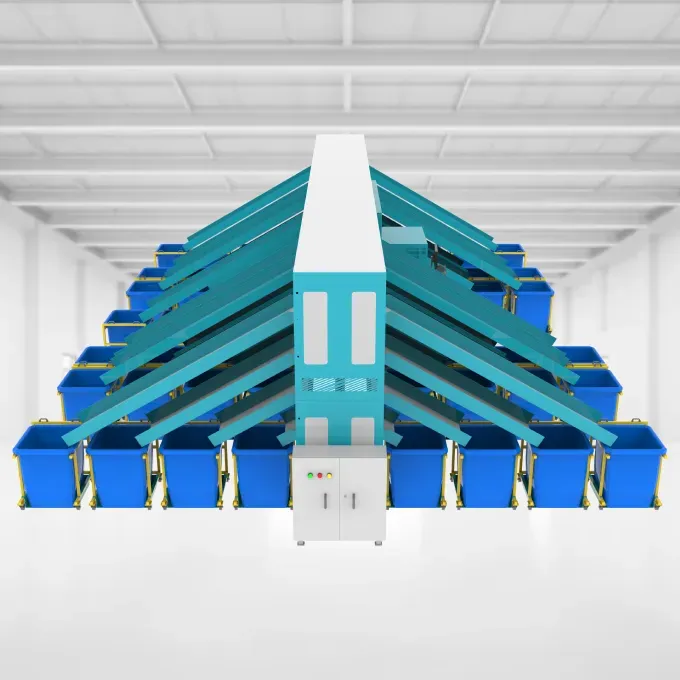

13 aisles × 4 levels × 2 sides
Destination matrix
52
Total destinations
0.8 m (L) × 0.6 m (W)
Induct conveyor
0.8 m (L) × 0.6 m (W)
Scan belt
90 m/min
Conveyor speeds
200 ms
Barcode scanning time
120 m/min (with acceleration & deceleration)
Y-Axis linear speed
120 m/min
Z-Axis lift speed
90 m/min
X-Axis cross-belt speed
