Timing belt conveyors are an advanced material handling solution designed to ensure precise product movement, accurate positioning, and synchronized operations. Unlike conventional belt conveyors, these systems use toothed belts that engage with pulleys, providing slip-free transport of goods. They are widely used in industries such as automotive, electronics, packaging, and manufacturing, where precision and reliability are critical.
The toothed timing belt ensures precise and repeatable movement. Ideal for applications where exact placement is critical, such as automated assembly lines, robotics, and inspection systems.
Operates with low energy consumption, making it cost-effective and eco-friendly. Capable of maintaining high-speed operations without compromising accuracy or performance.
The positive engagement between the toothed belt and the pulley eliminates slippage. Ensures smooth, consistent product flow, even under varying loads or operating conditions.
Available in a wide range of sizes to accommodate different product dimensions. Configurable in various layouts, such as straight, curved, or inclined designs.
The robust and durable construction minimizes wear and tear, extending the service life of the conveyor. Reduces downtime and maintenance costs, improving operational efficiency and productivity.

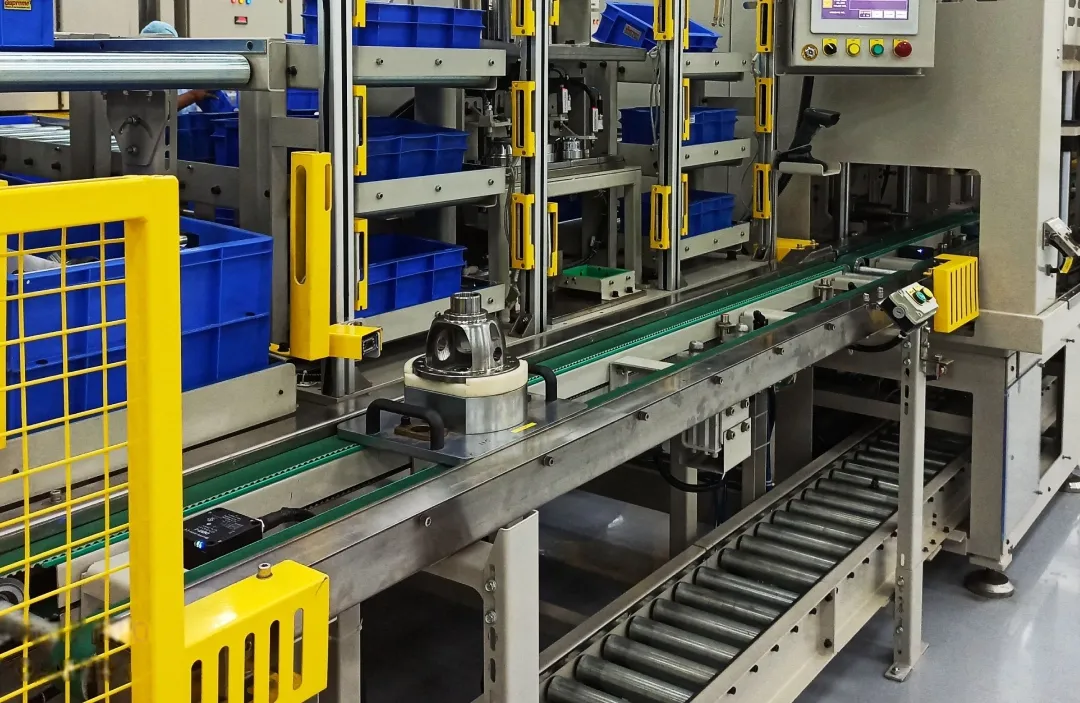

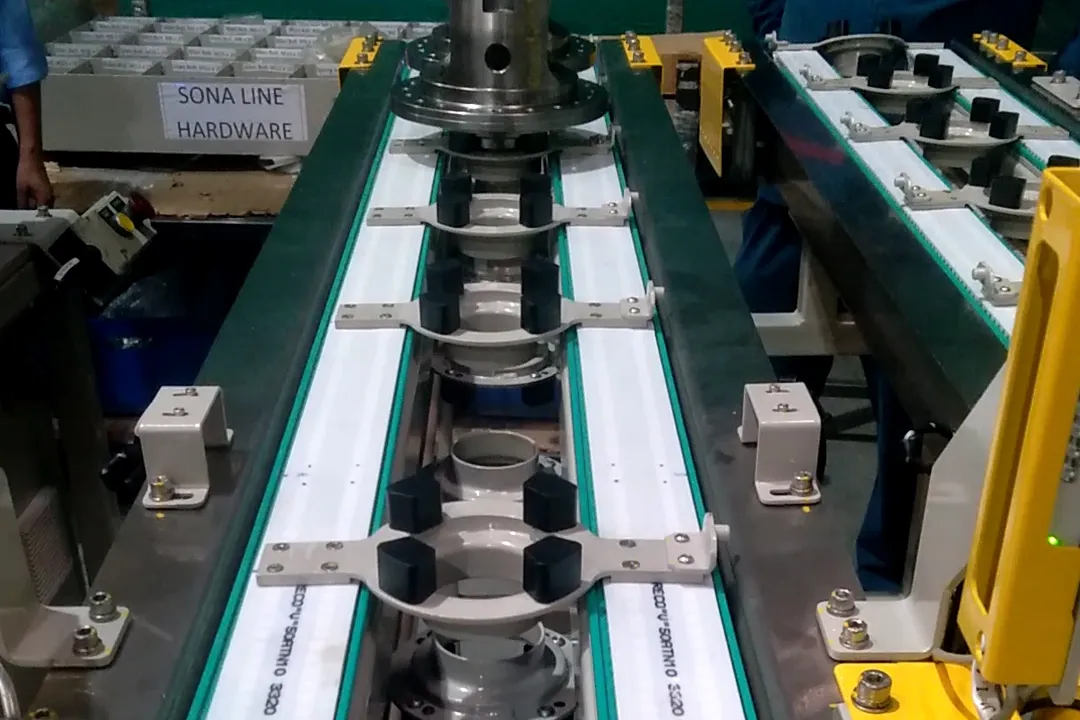

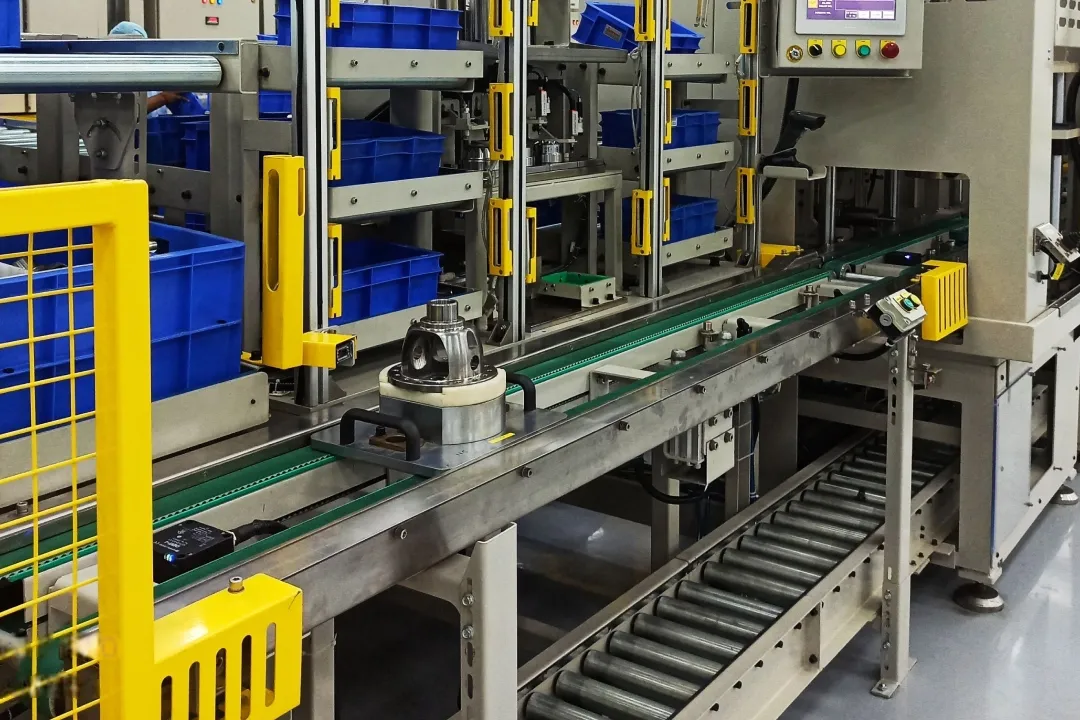

Used in manufacturing processes for assembling components with high precision. & Enables synchronized movement of parts in industries like automotive, electronics, and appliances.
Ideal for transporting materials between workstations or processing areas. & Handles lightweight to medium-heavy loads efficiently in warehouses and factories.
Suitable for transporting products during packaging processes, such as filling, sealing, or labeling & Ensures precise positioning for accurate operations.
Used in robotic systems for pick-and-place applications. & Provides precise and synchronized motion for seamless integration.
Ideal for conveyor-based inspection stations where accurate positioning is necessary. & Commonly used in quality control processes in electronics, pharmaceuticals, and automotive sectors.
Used to transport medicines, vials, and other products with precision. & Built with hygienic materials for compliance with safety standards
Customizable with food-grade materials for handling packaged or unpackaged products.

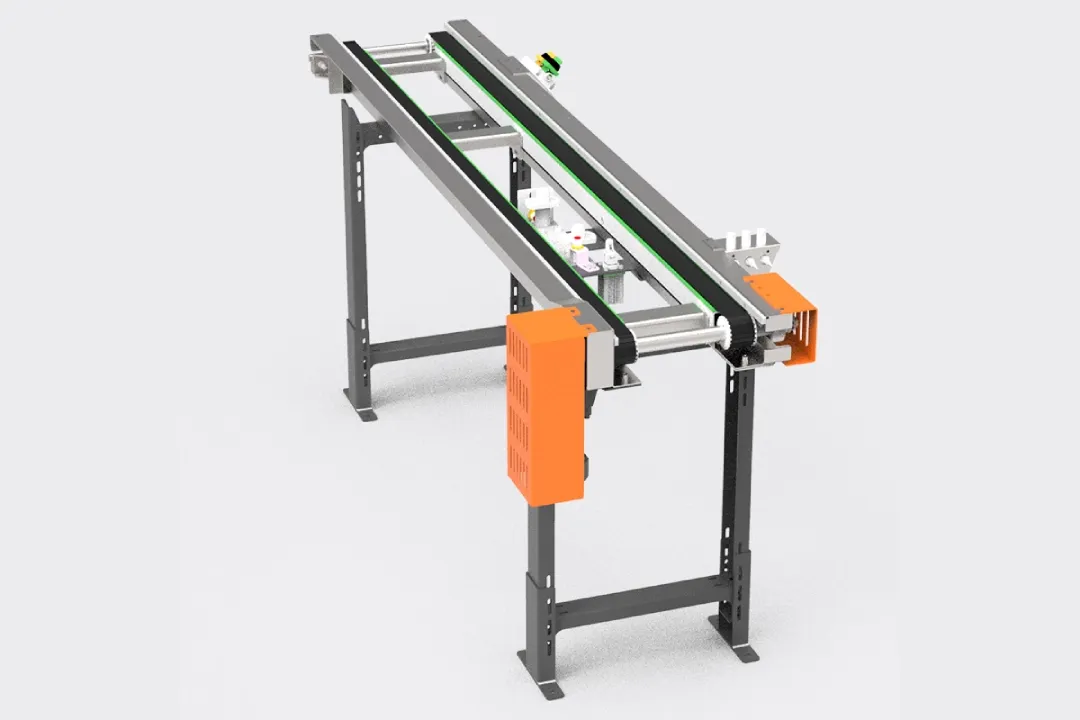

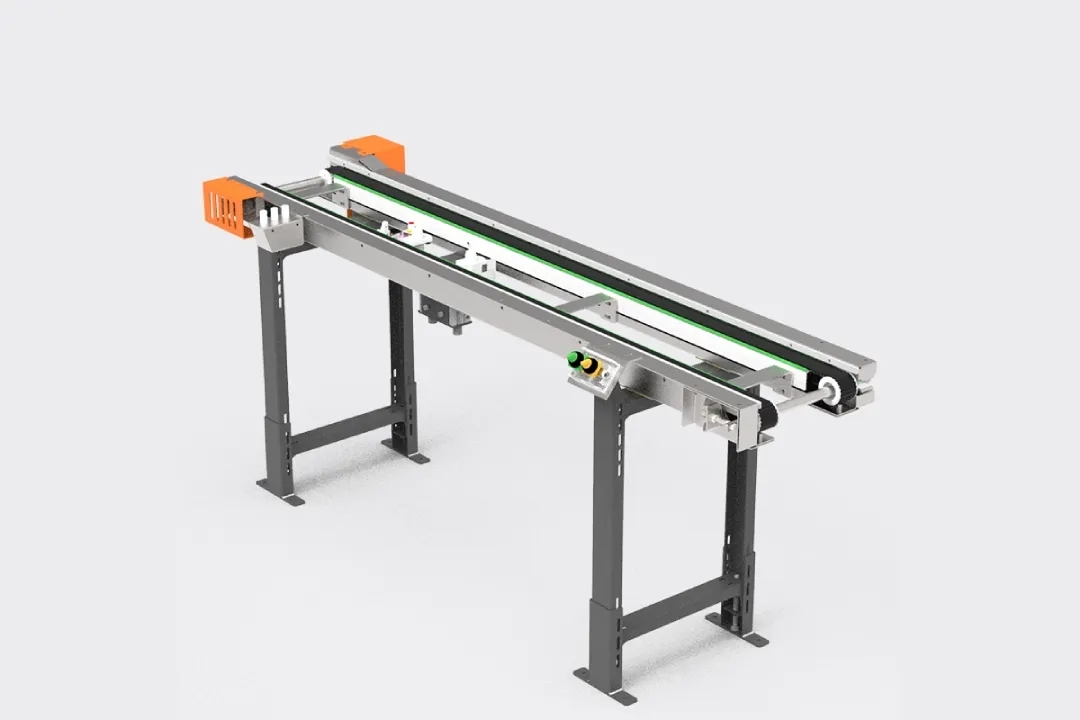

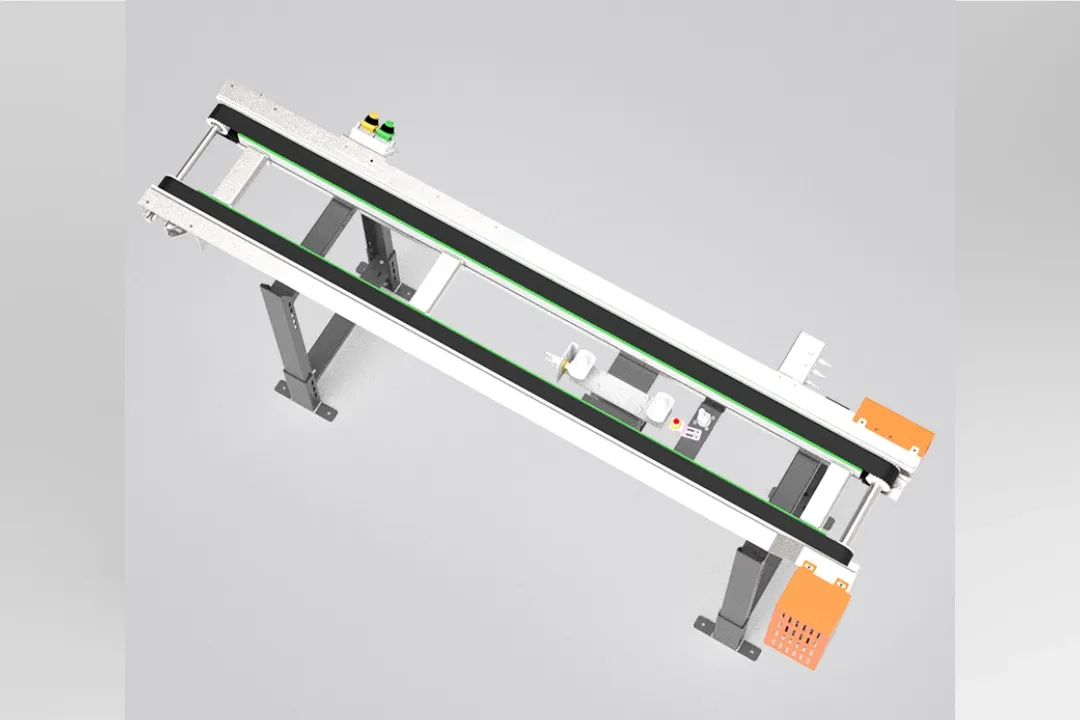

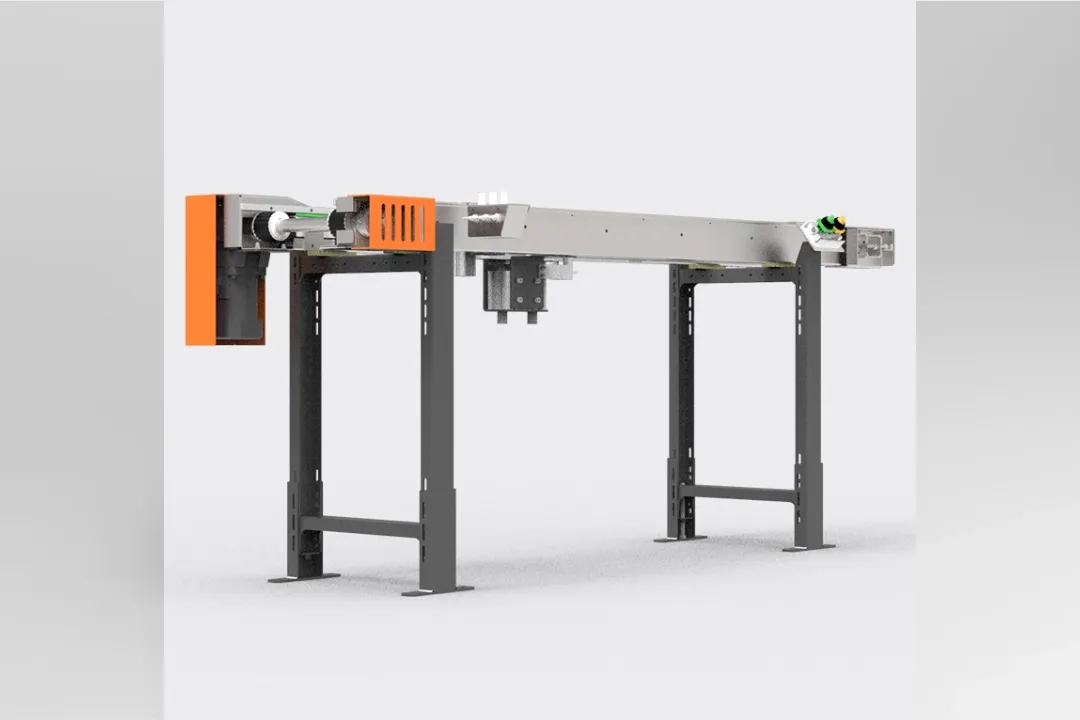

Material: Aluminum/Steel (Powder Coated or Stainless Steel)
Structure and Frame
Stainless Steel or Aluminum
Slider Bed
UHMWpe
Wear Strip
Toothed profile & Aluminum/Steel (Powder Coated or Stainless Steel)
Timming Pulleys
Timing belt with toothed profile. | Timing belt with cleated / fastners. | TPU ST1 (Thermoplastic Polyurethane) / Neoprene and reinforcement by Steel cords or Kevlar cords.
Conveyor Belt
Up to 150 kg/m
Load Capacity
Up to 5 m/s
Conveying Speed
230V / 400V AC, 50/60 Hz
Rated Voltage
0.25 kW to 2.2 kW (depending on load and speed)
Electrical Power
AC, DC, or Servo Motor
Motor Type
100 mm to 1,200 mm
Between Frame
250 mm to 1,500 mm
Total Width
500 mm to 10,000 mm
Module Length
Fixed or Adjustable (Aluminum, Steel, or Plastic)
Side Guide
Adjustable, typically 300 mm to 1,500 mm
Height
