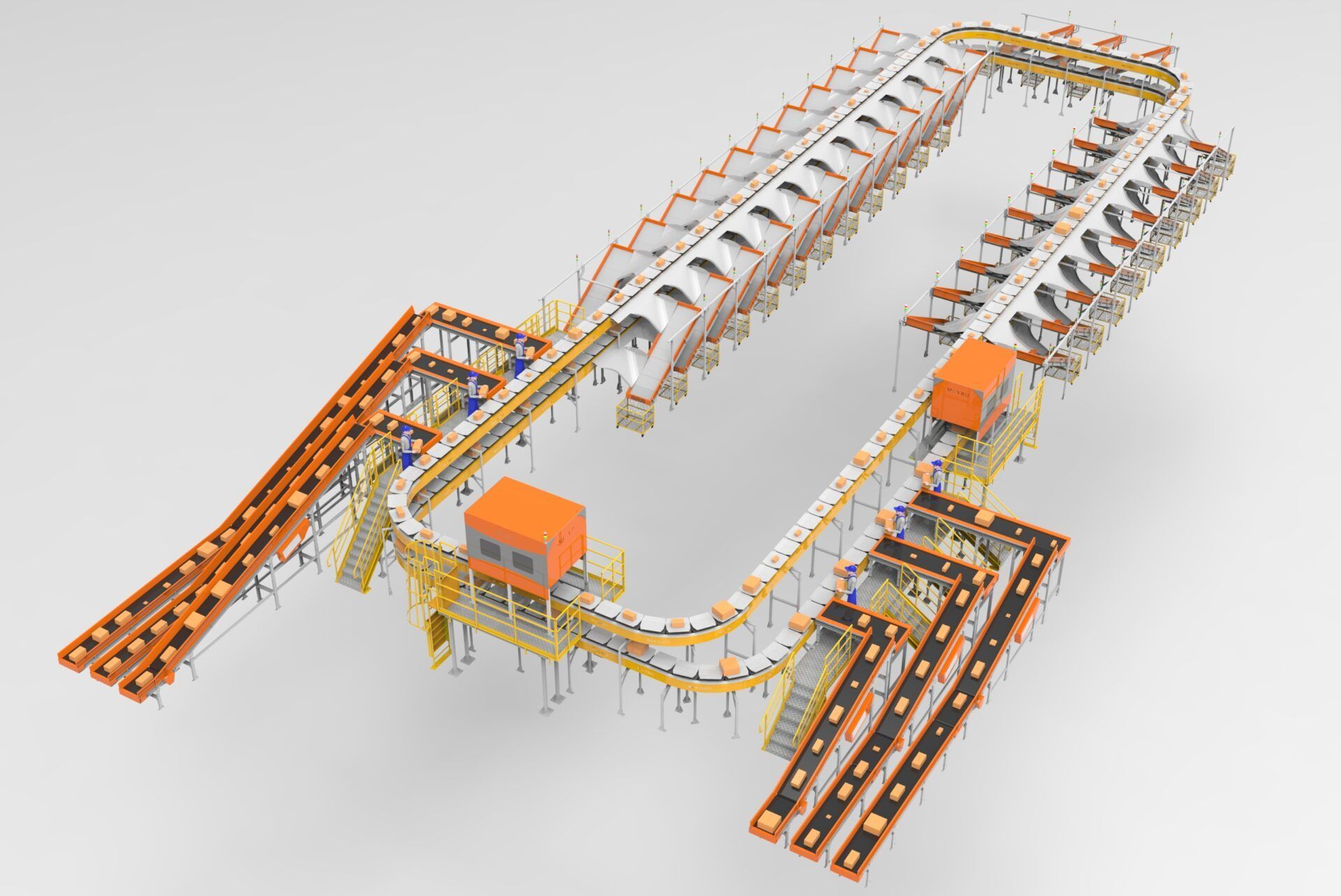

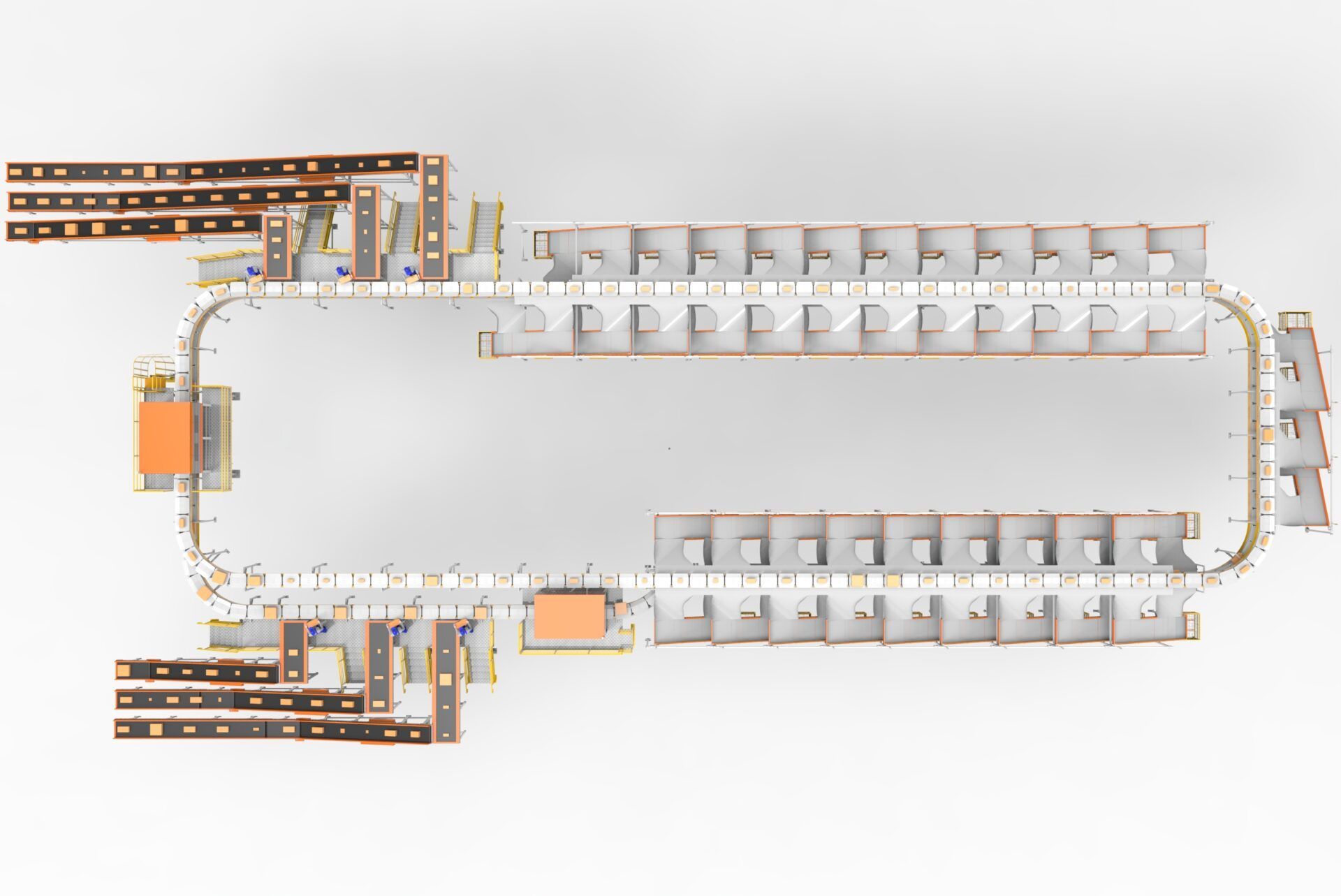

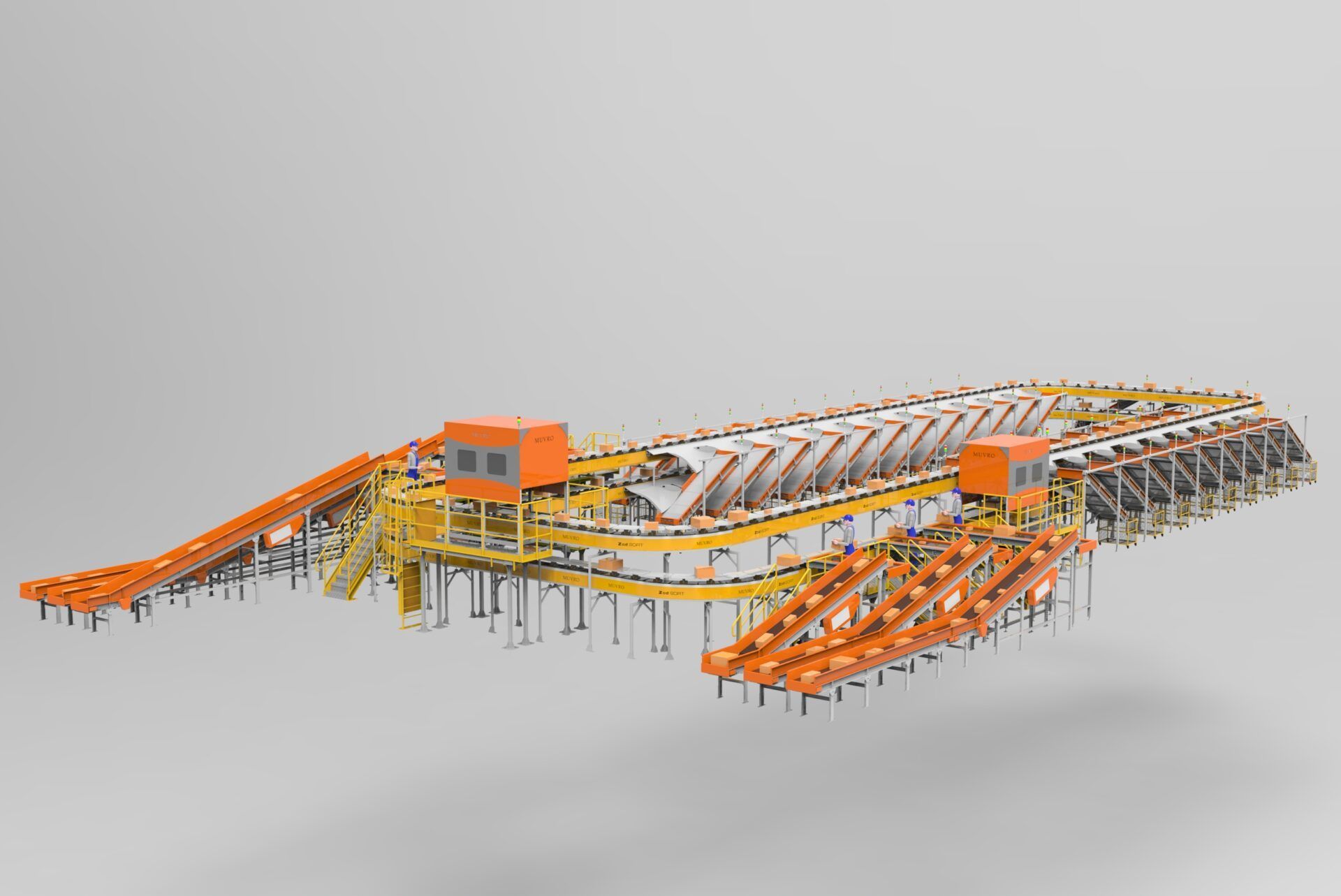

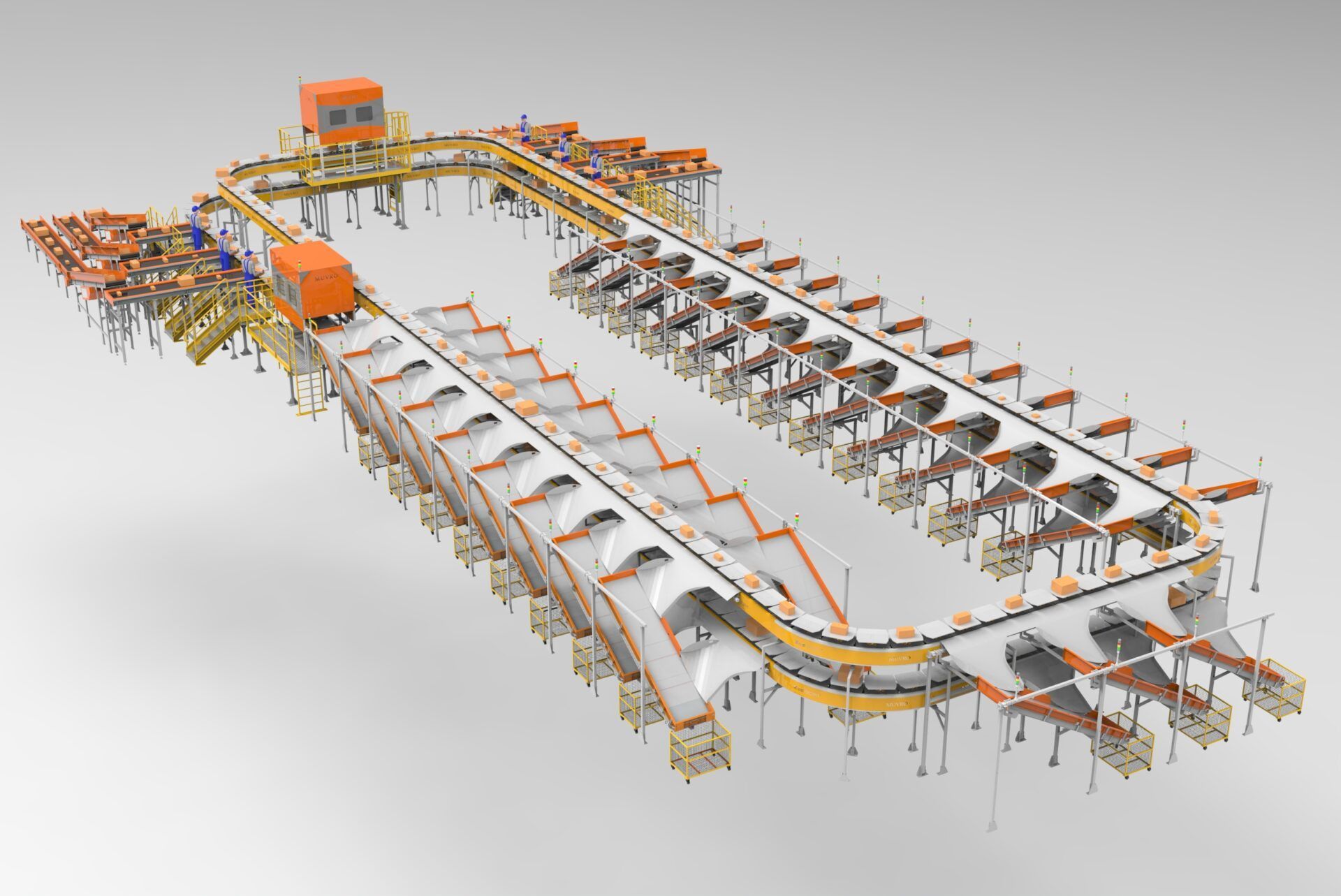

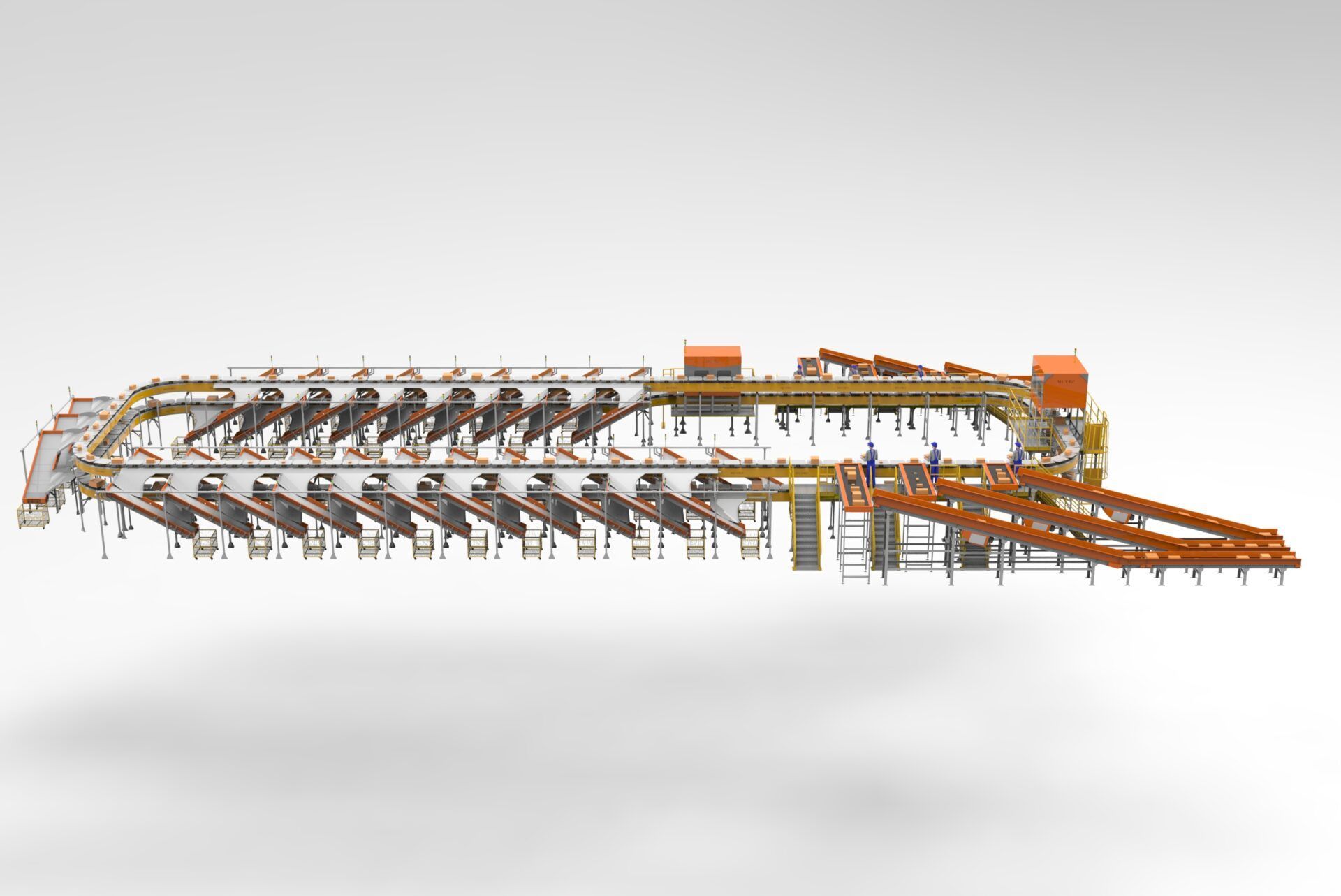

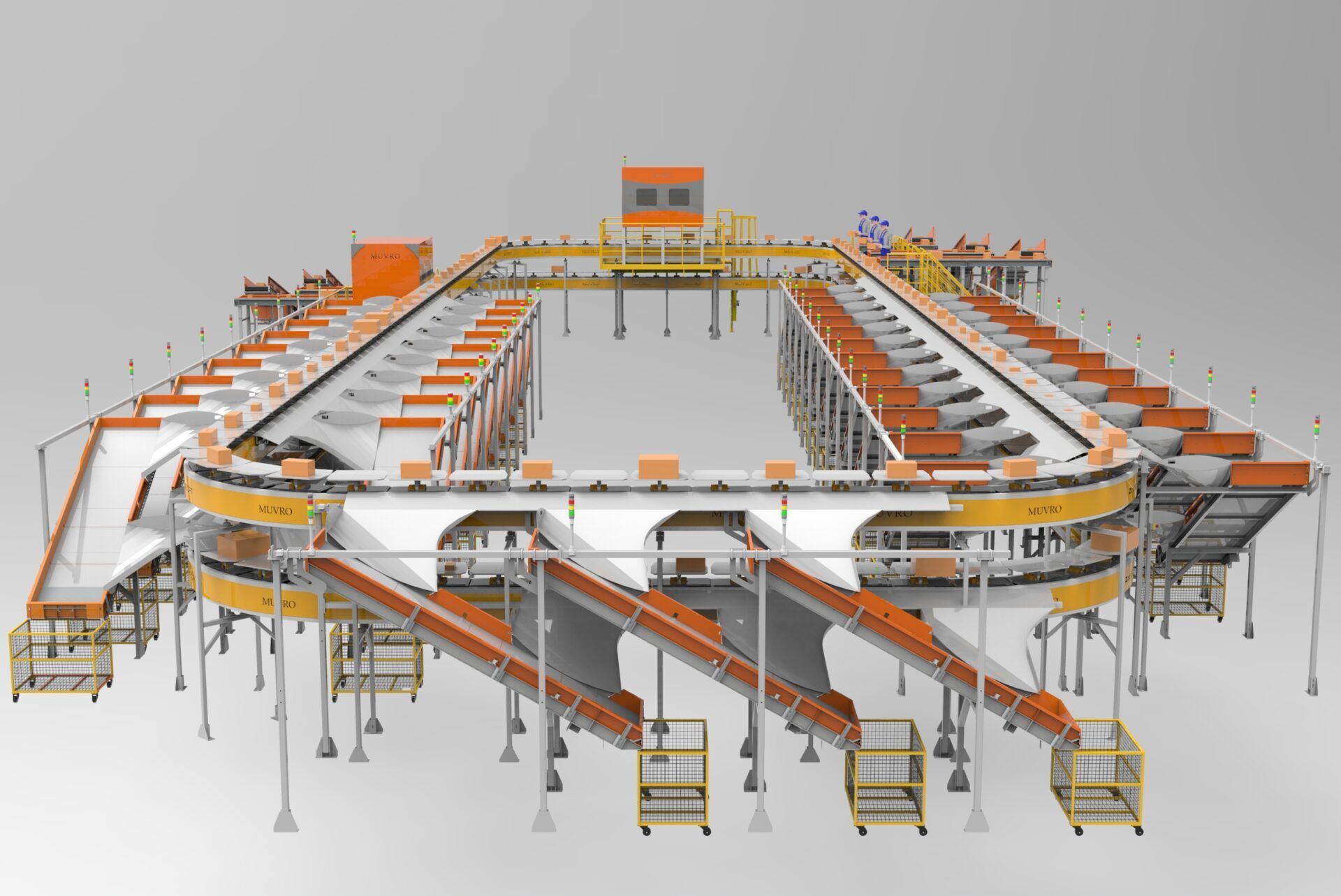

MUVRO’s Tilt Tray Sorter System is a high-speed, modular, and flexible solution for automating sorting in warehouses, distribution centres, and logistics hubs. Designed to handle polybags, totes, boxes, pouches, and envelopes, it ensures high-throughput, accurate sorting with low noise and minimal operating costs. The system features customizable layouts like Rectangular, Oval, Z-Type, U-Type, and C-Type, with an optional 2-tier configuration for...
Explore the advanced components that drive MUVRO’s Tilt Tray Sorter — a modular, high-speed system delivering precision sorting, minimal downtime, and maximum flexibility for modern logistics environments.

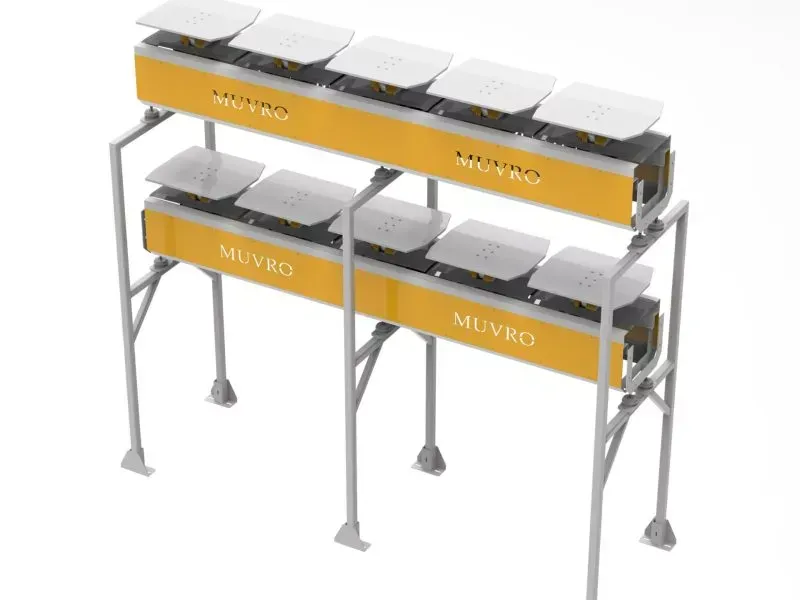

The loop track is the core structural element of the Tilt Tray Sorter System, designed to provide a stable and guided pathway for the continuous circulation of ...
The Cart is a key component of the Tilt Tray Sorter System, designed to carry individual tilt trays smoothly in a continuous loop, ensuring efficient and reliab...
The Tilting Tray System in the Tilt Tray Sorter is designed to provide efficient and precise product handling through its bidirectional discharge capability, al...

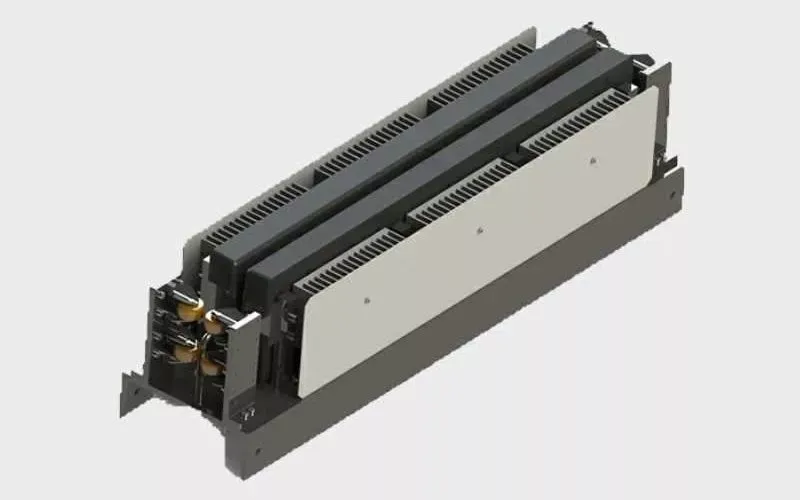

The Drive Unit powers the main loop with smooth acceleration and deceleration, ensuring consistent and reliable operation. Equipped with synchronous linear moto...

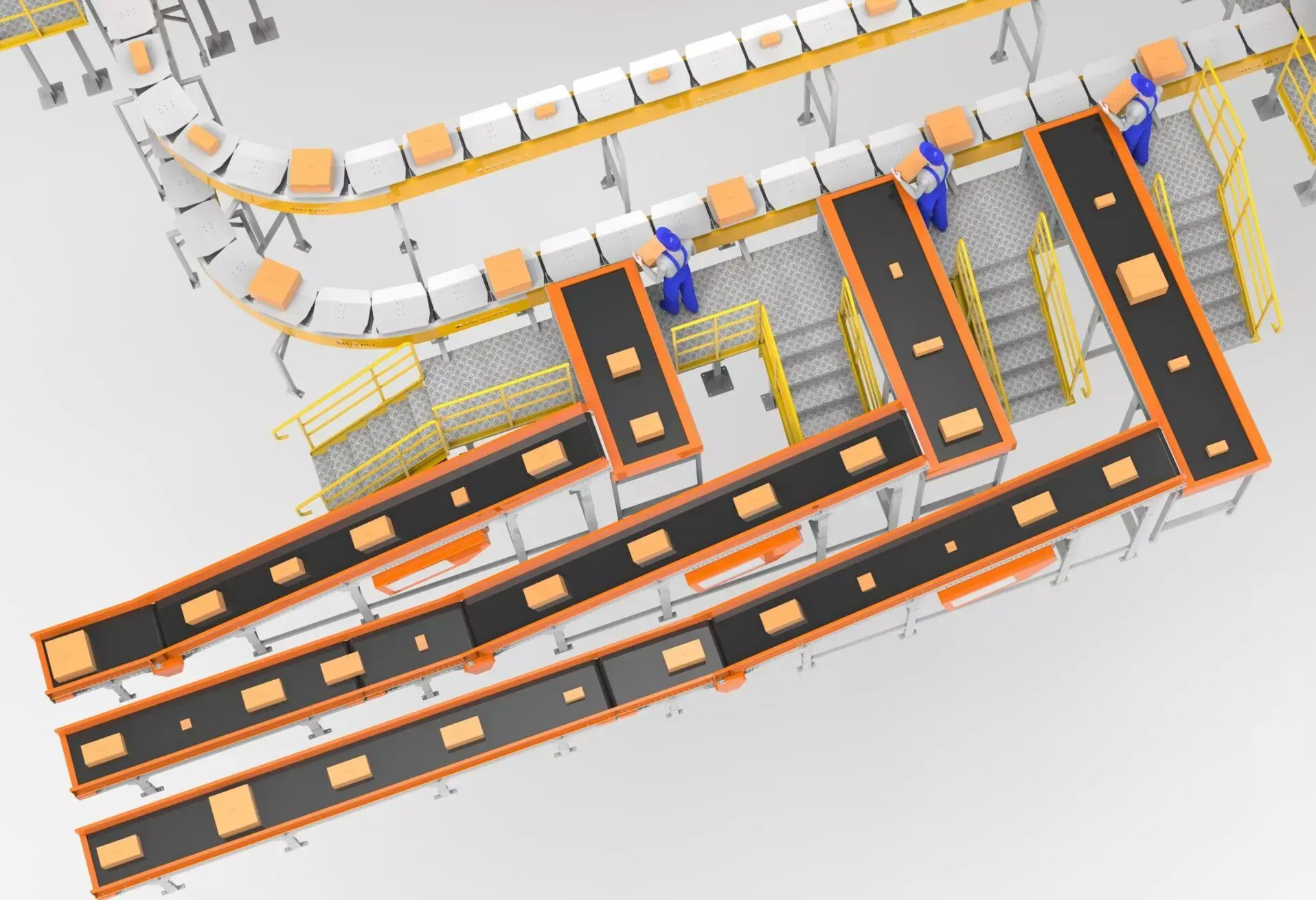

Manual Induction: Manual induction in the Tilt Tray Sorter allows operators to place items directly onto trays with precise timing and positioning, making it id...

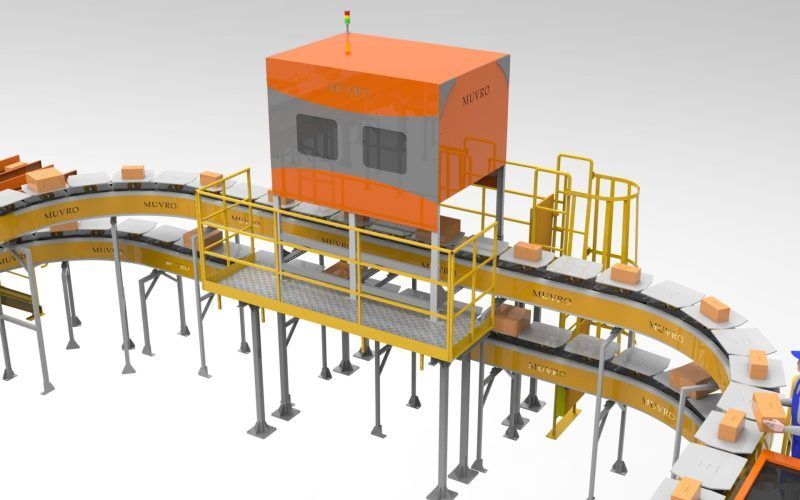

The Barcode Scanning System is a key part of the Cross Belt Sorter (CBS) System, positioned after the induct lines and parcel cantering unit. It captures accura...

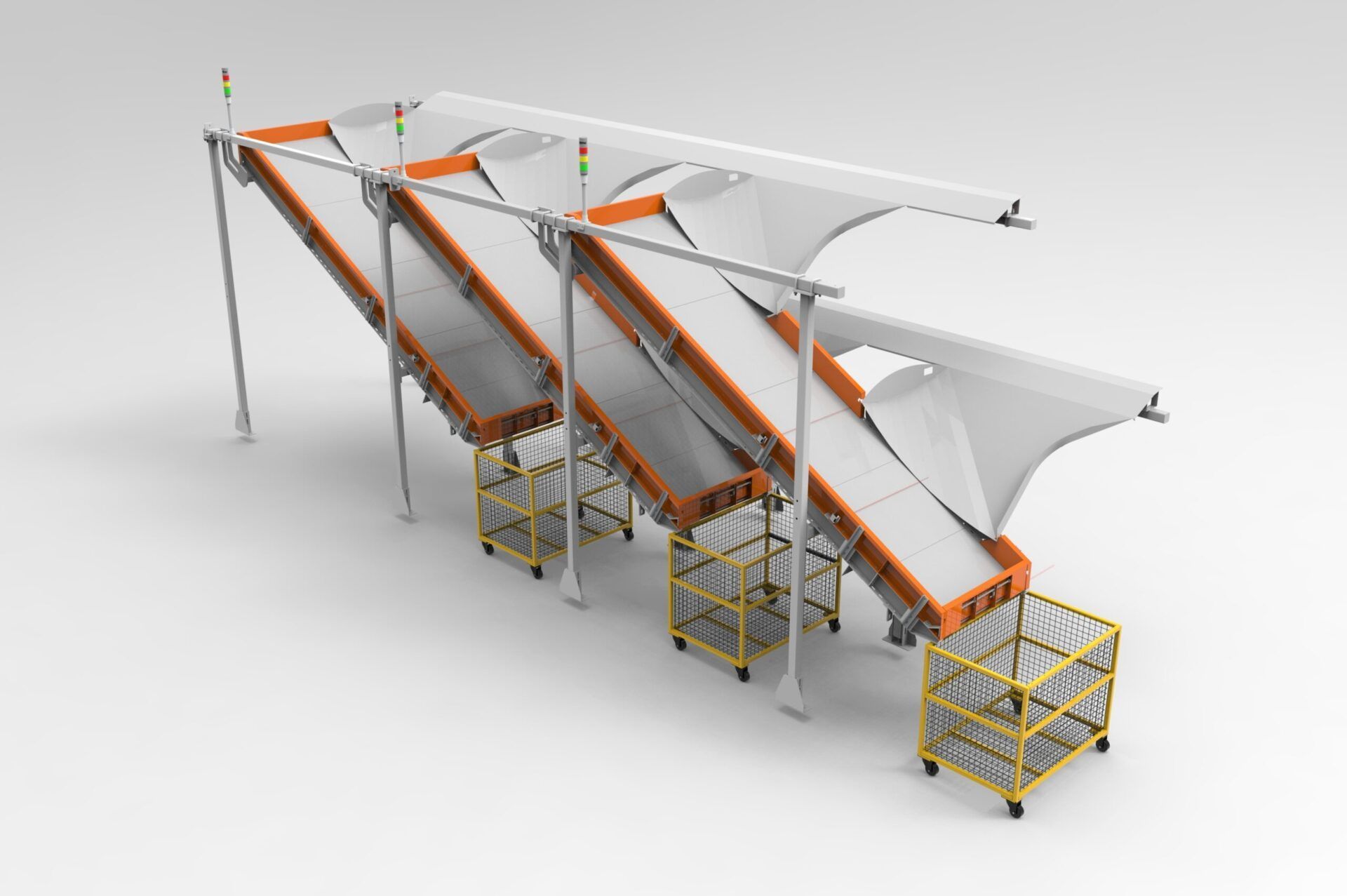

The Outfeed or Exit Chutes are the final stage of the Tilt Tray Sorter System, guiding sorted items from the trays to designated collection points such as baggi...
Sorts various items like polybags, cartons, totes, pouches, and envelopes up to 5 kg.
Doubles sorting capacity with a compact, dual-level design.
Offers customizable layouts with chutes on both sides for maximum space efficiency.
Maintains high throughput with virtual mode support during peak times.
Features fewer moving parts for easy servicing and high uptime.
Provides accurate item tracking and seamless system integration.
Minimal ground footprint via vertical deployment with future-ready design for dynamic operations and plug-and-play expandability.
ZedSort™ – The Tilt
Equipment Name
ZS1015
Model No
Muvro (India)
Make
Customizable as per requirements
Sorter Loop Length
1 Tier – 7200 pph & 2 Tier – 14400 pph
Mechanical Throughput
1.5 m/s (Max)
Sorter Loop Speed
Linear Induction / Linear Synchronous Motor
Sorter Loop Engine
< 72 dBA (excluding environment & platform)
Running Noise
Horizontal
Elevation Change
Min 2 Mtr
Turning Radius
580 × 500 mm (customizable)
Tray Size (L X W)
Wooden / Metallic, Bi-Directional
Tray Type
5 kg
Carrier Load Capacity
Mechanical Mechanism Actuated by Pneumatic System
Tilting Tray Engine
100 x 100 x 10 mm ( L x W x H )
Min Product Size
400 x 400 x 200 mm ( L x W x H )
Max Product Size (For Single Cart)
50 g to 5 Kg
Min Max Sortable Weight (For Single Cart)
Conveyorized back infeed / direct load on tray
Infeed Method
Inline with Tilt Tray Sorter
Conveyor Angle
Rough top Flat Belt
Merger conveyor
PVC Belt
Conveyor Type
Automatic
Gapper
Sensors Feedback
Shipment Positioning
AC Geared Motor / Servo Geared Motor
Drive Unit
Full and Half Sensors
Chute Status
Yes ( Optional)
Shipment Sorted Confirmation
Tower Lights
Chutes Indications
1 Tier / 2 Tier ( with Flap Gates Optional )
Chute Tier
Pick to Light / Put to Light ( Optional)
Secondary Sorting
Siemens Make
PLC
Siemens Win CC & WCS by Muvro
SCADA / WCS
Profinet / Ethernet
Communication Protocol
Encoder based (Real time positioning)
Positioning Feedback
3.5 Kw ~ 11 Kw* (Subject to loop Length)
Sorter Loop Engine Power
380 ~460 Vac ( 3Phase )
Rated Voltage
50~60 Hz
Rated Frequency
Top Side / 3 Side / 5 Side
Bar Code Reader ( BCR )
1D & 2D ( Cognex / Sick / Keyence )
Labels Scanner
Sick
Profiler / Imager
Mettler Toledo * ( as per requirement )
Weighing system
(-)10 °C to 40 °C (humidity 10-95% non-condensing)
Ambient temperature range
