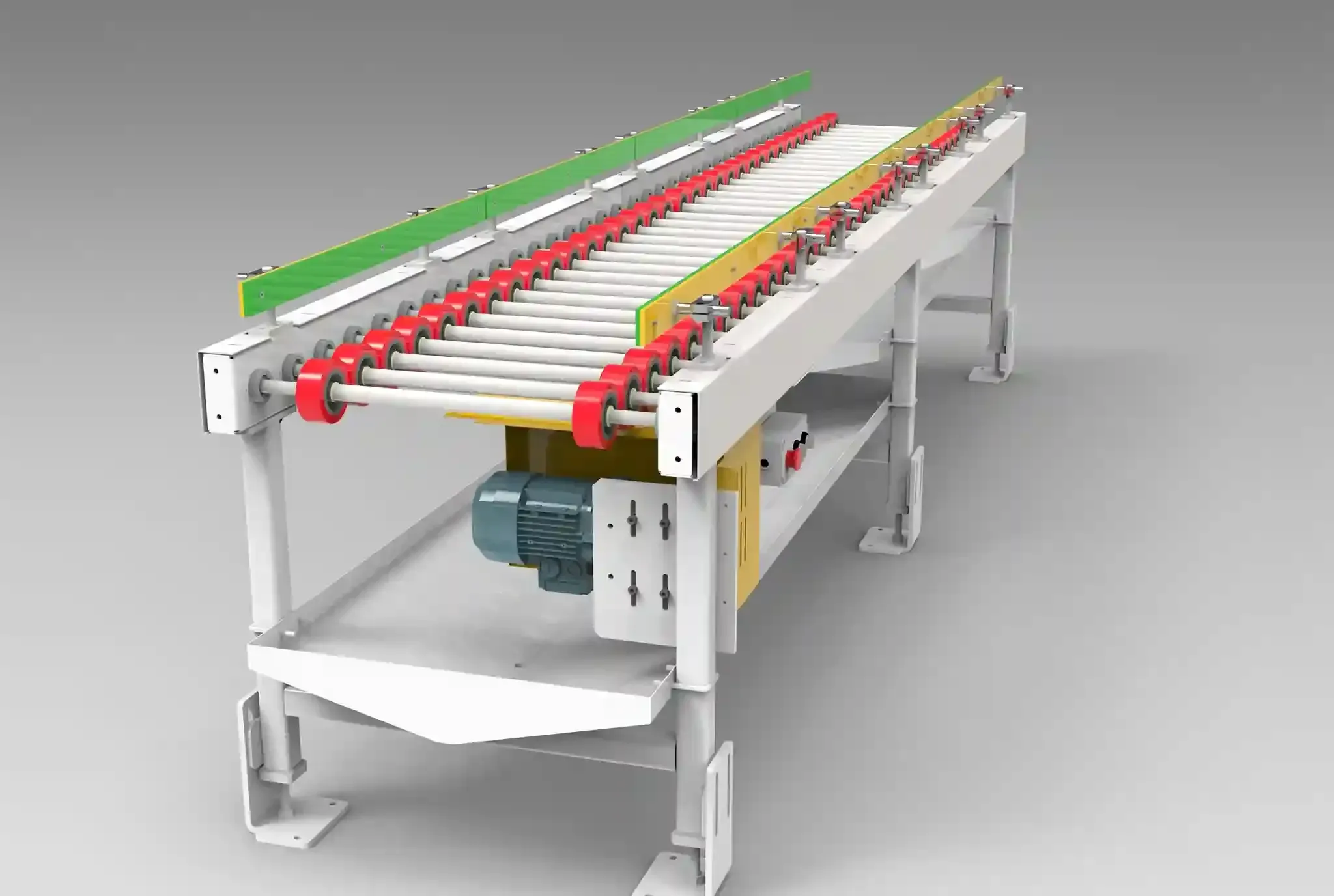

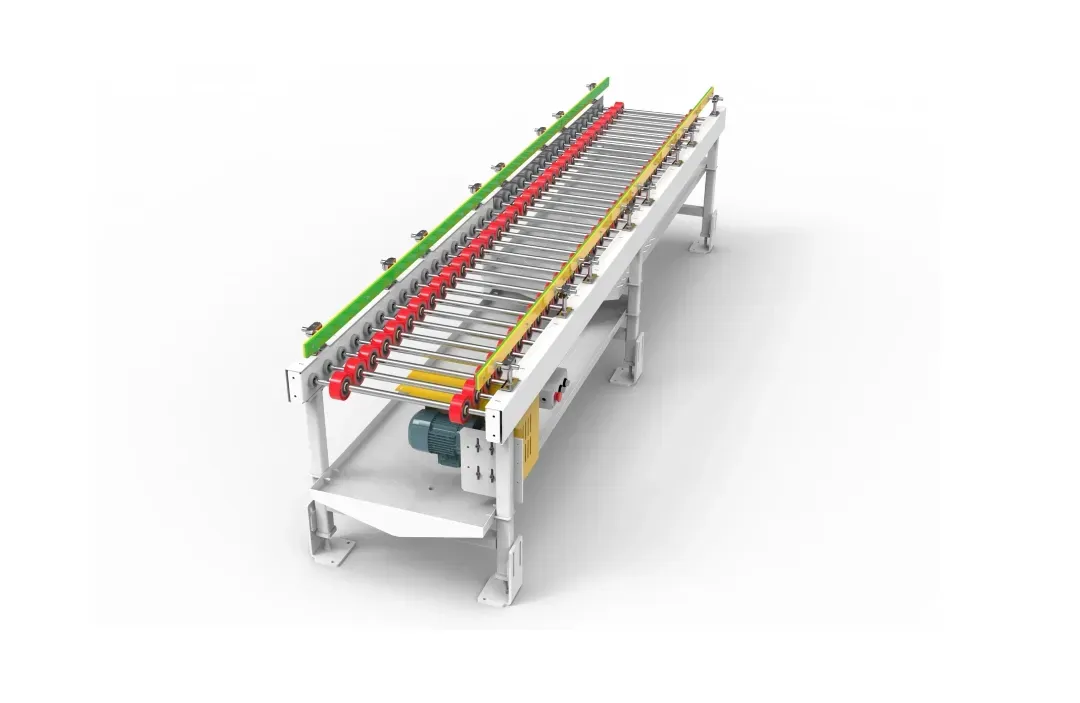

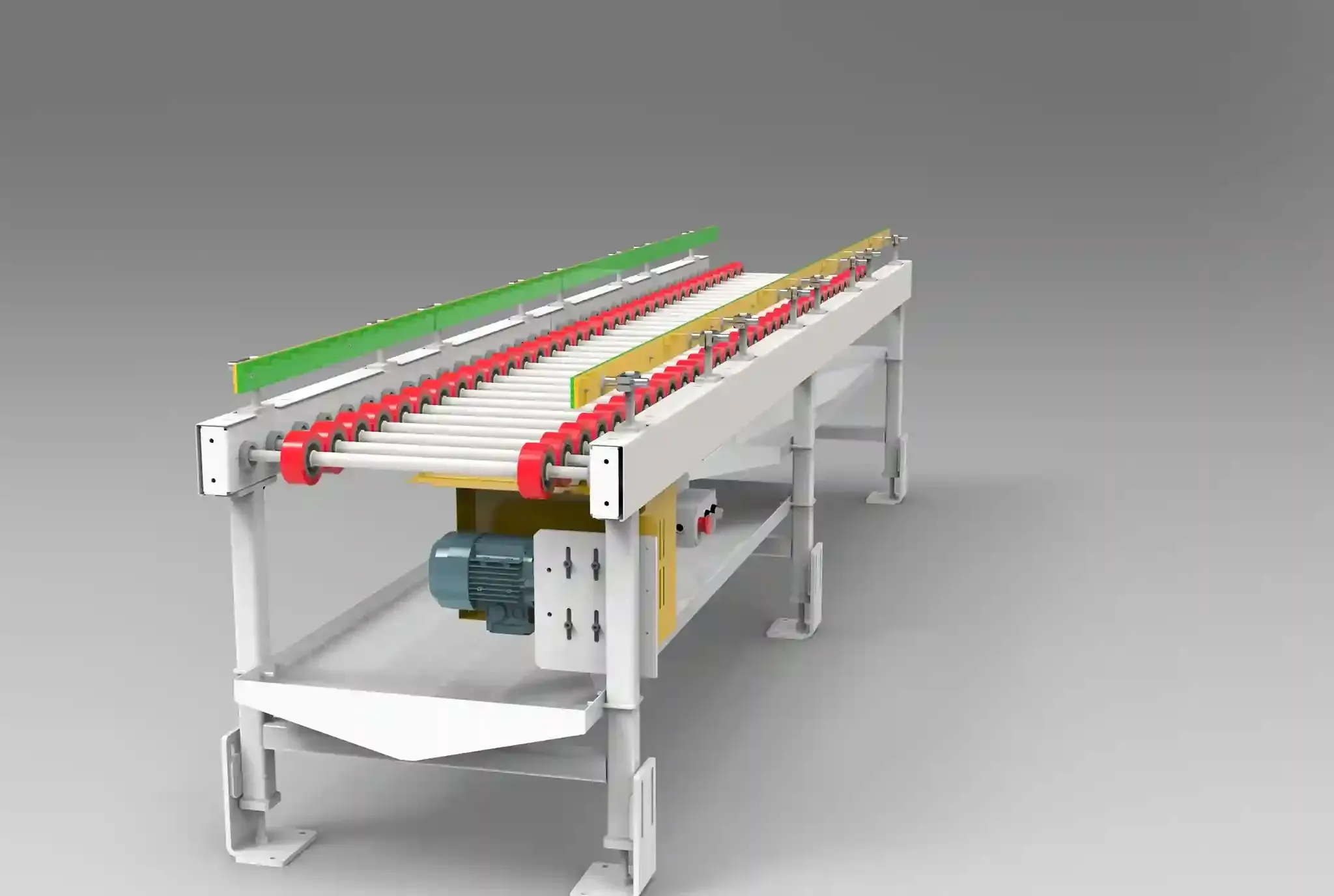

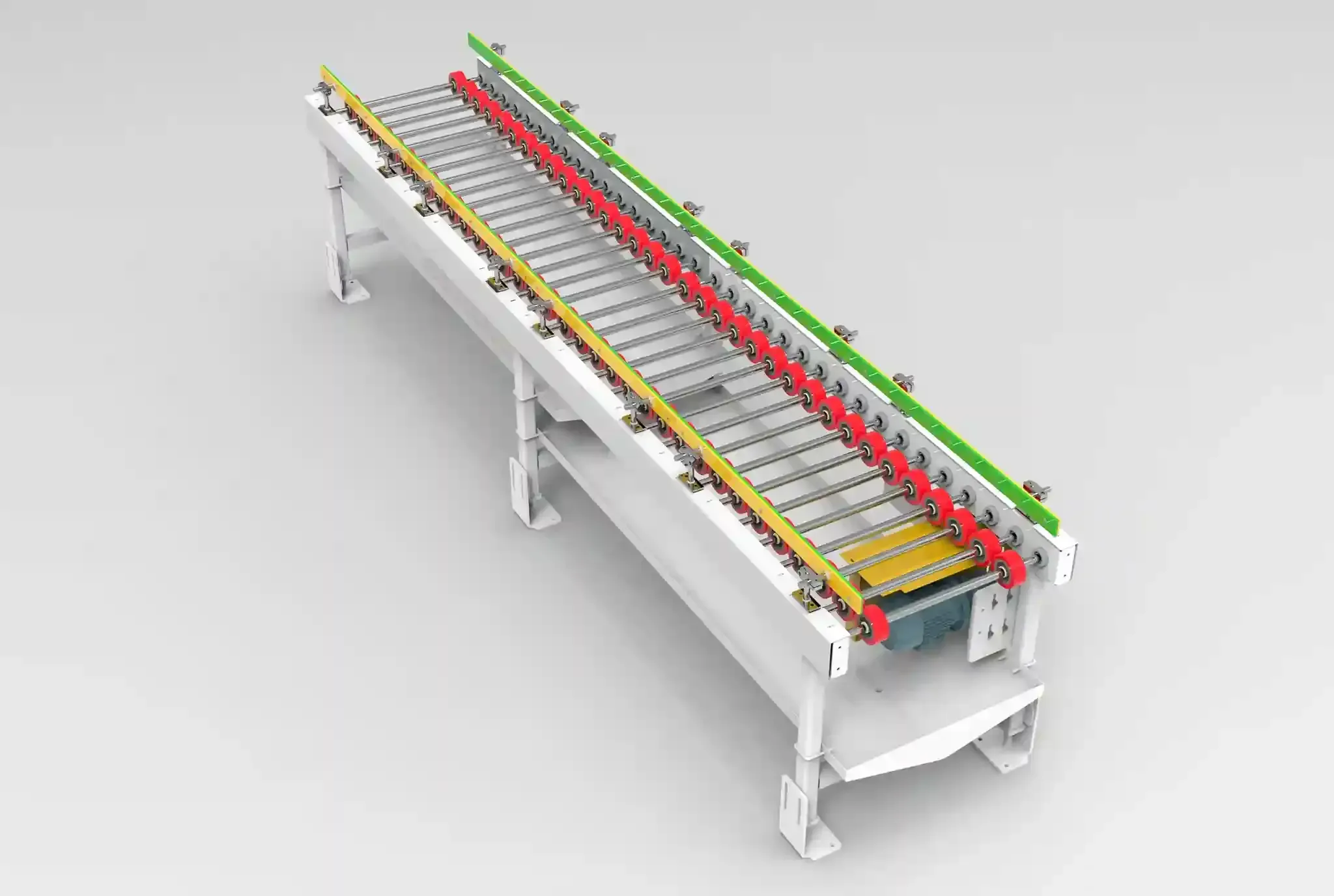

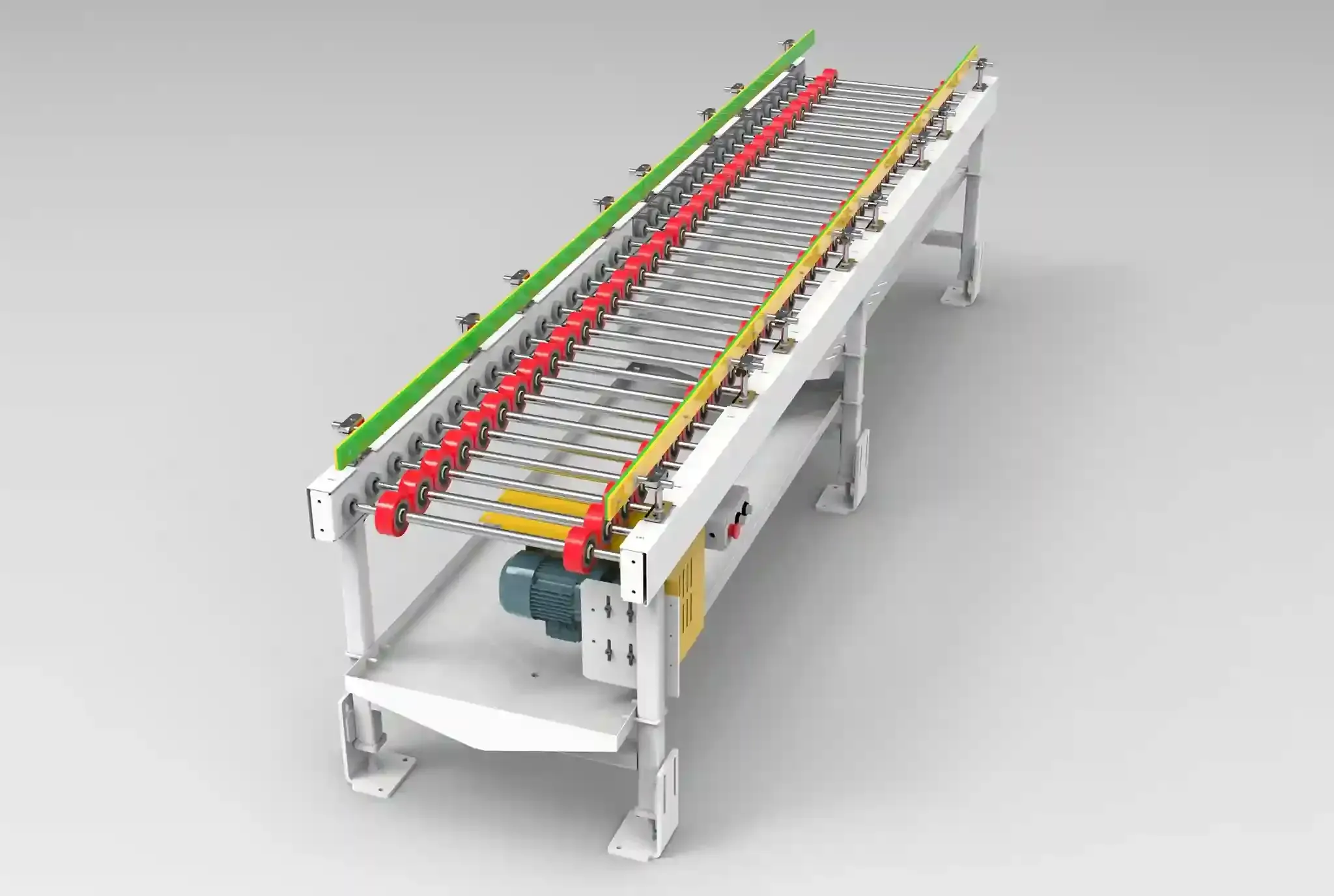

The Stub Roller Conveyor is a specialized material handling solution designed for the efficient transportation of irregularly shaped items and customized pallets. It features short, closely spaced rollers positioned along both sides of the conveyor frame, creating a distinct central gap. Unlike conventional roller conveyors, these stub rollers do not extend across the entire conveyor width, allowing unique access to the bottom side of transported...
Provides partial roller coverage, with short rollers strategically placed along the conveyor sides to ensure smooth transportation while maintaining a central gap for specialized handling
The central gap design allows for bottom-side access, enabling fitment, inspection, and lifting without disrupting material flow.
Boasts a high load capacity, capable of supporting heavy loads and complex-shaped items while ensuring operational stability
The conveyor's customizable configuration includes varying roller diameters, pitch, and frame sizes to meet specific operational requirements.
Its durable construction, seamless integration with existing systems, and low-maintenance design ensure long-lasting performance.
efficiently transport engine components and assemblies with non-uniform surfaces or protrusions.
They are ideal for moving parts that require bottom-side fitment, lifting, or inspection
Facilitates easy access for scanning, labeling, and sorting units in packaging operations
Engineered for handling irregular and heavy components with customizable roller spacing, high load capacity, modular construction, and PLC-controlled automation for efficient industrial material handling applications.
Modular
Conveyor Construction
30 mm to 110 mm
Stub Roller Diameter
15 mm to 35 mm
Roller Shaft Diameter
50 mm to 150 mm
Stub Roller Length
75 mm to 150 mm
Roller Pitch
Mild Steel (zinc-plated), Stainless Steel, PU, or PVC coated
Roller Material
Sprocket, Timing Pulley
Roller Drive Head
1000 mm to 30000 mm (Modular and extendable)
Conveyor Length
Max 3 Mtr
Conveyor Module Max Length
500 mm to 1500 mm
Conveyor Width
500 mm to 1200 mm (Adjustable ±100 mm)
Conveyor Height
Fixed or adjustable guide rails
Side Guides
50 mm, 150 mm
Side Guide Height
Up to 1500 kg/m
Conveying Capacity
10 to 60 meters per minute
Conveyor Speed
AC Geared Motor
Conveyor Drive
<70 dBA
Running Noise
(-)10°C to 40°C (humidity 10–95% non-condensing)
Ambient Temperature Range
By PLC
Sequence Control
By VFD
Speed Control
HMI (Optional)
Man-Machine Interface
Optional
SCADA / WCS
Profinet / Ethernet / Modbus
Communication Protocol
Profinet / Ethernet / Modbus
Real-Time Communication
3 Phase (360 ~ 440 VAC)
Main Power Supply to Control Box
50 ~ 60 Hz
Rated Frequency
Safety Covers, Photo Sensors, Cable Tray, Bottom Cover
Conveyor Accessories
Irregularly shaped items, customized pallets, trays
Conveying Products
High-quality CRC steel sheet
Conveyor Frame
High-quality CRC steel sheet
Conveyor Legs
Shot Blasted and Powder Coated
Painting
Gray RAL-7016, Orange Glossy HGS 2302
RAL Colour
CE, ISO 9001, OSHA, UL
Certifications
