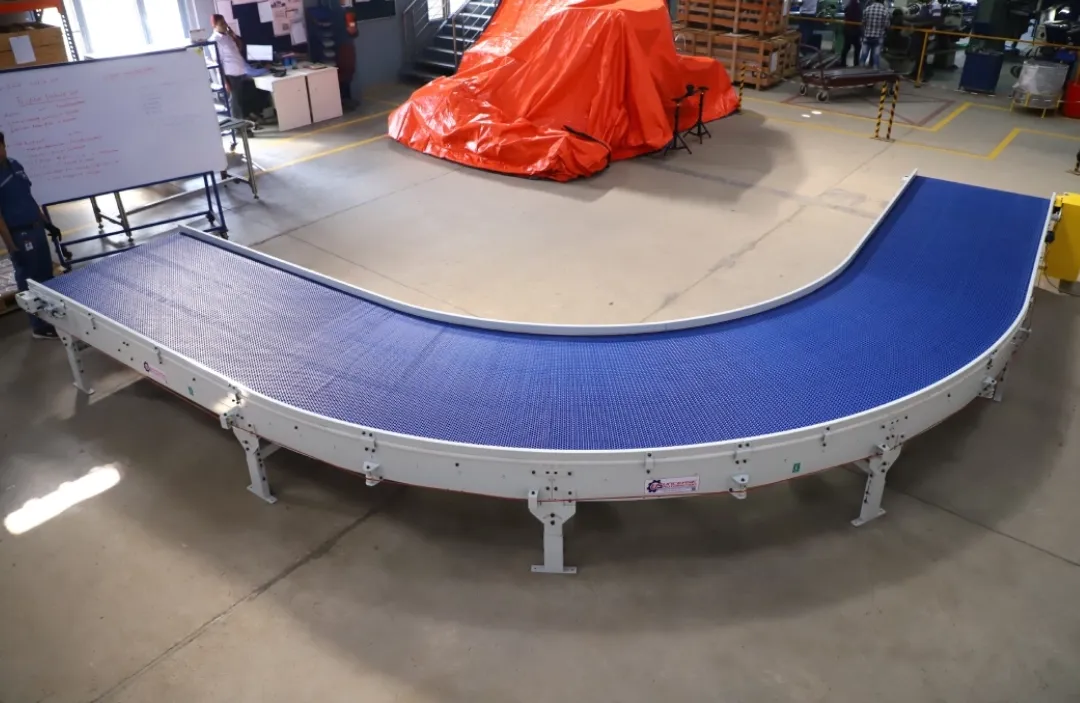

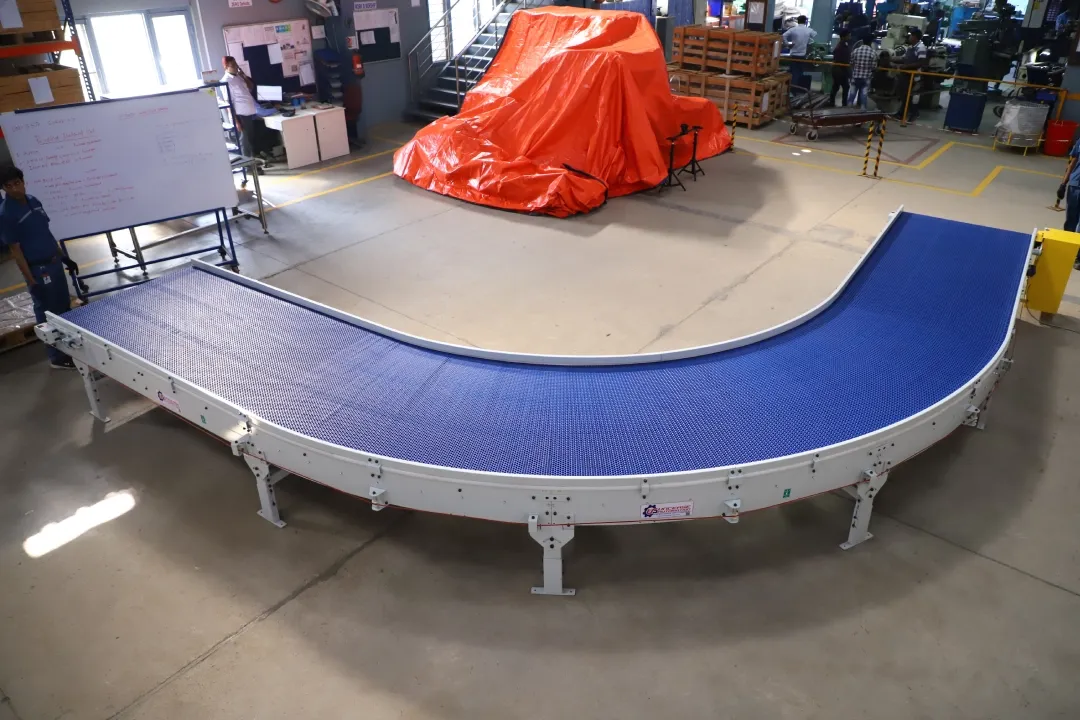

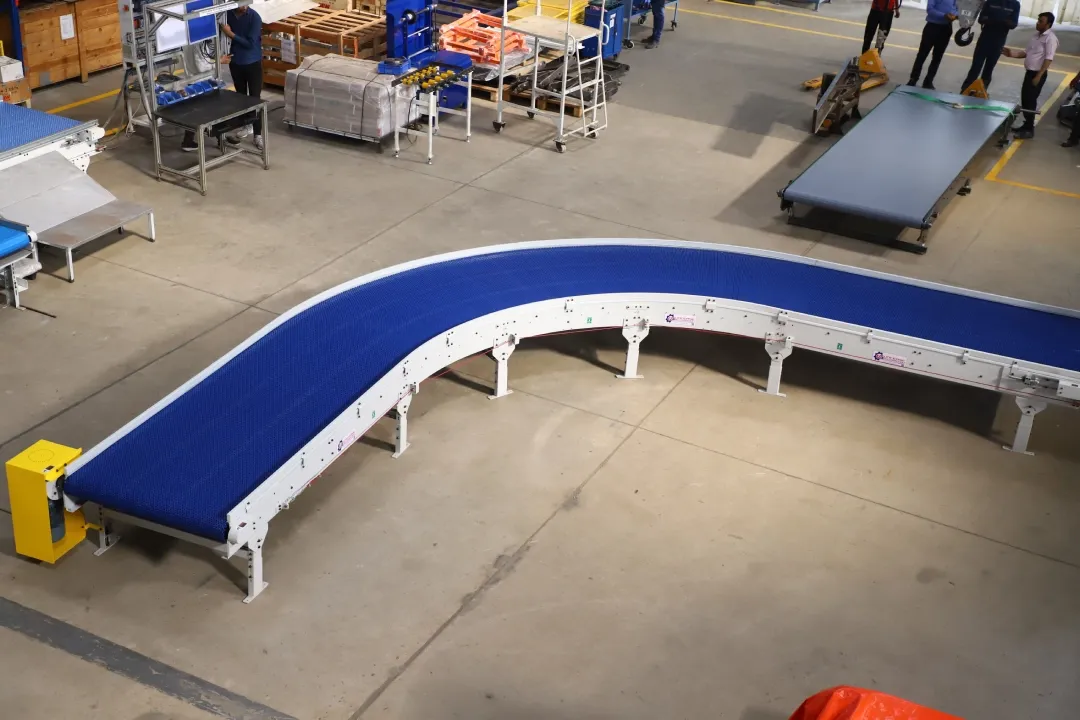

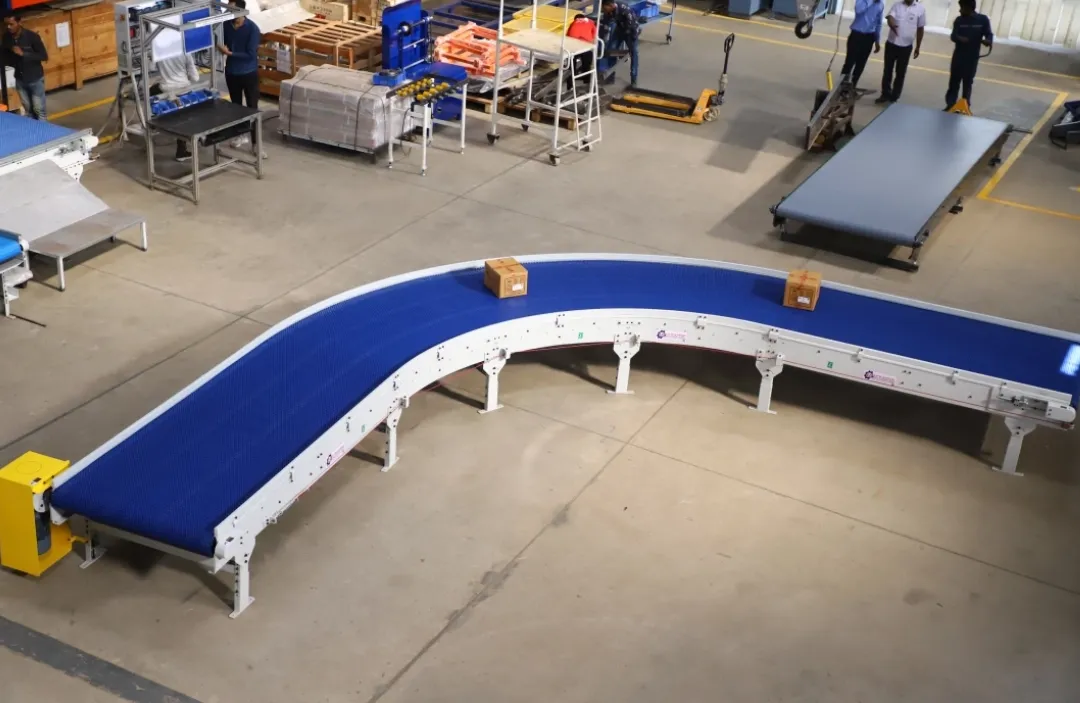

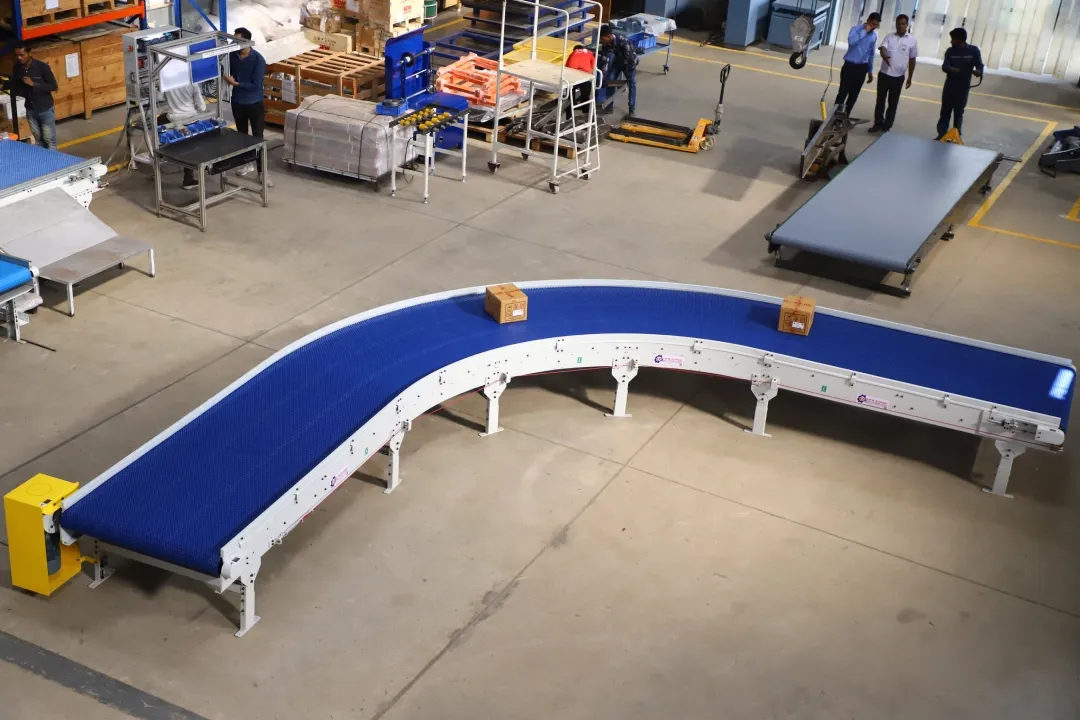

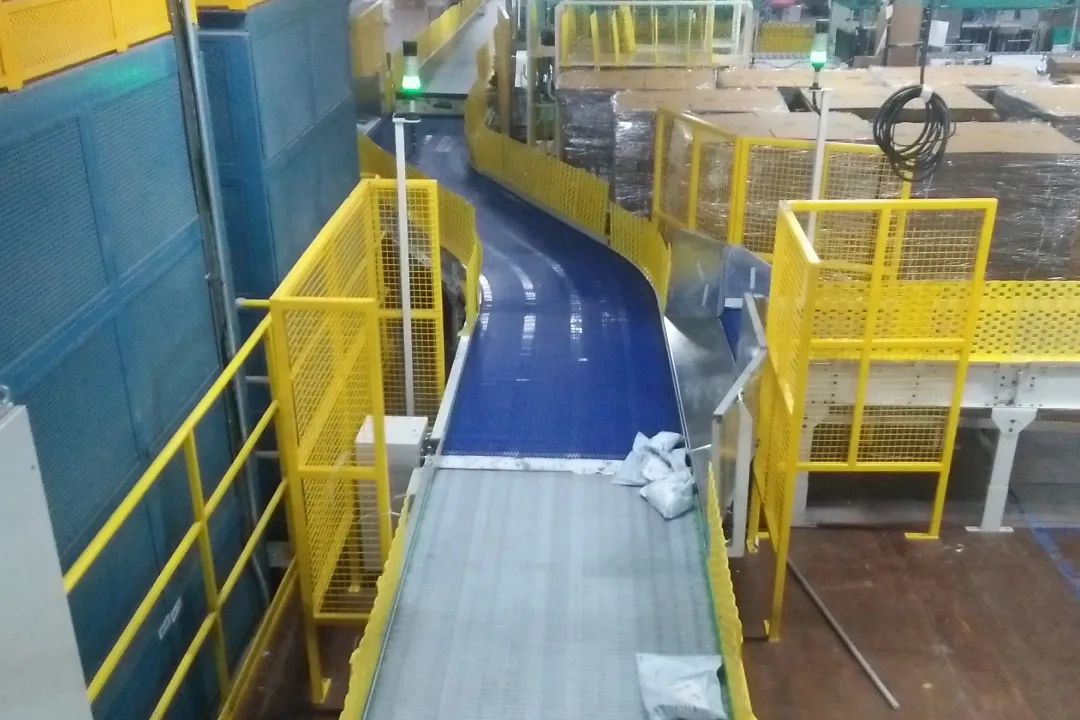

Muvro’s Side Flexing Curve Conveyor is engineered for smooth directional changes in material handling systems, especially where long or delicate items must travel through wide-radius curves. Designed for packaging lines, FMCG handling, warehousing, and manufacturing, it enables stable product flow without compromising integrity. The system supports curve angles from 25° to 180° and requires short tangent sections before and after each curve to en...
Enables lateral articulation for precise curve routing with tangent transition zones.
Accommodates curves up to 1860 mm radius based on belt width.

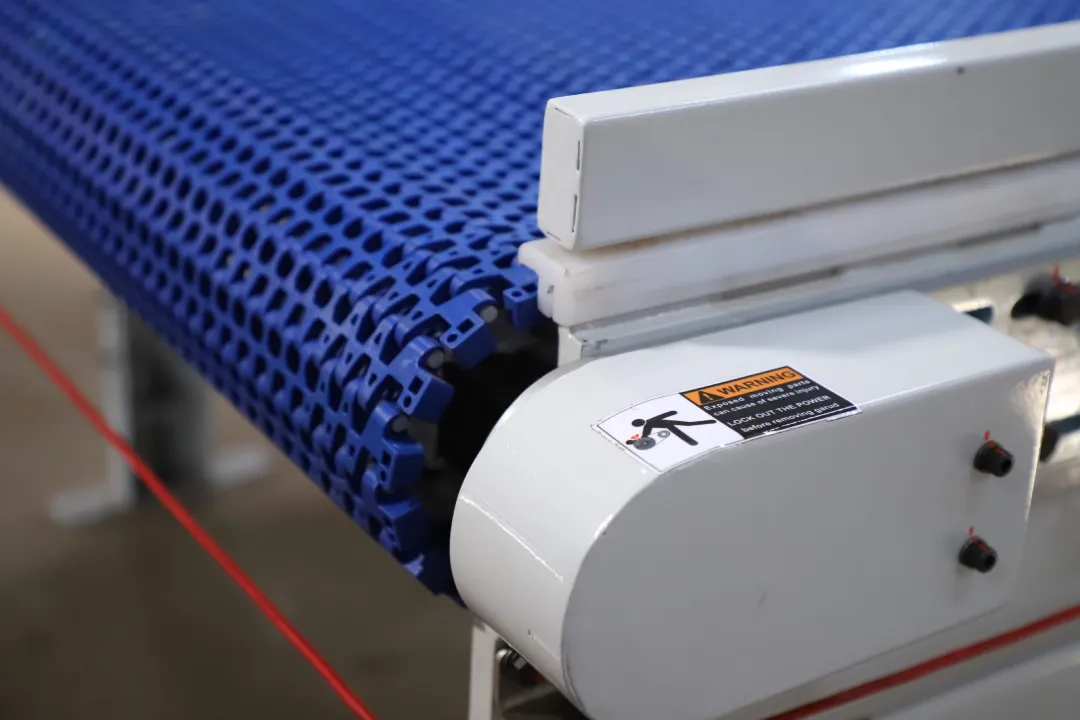

1-inch pitch belt for flexibility, easy replacement, and high load capacity.

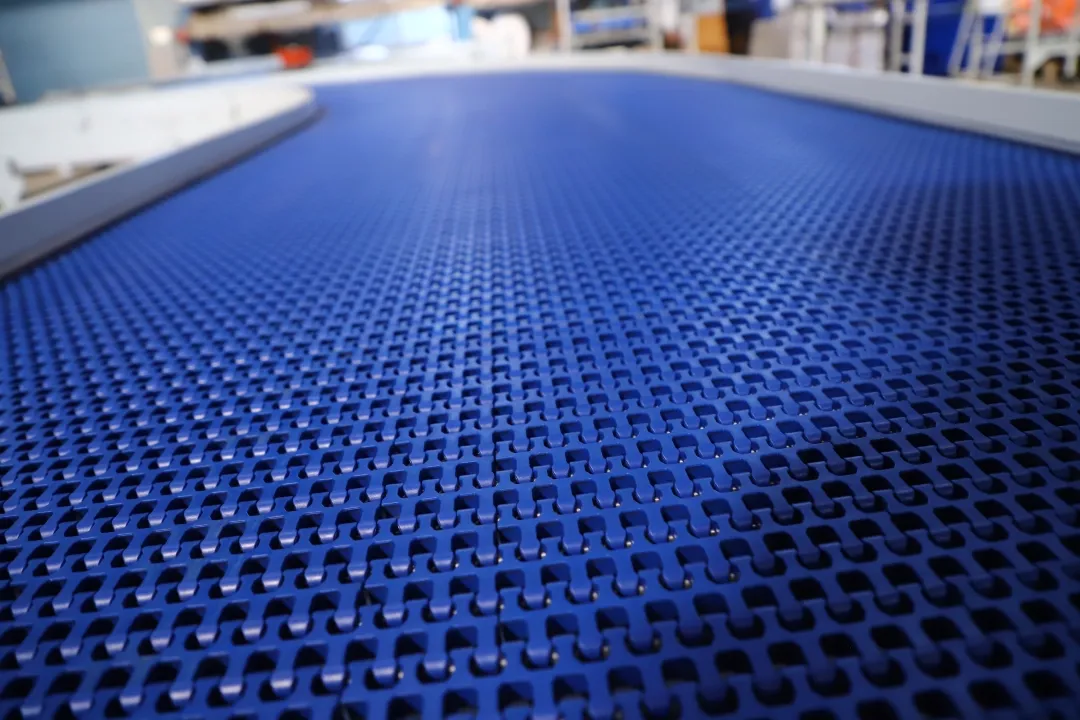

Flat, uniform surface ensures smooth movement through curves.
Controlled speed and optimized layout for seamless straight-to-curve transitions.
IE3-rated motors with VFDs ensure efficient and controlled operation.
Transport of boxed goods, trays, and dry packaged items
Handling of bottles, sachets, and cartons
Conveying cartons between racking zones
Routing components around equipment or inspection areas
Engineered for smooth curved transfers, optimized airflow, hygienic material options, adjustable speed control, and reliable low-noise performance across food-grade and industrial environments.
Modular Belt – Side Flexing Curve
Belt Type
25.4 mm (1")
Belt Pitch
11 mm
Belt Thickness
1000 mm ~ 2000 mm
Inner Curve Radius
45°, 90°, 135°, 180°
Curve Angles Supported
600 mm to 1200 mm
Belt Widths
Increments of 76.2 mm (3")
Standard Width Modules
600 – 2400 mm, height adjustable (±50 mm)
Frame Height
10 – 60 m/min
Speed Range
15 – 75 kg/m
Load Capacity
POM (high stiffness, low friction); PP (food-grade, chemical resistance)
Material Options
Flat top, perforated (for drainage), or friction top (for inclines)
Surface Options
36%
Open Area
Approx. 50 mm
Backflex Radius
White (food-grade), Blue (detection), Black (anti-static)
Color Options
IE3 Helical Gear Motor (SEW / Nord / Bonfiglioli)
Drive Motor
MS Powder Coated or SS304 (GMP-compliant environments)
Support Structure
UHMW adjustable / Stainless Steel options
Side Guides
Gray RAL-7016, Orange Glossy HGS 2302
RAL Colour
PP 100°C, POM: -40°C to 90°C, PE: -50°C to 65°C
Operating Temperature Range
<70 dB
Noise Level
Emergency stop, side covers, safety guards, overload protection
Safety Features
CE, FDA, ISO 9001, OSHA, UL
Compliance Standards
