Radio Shuttle is a semi-automated storage and retrieval system that allows for a maximum use of warehouse space. Easily managed with a remote control, the Radioshuttle pallet shuttle is loaded into storage loads and executes orders to load or unload pallets into a lane. The versatility and efficiency of NaviGO ASRS shuttle technology make it a valuable asset for companies looking to streamline their warehouse operations and improve overall produ...
FIFO or LIFO product flow for efficient storage and retrieval.
Deep lane storage for large, pelletization and de-palletization.
Store Finished, raw and unfinished goods for inventory management or manufacturing.
Store finished goods for distribution and order sequencing.
Warehouse Automated cold Storage in coolers or freezers environments.
ASRS shuttle technology can help e-commerce companies manage their high-volume storage efficiently, reduce order processing times, and increase order accuracy.
Automotive manufacturers and suppliers can benefit from deep shuttle technology to store and retrieve various parts and components needed for assembly processes.
Automated Storage and Retrieval Systems with Deep Storage Shuttles have become vital in the pharmaceutical industry.
Retailers can use deep shuttle technology to optimize their warehouse space, Smartly store and retrieving pallet, and enhance order picking processes.

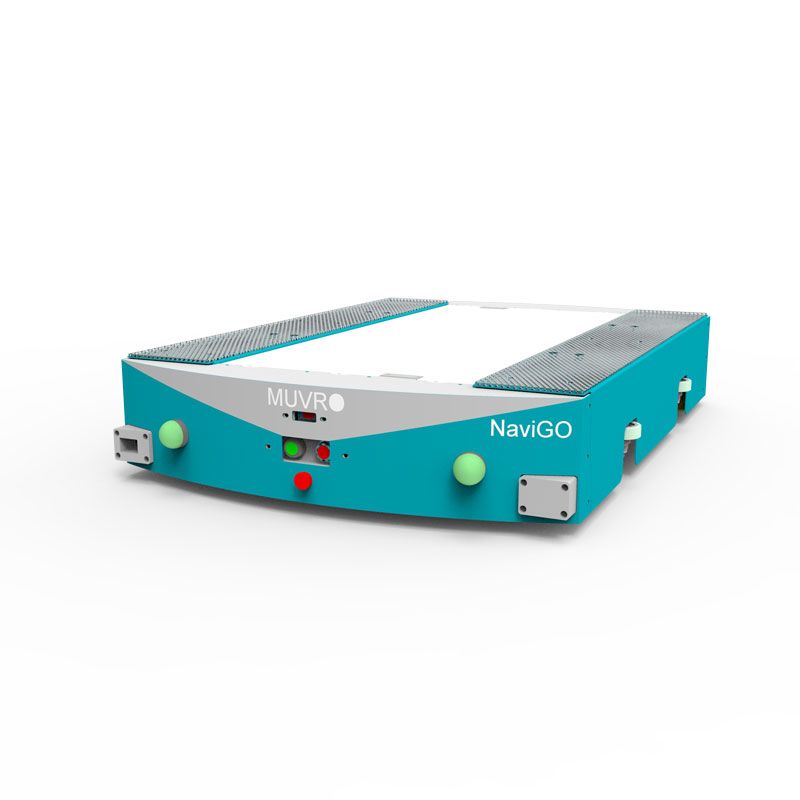

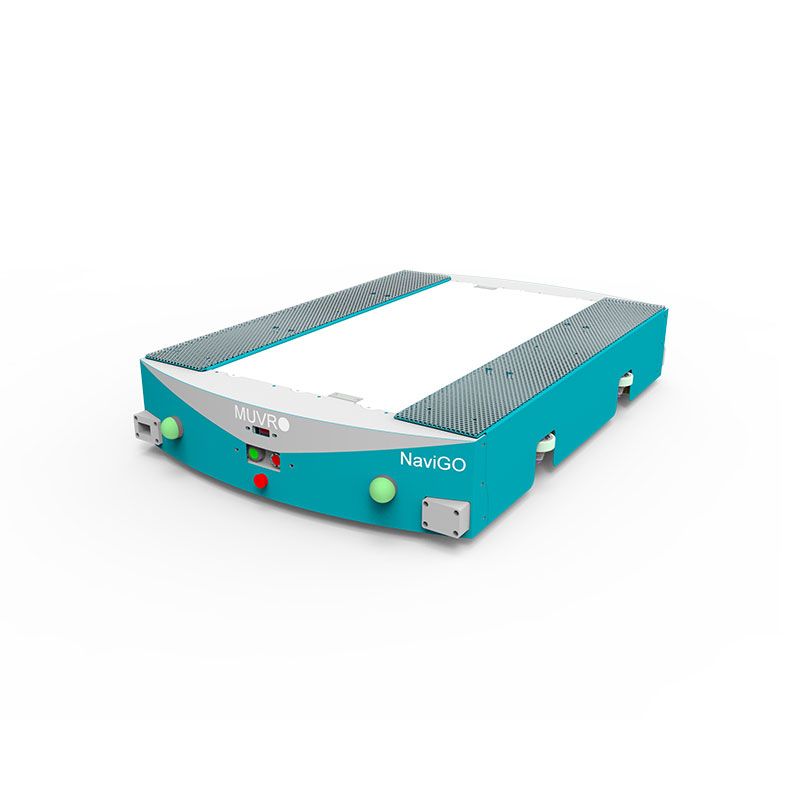

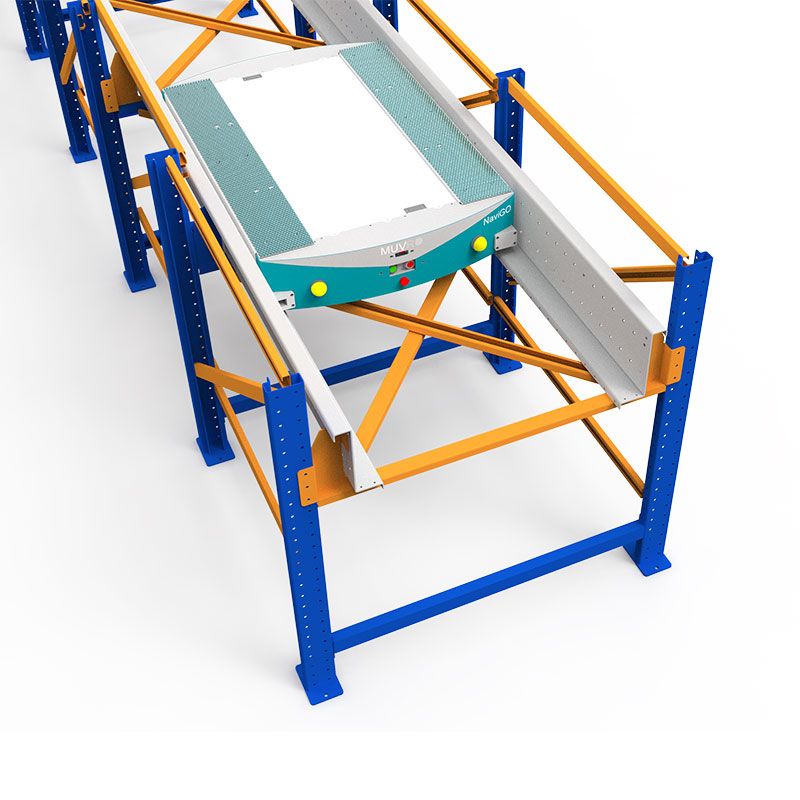

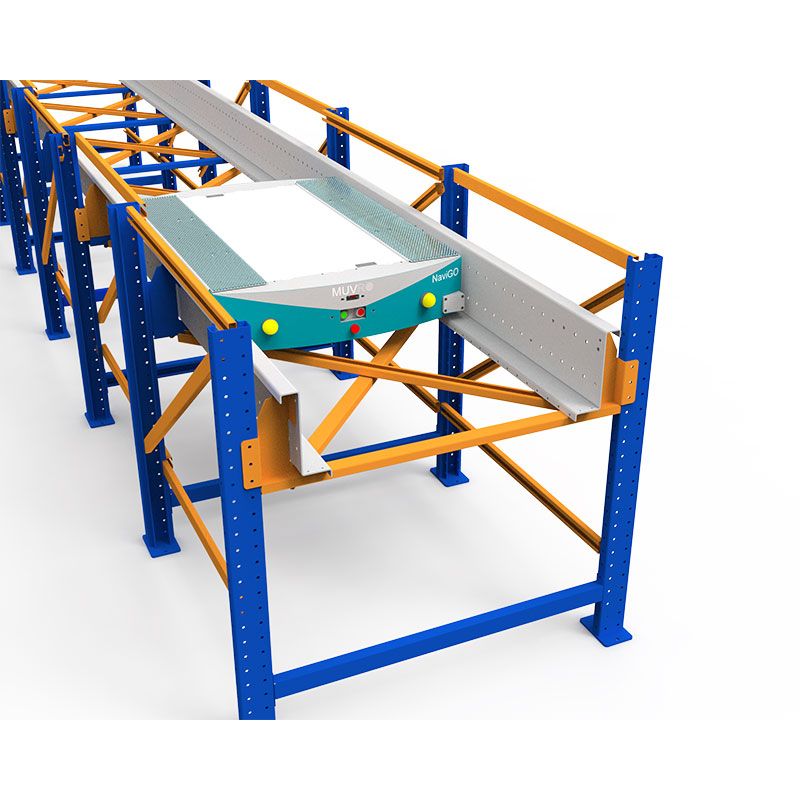

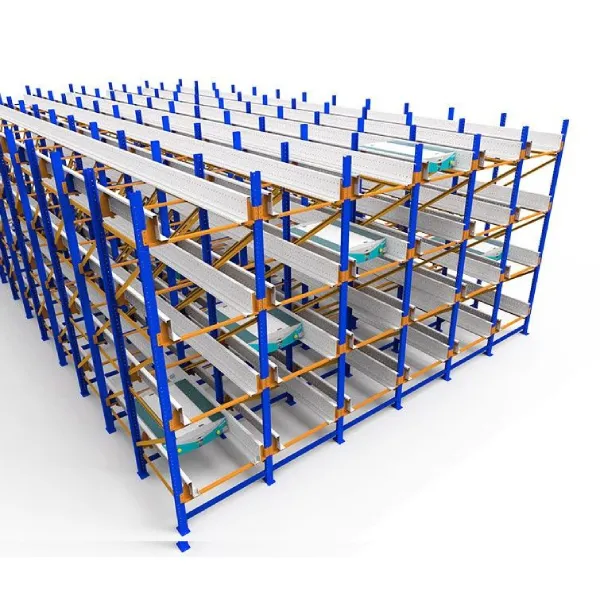

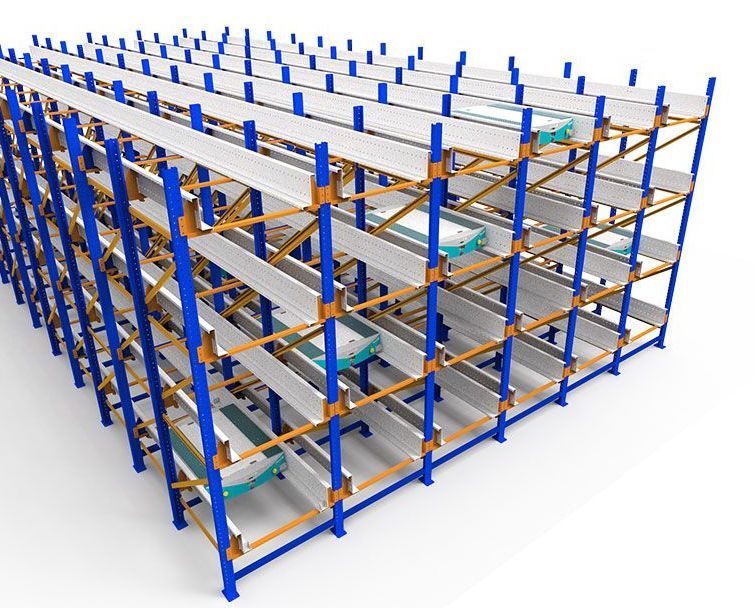

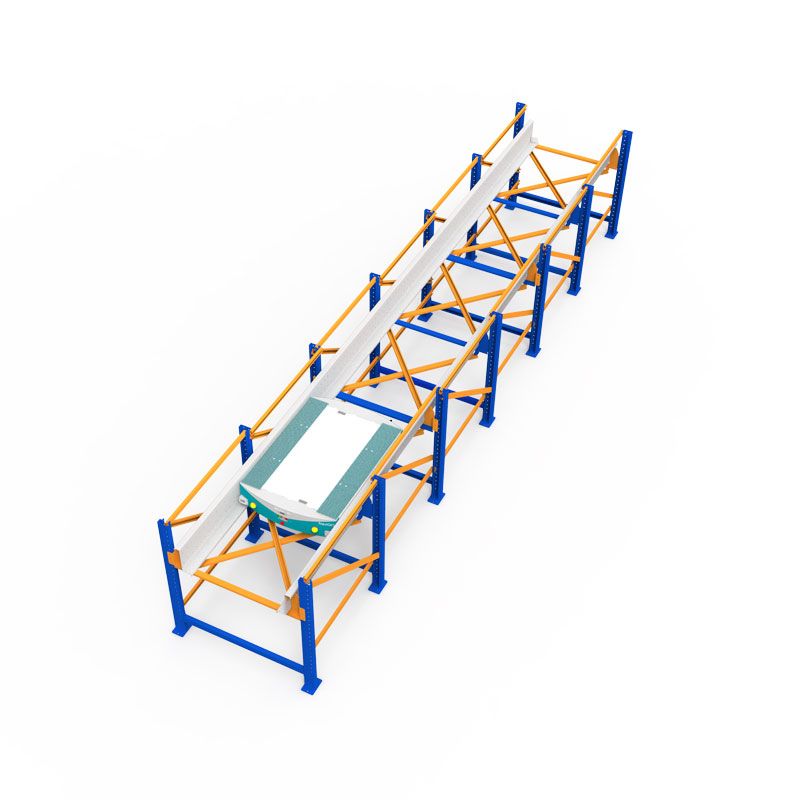

NaviGO Pallet Shuttle is an innovative automated storage and retrieval system designed for high-density warehousing of pallets. It utilizes compact shuttle carriers that store and retrieve loads within the high-bay racking system. The system is designed to handle standard sized pallets up to 1,500kg in weight. This allows it to accommodate most common pallet sizes used in warehousing and distribution centers. This optimizes storage locations and tracking allows seamless integration with broader warehouse management systems. Overall, the NaviGO™ Pallet Shuttle provides high-speed, high-density automated pallet storage and retrieval in a compact footprint – making it ideal for warehouses looking to maximize capacity and throughput. NaviGO™ utilizes state-of-the-art warehouse management software and controls. This optimizes storage locations and inventory tracking. It also allows seamless integration with broader warehouse management systems

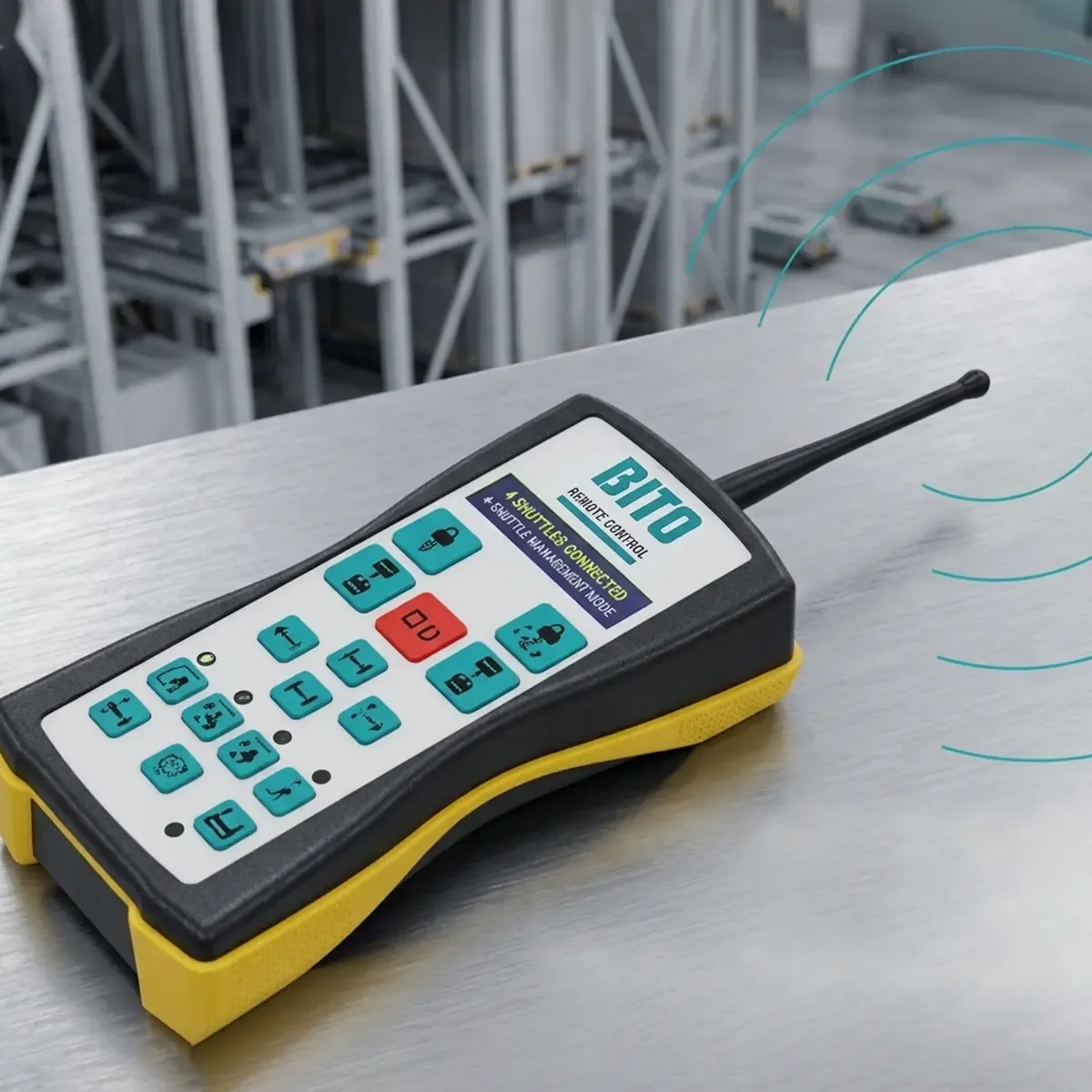

Easy handling, Tough design for everyday use & Manages up to 4 shuttles at a time
Anti-slip surface ensures safe spot on lift truck forks & Guide rails prevent dislodging

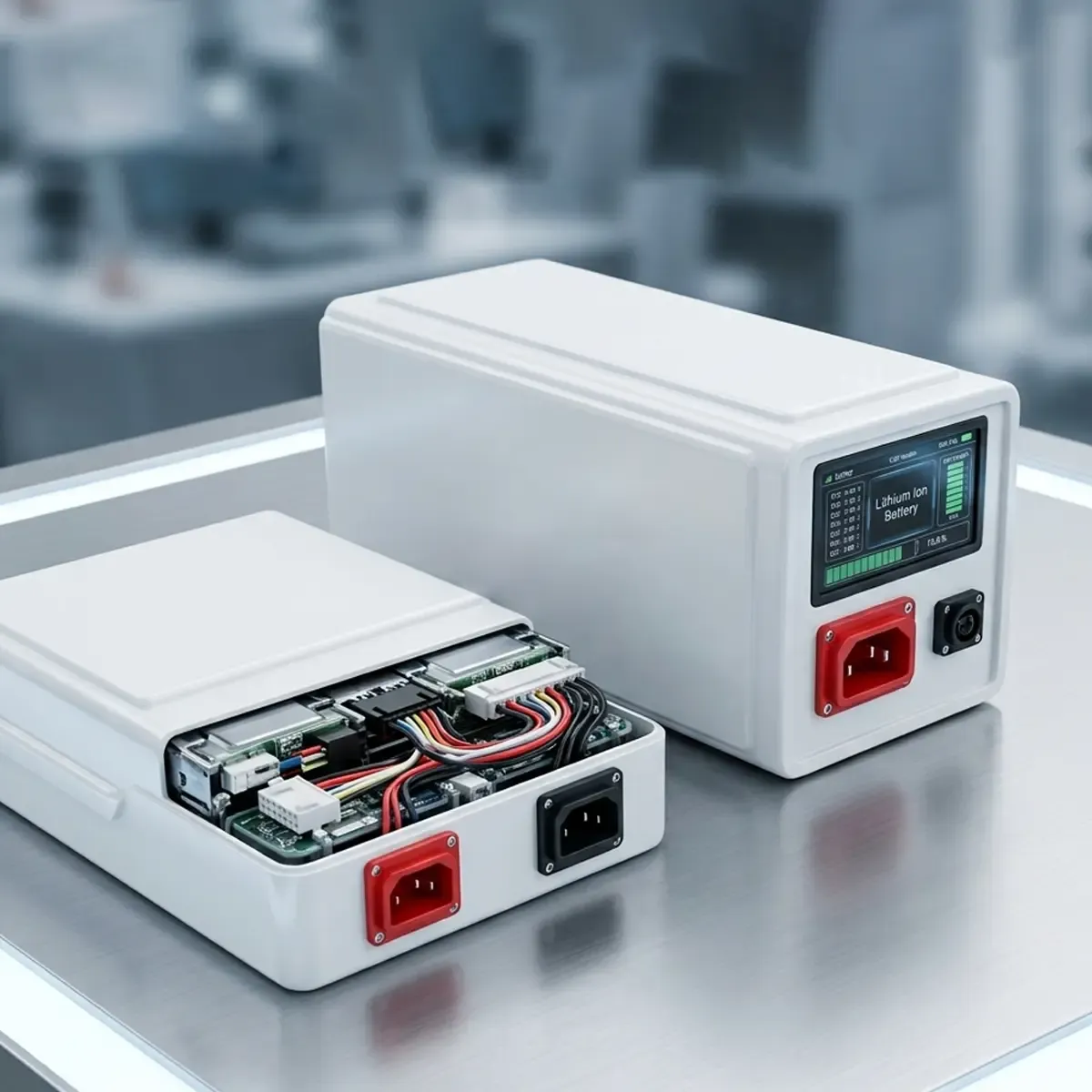

Weighs only 10.5 kg & Long life charging battery

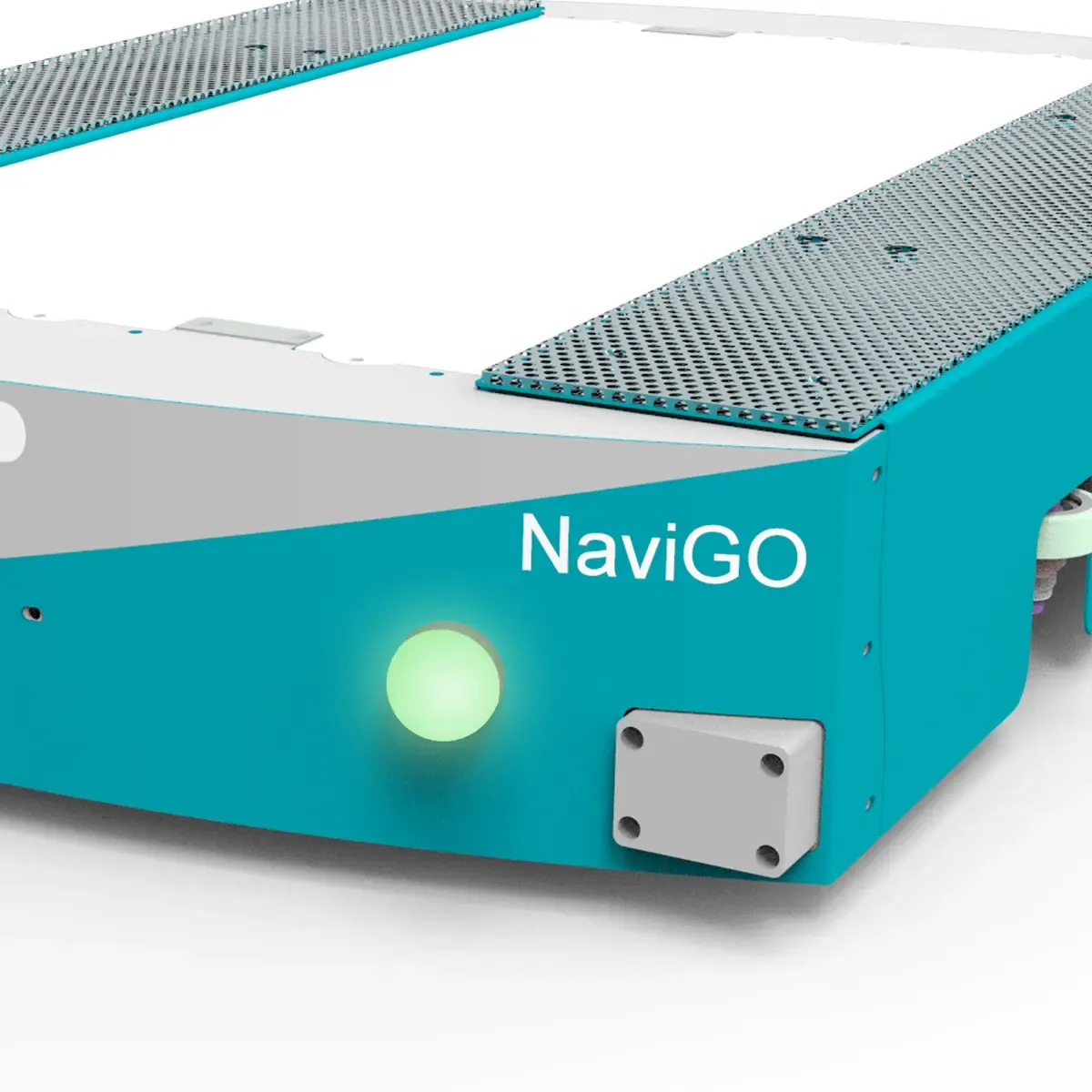

Detects obstacles in path & Prevents damage

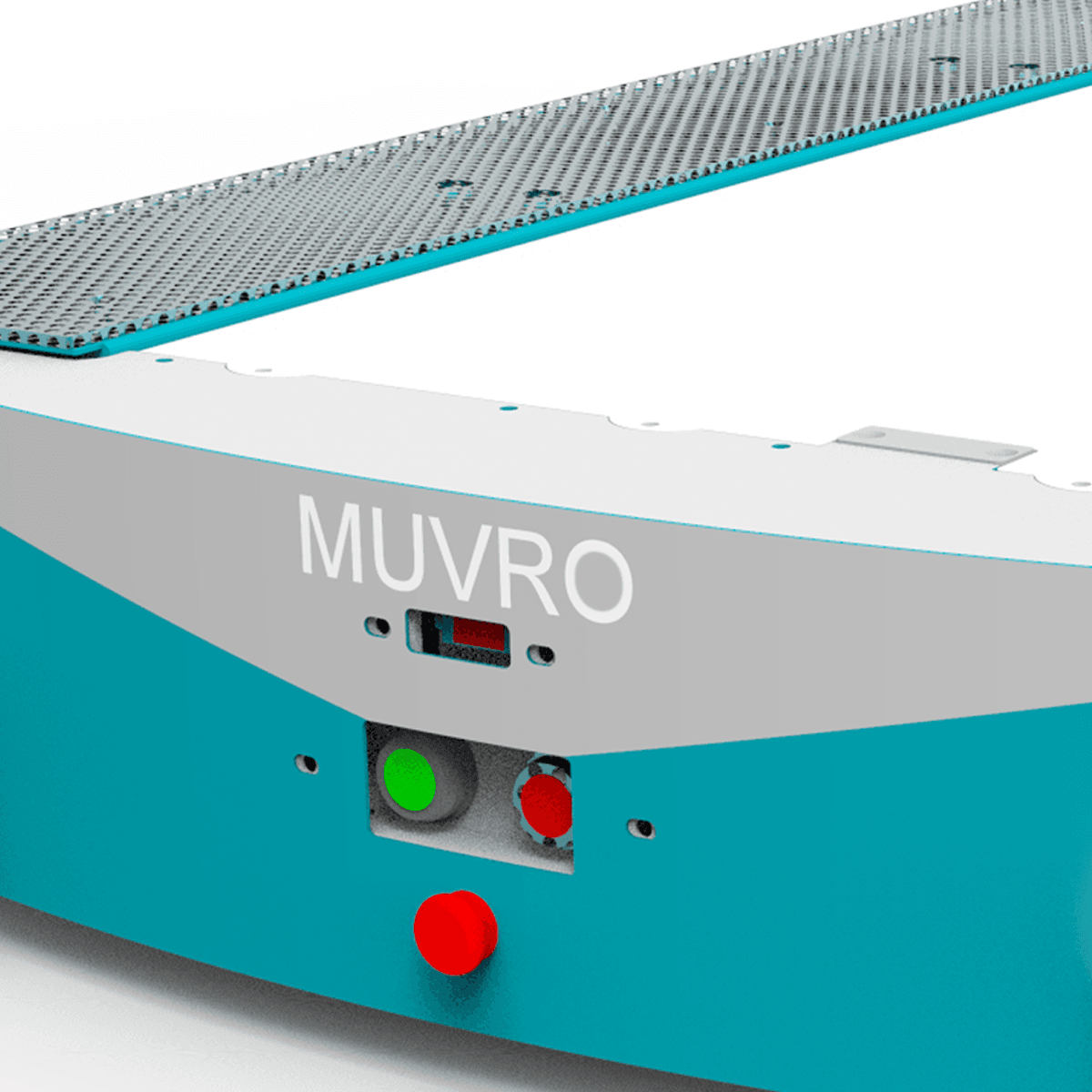

Dedicated scanner per shuttle & Precise position detection

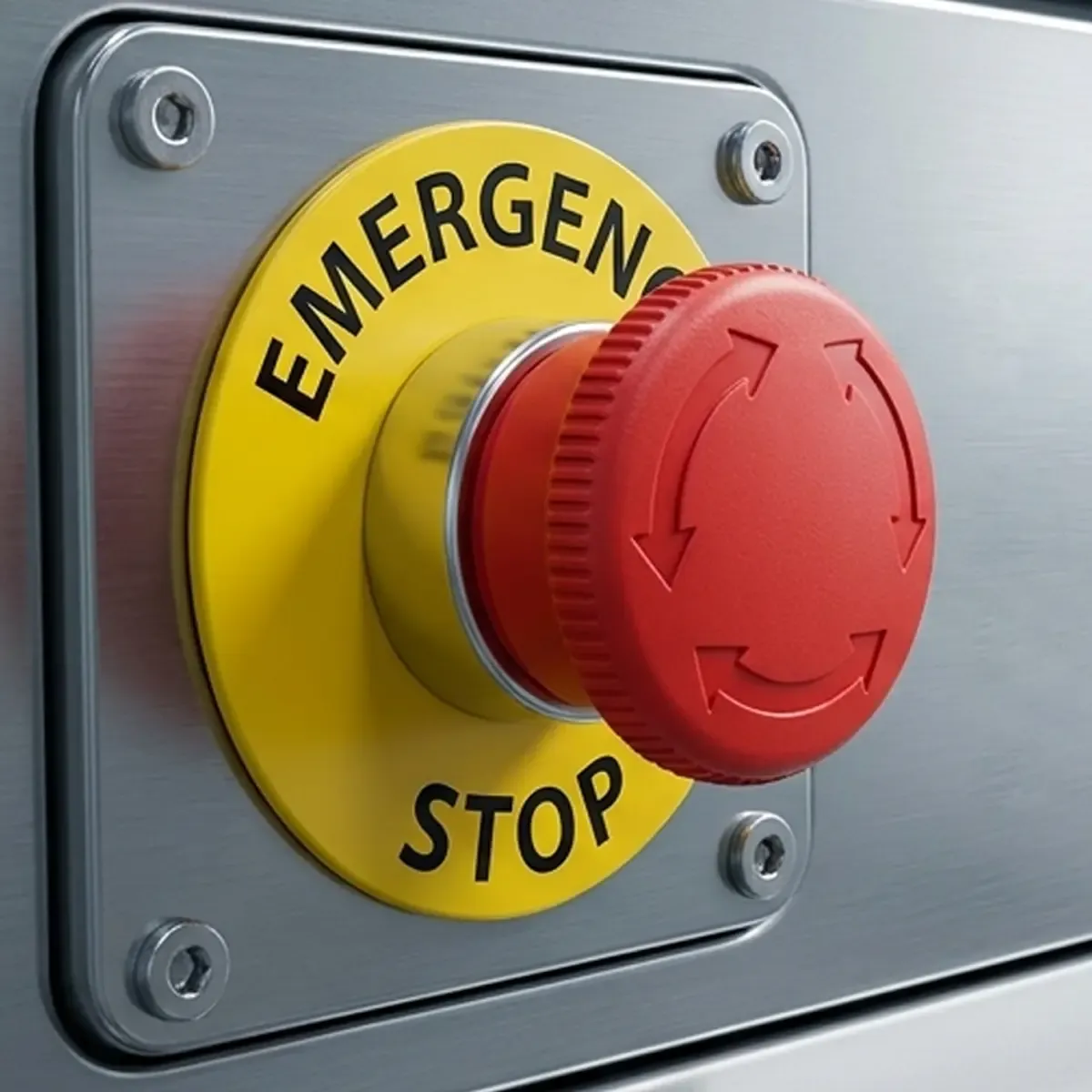

Hazard prevention & Located at the front and rear side of the shuttle vehicle
Explore detailed specifications to find the perfect fit for your operational load, pallet size, and throughput needs. Designed for high-density pallet storage, these systems deliver superior speed, precision, and safety.
1320/1420/1520 mm
Length
914 mm
Width
230/230/280 mm
Height
125/150/200 kg
Weight
800x1200 mm 1000x1200 mm
Pallet Sizes (Micro)
800x1200 mm, 1000x1200 mm, 1200x1200 mm
Pallet Sizes (Mini)
800x1200 mm, 1000x1200 mm, 1200x1200 mm
Pallet Sizes (Max)
500/1500/1500 kg
Max. Weight Carring Capacity
12/10/10 hours
NeviGO Running Time
3.6 km/h
Max Speed (at no load)
1.8 km/h
Maximum Speed (at full load)
50 mm
Lifting Stroke

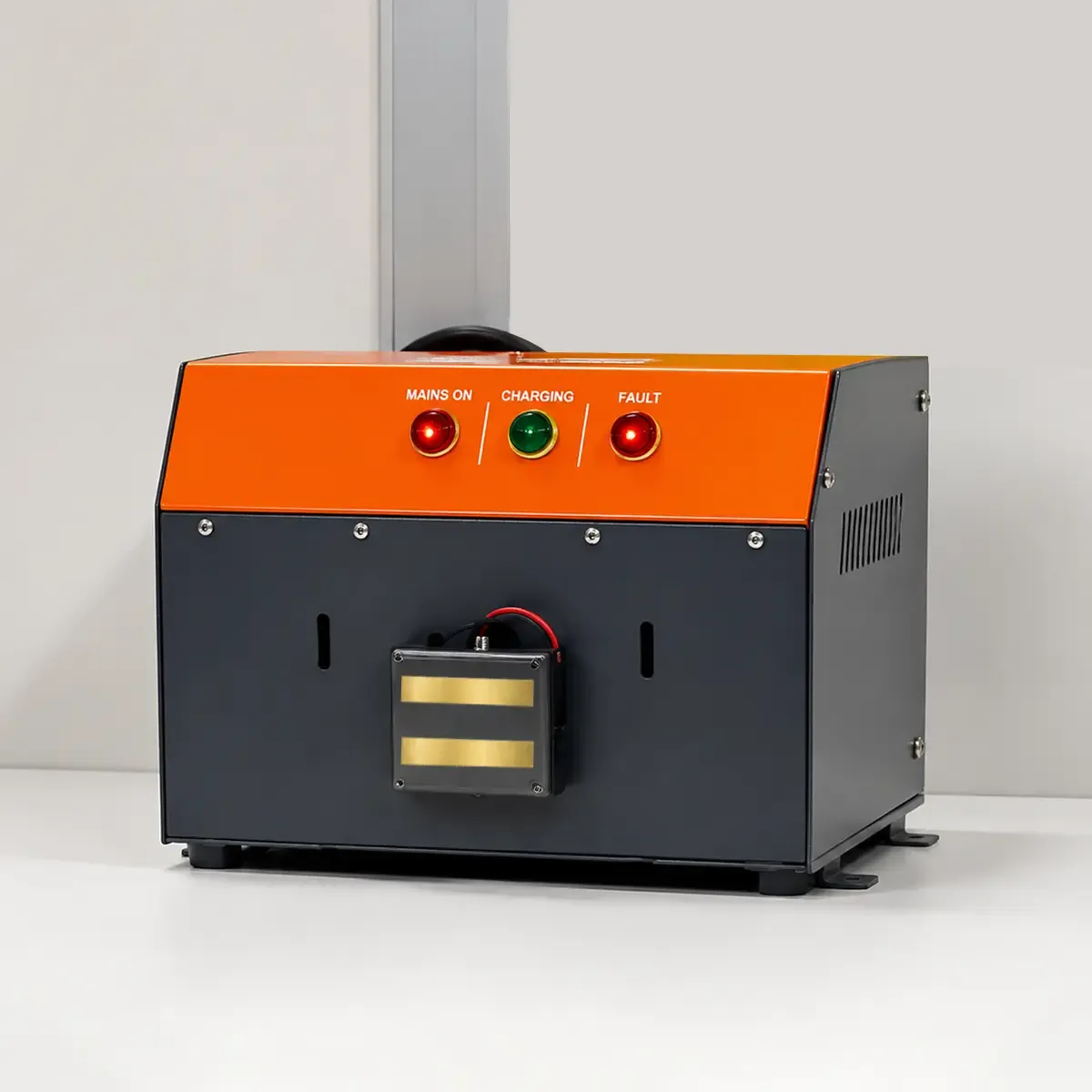

1 hour (10% to 90%) at Charging station
Charging Time
50-60 Hz
Frequency
100-230 V ac
Input
48 V
Output
LIFE-P04, 48 V, 24AH (Micro)/ LIFE-P04, 48 V, 48AH(Mini & Max)
Battery
750W/1.5KW/1.5KW
Vertical Drive
400W/750W/750W
Linear Drive
(+/-) 10 mm from destination
Positioning Accuracy
(+)5°C to 50°C (humidity 10-95% non- condensing)
Temperate Range
Dual-band wireless AC/G/N/B
Wifi
Yes
Controller (PLC)
