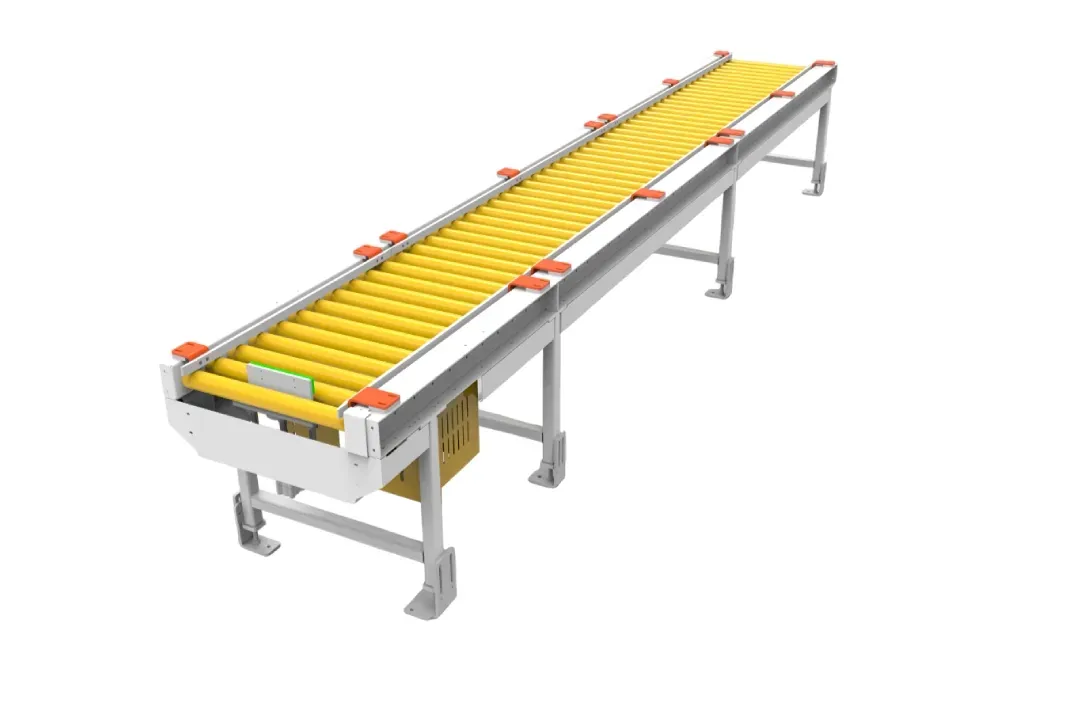

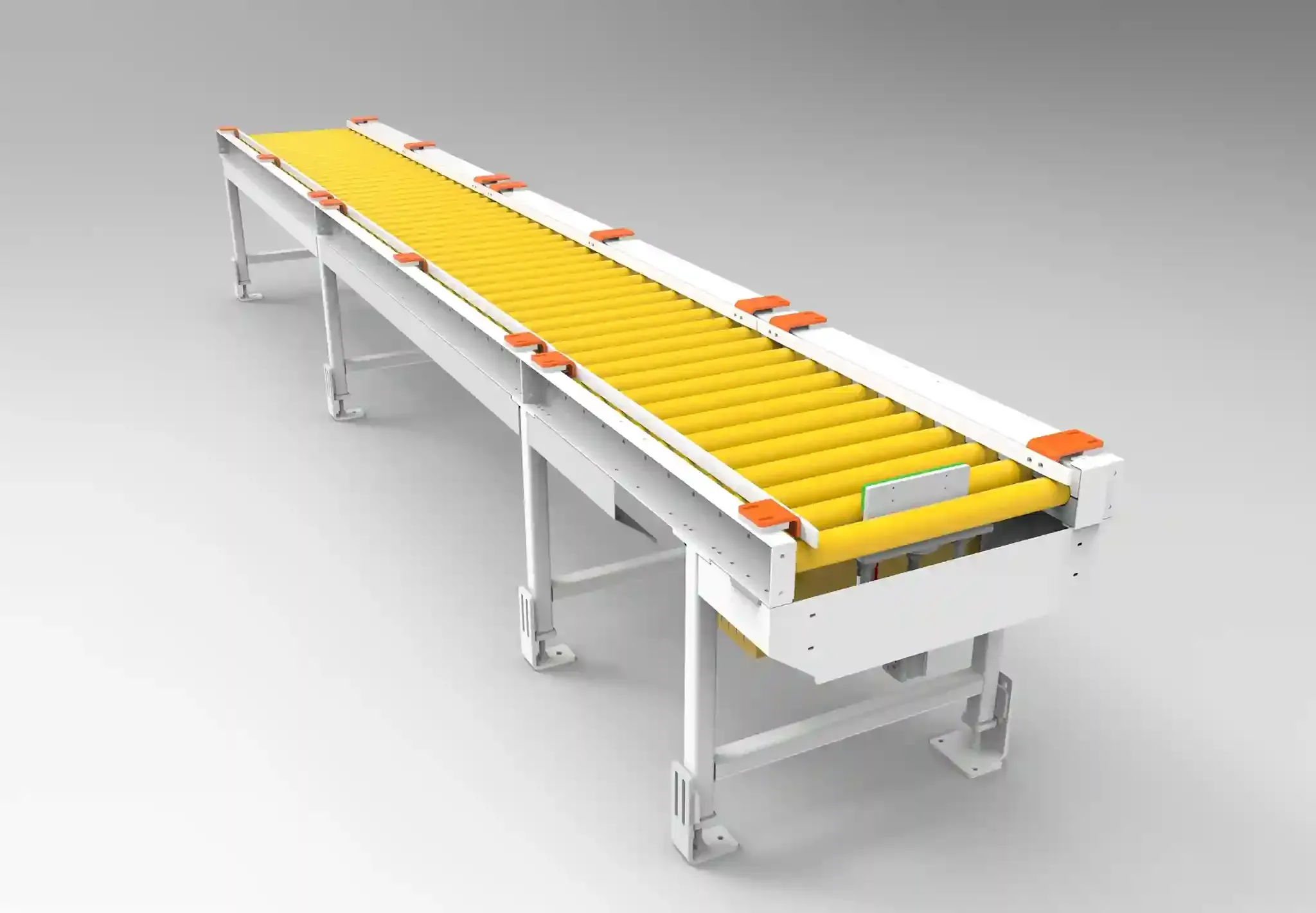

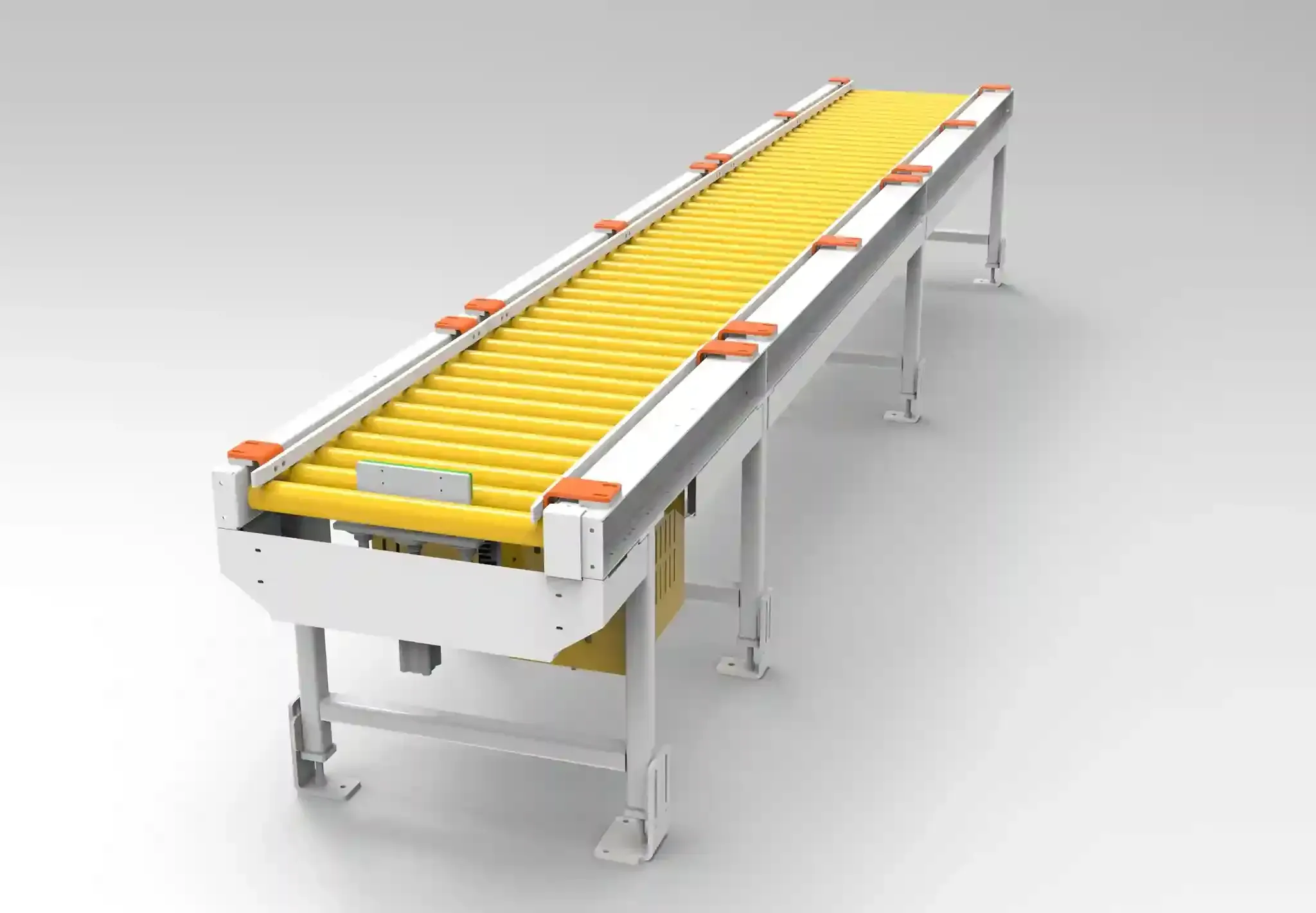

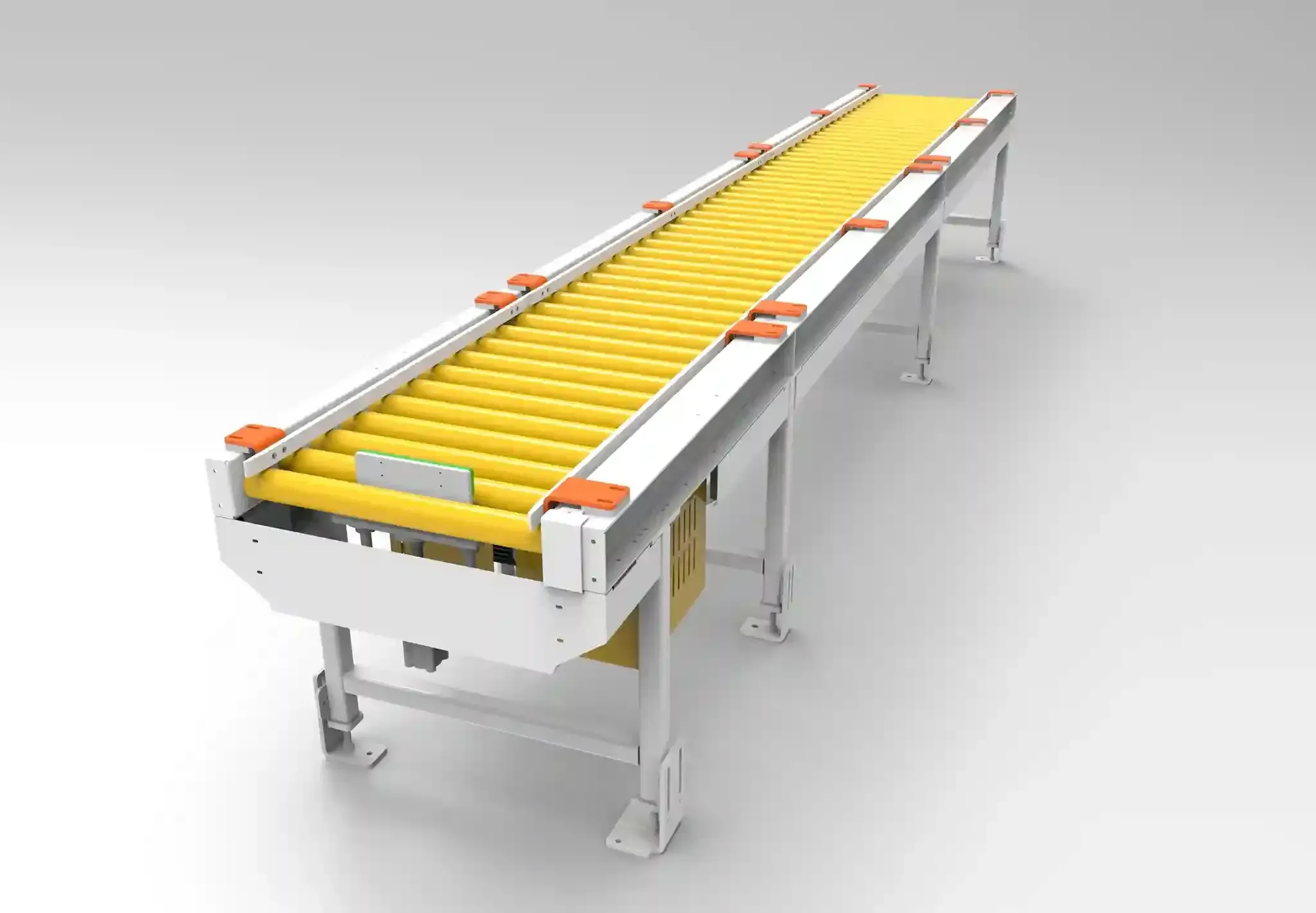

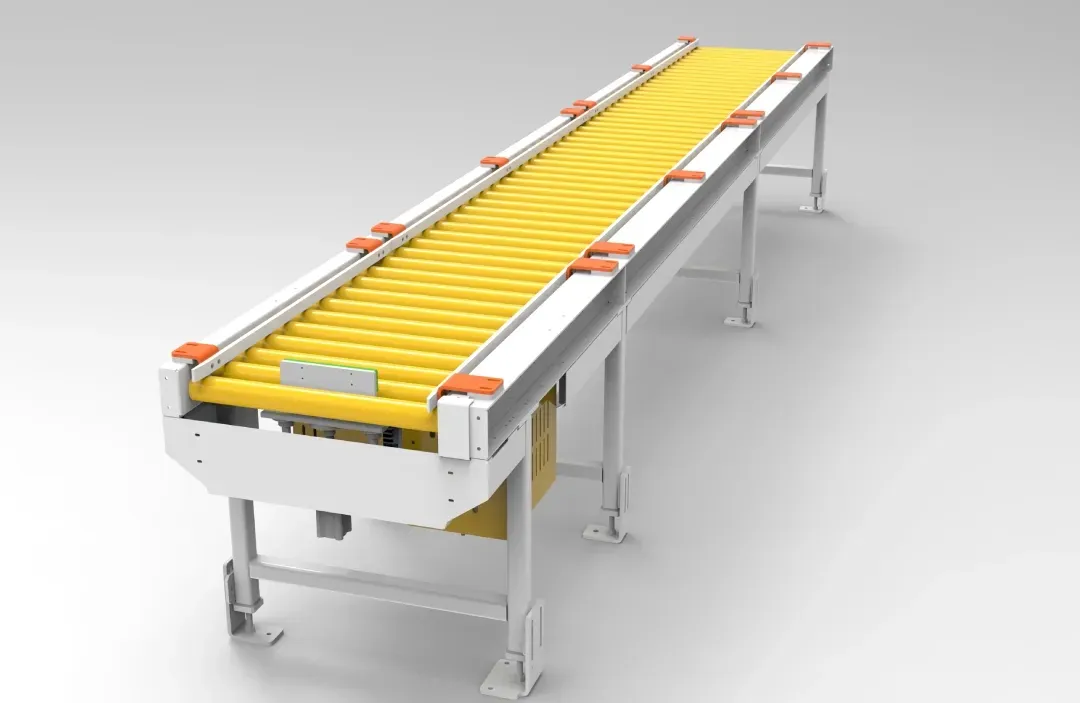

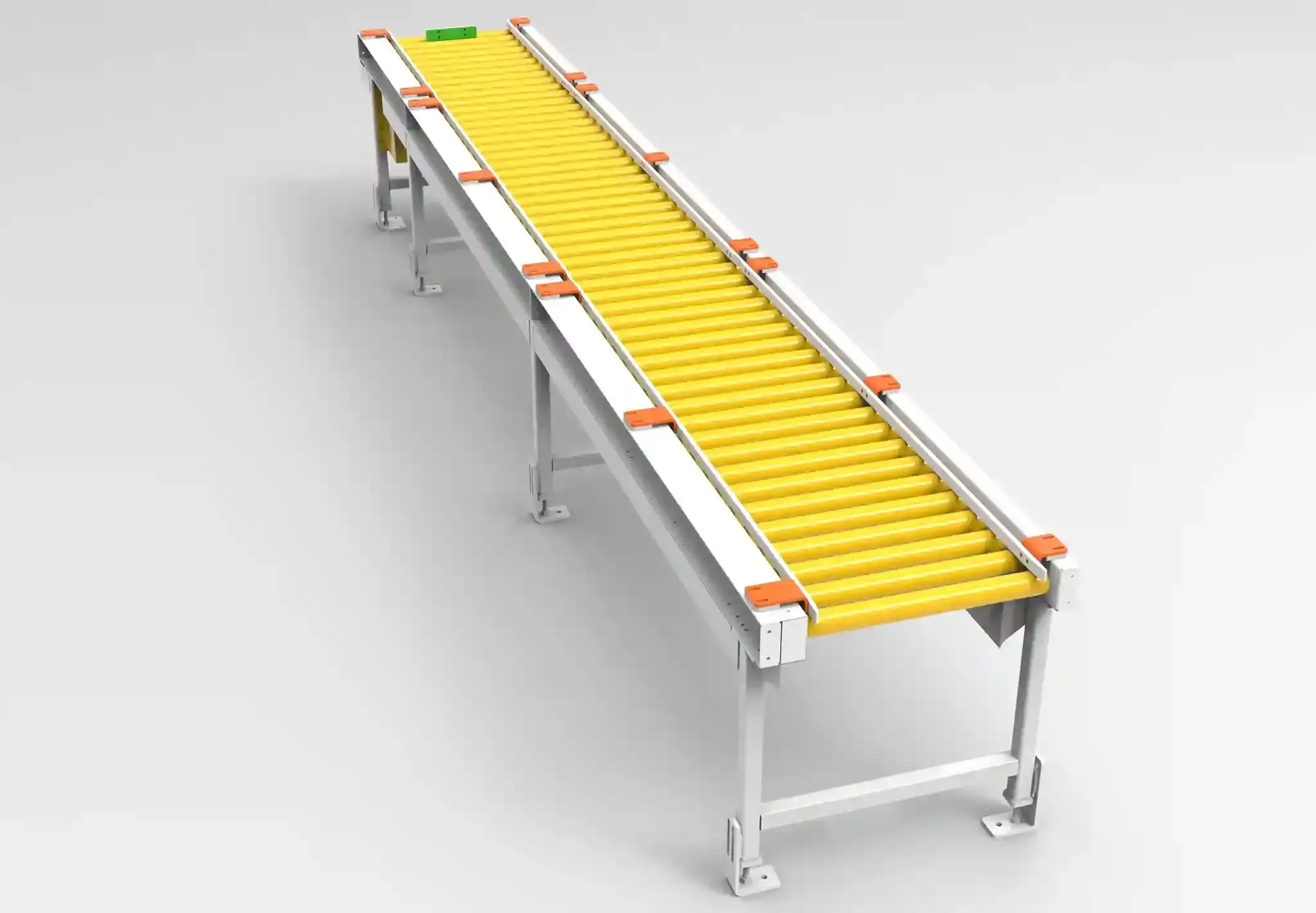

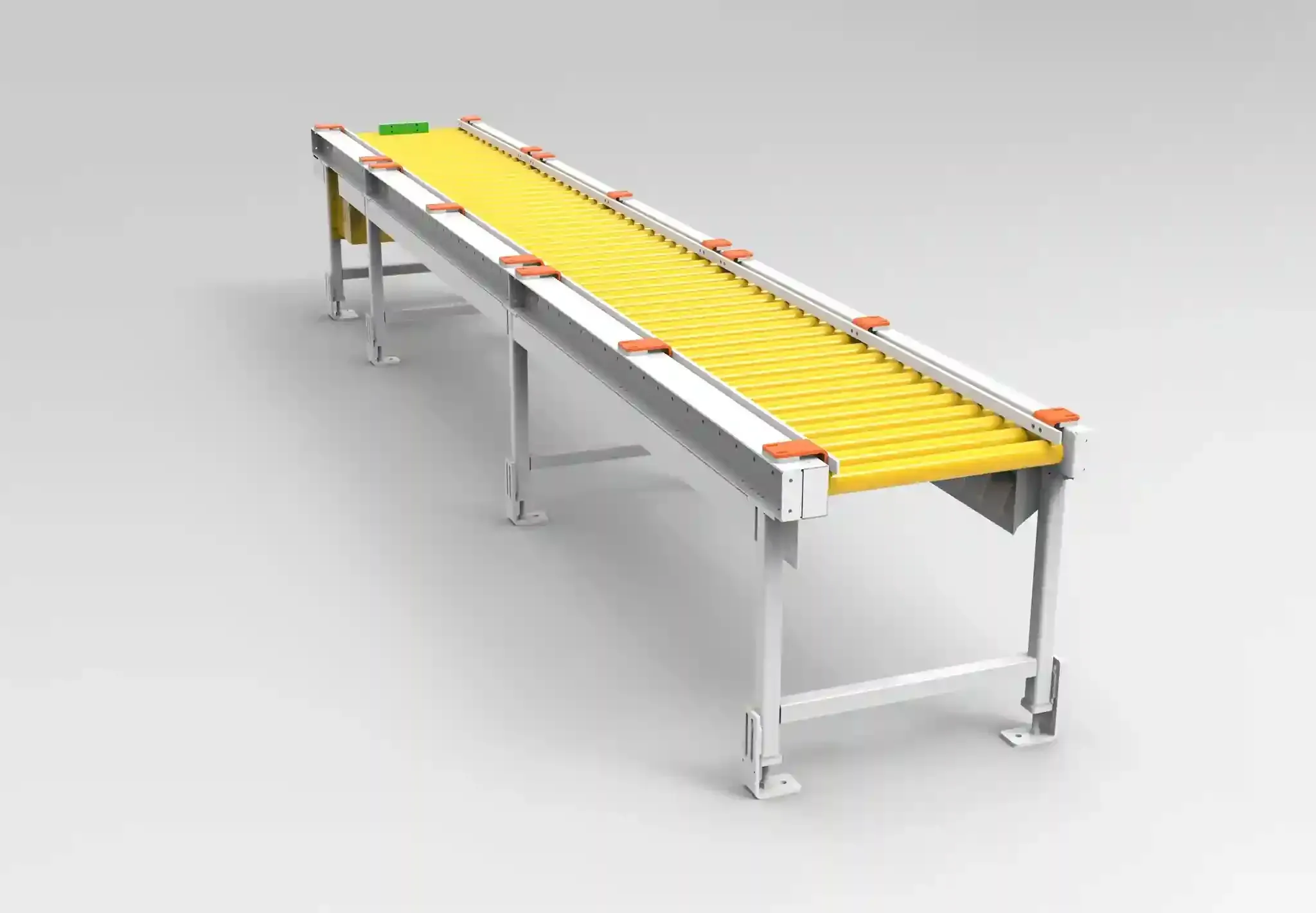

The Powered Coated Roller Conveyors is designed for continuous and efficient material movement, driven by an AC geared motor. Unlike Zero Pressure Accumulation (ZPA) systems, it operates without zone control, utilizing a chain or belt drive mechanism for synchronized roller movement. PU (Polyurethane) Coated Roller Conveyors are a specialized type of powered Roller Conveyor system designed with rollers coated in a layer of polyurethane or PVC. Th...
Ensures uninterrupted material movement without zone-based stoppages.
Minimal control components simplify installation and maintenance.
Centralized drive reduces the number of motors required compared to ZPA systems.
Continuous operation enables efficient handling of large volumes.
Supports continuous running or indexing, configurable via PLC programming.
Customizable in various widths, heights, and configurations to suit industry-specific requirements.

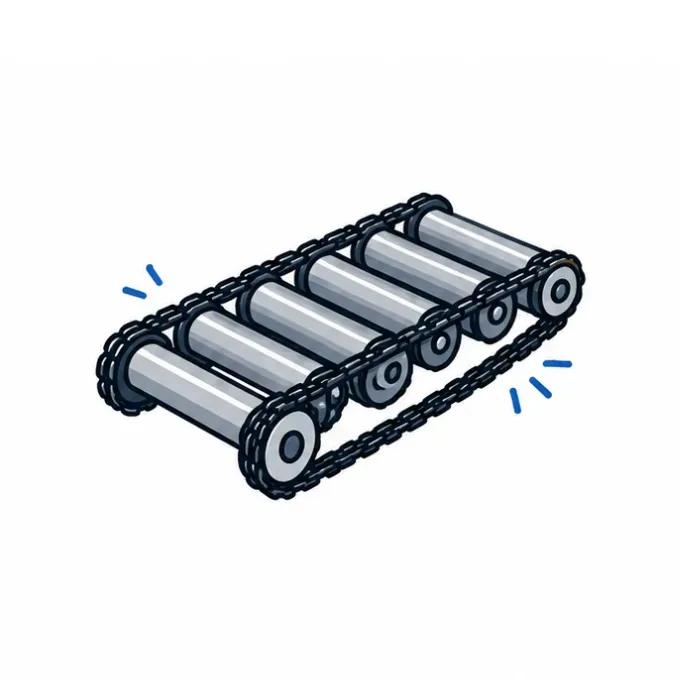

Each roller is connected to the next using a chain or belt, forming a continuous drive loop.

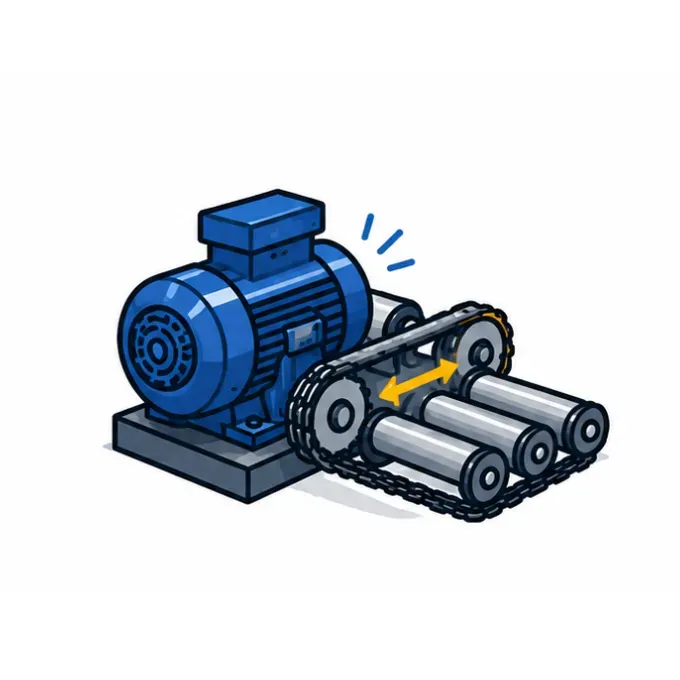

The motor transmits power via a chain or belt drive, ensuring synchronized roller motion.

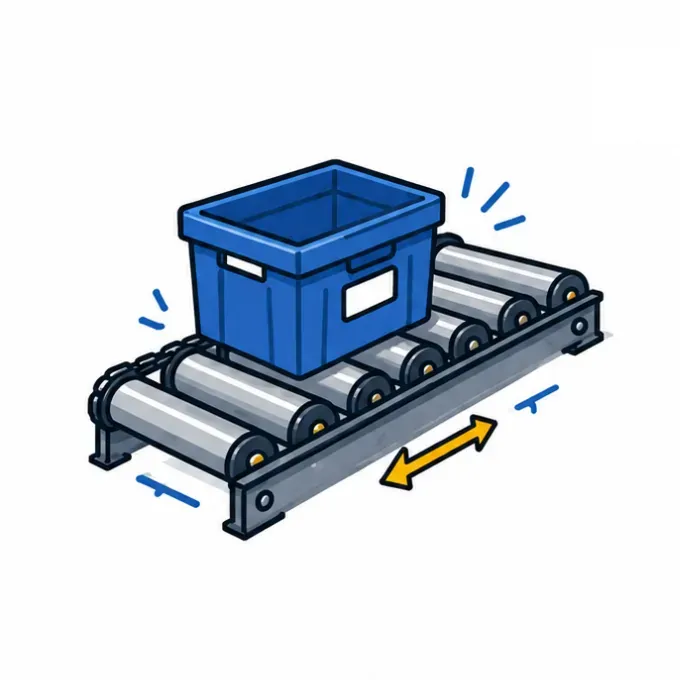

Rollers operate continuously, ensuring smooth product flow.

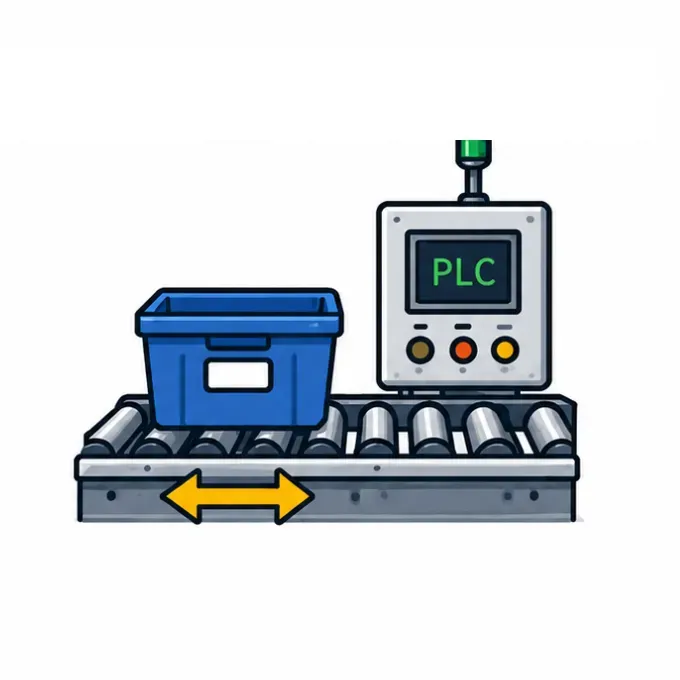

Controlled start/stop operation for precise product positioning based on PLC programming
Constructed from high-quality CRC steel sheet, CNC laser cut and bent into a C-profile with collar bends. Features slotted flanges and defined mounting holes fo...
CNC laser-cut and bent into a C-profile with slotted holes for height adjustment. Smile brackets for angle alignment, flat bottoms with grouting holes for secur...
Available in various tube diameters: 50 mm, 60 mm, 80 mm, 90 mm, 100 mm. Drive Mechanism: Roller-to-roller chain or belt drive.
Photoelectric (Reflective or Through-Beam) sensors mounted at infeed and discharge points for product detection.
Main driving force for the conveyor, controlled via VFD for speed regulation.
Protect moving parts from exposure.
For product presence detection and automated control.
Ensures organized wiring and easy maintenance.
For controlled product flow direction and separation.
Used for product sorting and alignment.
Adjustable configurations for various product sizes.
Ideal for warehouses and distribution centers, ensuring smooth transport of small to medium-sized packages.
Used in assembly lines for transporting lightweight automotive components.
Handles pallets within specified weight limits, ensuring steady movement.
Enables efficient material flow in industrial production and storage environments.
Supports high-throughput order fulfillment systems, automated sortation, and logistics handling.
Engineered for efficient material transport with modular construction, adjustable speed control, multiple load capacities, and PLC-compatible automation, ensuring reliable performance across industrial handling applications.
Modular
Conveyor Construction
50 mm, 60 mm, 80 mm, 90 mm, 100 mm
Roller Tube Diameter
Steel, Zinc Plated, PU Coated
Roller Tube Material
Fixed Drive Roller
Roller Type
Sprocket, Poly Vee, Double Groove on Tube or Timing Pulley
Roller Drive Head
75, 90, 100, 120 mm
Roller Mounting Pitch
1 Mtr ~ 15 Mtr
Conveyor Length
Max 3 Mtr
Conveyor Module Max Length
300 ~ 1200 mm
Conveyor Width
300 mm 2400 mm
Conveyor Height
5˚ to 10˚ Max
Inclination Angle
30 Kg, 50 kg, 75 kg, 125 Kg / Mtr Max
Conveying Capacity
5 ~ 90 Mtr / Min
Conveyor Speed
AC Geared Motor, Power Roller
Conveyor Drive
< 70 Dba
Running Noise
(-)10°C to 40°C (humidity 10–95% non-condensing)
Ambient Temperature Range
Steel Wheel, Round Tube, U Channel
Side Guide
50 mm, 150 mm, 300 mm, 600 mm
Side Guide Height
Safety Covers, Photo Sensors with Mounting Brackets, Cable Tray
Conveyor Accessories
Tyres, Wheel, Pallets, Carton Box, Plastic Bag
Conveying Products
By PLC
Sequence Control
By VFD or Roller Drive Card
Speed Control
HMI
Man Machine Interface
Optional
SCADA / WCS
Profinet / Ethernet / Modbus
Communication Protocol
Profinet / Ethernet / Modbus
Real Time Communication
Photo Electric Sensors
Sensors
3 Phase (360 ~ 440 VAC)
Main Power Supply to Control Box
50 ~ 60 Hz
Rated Frequency
High-quality CRC steel sheet
Conveyor Frame
High-quality CRC steel sheet
Conveyor Legs
Shot Blasted and Powder Coated
Painting
Gray RAL-7016, Orange Glossy HGS 2302
RAL Colour
CE, ISO 9001, OSHA, UL
Certifications
