The NaviGO™ Mother-Child Pallet Shuttle ASRS from Muvro is a high-density, fully-automated storage and retrieval system that combines powered aisle carts (Mother Shuttles) with deep-lane pallet shuttles (Child Shuttles). Together, they move pallets swiftly, safely and intelligently through racking — maximizing storage per sq. ft while minimizing manual handling and operating cost. Built around a modular, scalable design, NaviGO™ can be deployed ...
Deep channels (up to ~45 m) and racking heights beyond 40 m, suitable for brownfield and greenfield sites, fit more pallets into the same footprint.
The compact aisles, deep lanes and optimized vertical space utilization offer a significantly higher capacity than traditional selective racking.
Mother Shuttles travel up to 3 m/s, while Child Shuttles operate at up to 1.1 m/s empty and 0.8 m/s loaded, delivering a substantial increase in cycles/hour compared to other compact storage solutions.
Battery-powered shuttles with smart charging and powerful drive systems can operate 24/7 with little downtime.
As your business expands, add aisles, levels, shuttles or lifts without redesigning the whole warehouse.
Designed for use in cold and deep-freeze warehouses and also ambient environments operating between +5°C to –30°C.
high-velocity SKUs, peak season surges
rapid order fulfillment and sequencing
–30°C environments with reduced cooling volumes
raw material, WIP and FG storage near lines
traceable, safe pallet storage
multi-client, multi-SKU pallet operations
Explore detailed technical insights of the NaviGO™ ASRS Shuttle System, engineered for performance, efficiency, and precision across all models.
2400 mm
Length
1450 mm
Width
600 mm
Height
650 / 750 kg
Self Weight
1220 mm
Width
800/1000/1200 mm
Length
150 mm
Height
LIFO/FIFO configuration
Load Management System
440V
Voltage
LIFE-PO4, 48V , 24AH / LIFE-PO4, 48V , 48AH
Battery For Child
1 hour(10% to 90%) at charging station
Charging Time
Input: 100-230V AC, 50-60Hz, Output: 48V, max 12A
External Charger
750W/1.5 KW
Pallet Lifting
750 W/1KW
Child Movement
1.5 KW/3 KW
Mother Movement
500 W/ 1.5KW
Pallet Transfer
12 hours
Running Time
3 m/s
Max Speed (Empty & Loded)
2 sec
Lifting Time
+5°C to +50°C
Temperature Range
-30°C to +5°C
Cold Temp. Range
10-95% non-condensing
Humidity
(+/-) 1 mm from destination
Positioning Accuracy of Mother
(+/-) 20 mm from destination
Positioning Accuracy of Child
Laser Distance Sensor P1KY101
Wenglor
Siemens PLC 57-1200, CPU 1513-1PM
PLC Model
Profinet
Communication Protocol
Yes
Warehouse Management System (WMS)
Single Command Cycle (SCC), Dual Command Cycle (DCC)
Operational Details
Yes
Emergency Stop
Yes
Collision Detection
ISO 9001:2015
ISO Certification
Yes
Spare Parts Availability
Barcode
Advanced Tracking Systems
Yes
API Availability
Pallet Shuttle ASRS System automates pallet storage & retrieval by shuttles & racks. It optimizes warehouse space, boosts efficiency, cuts down labor, and guarantees fast, precise pallet handling operations.

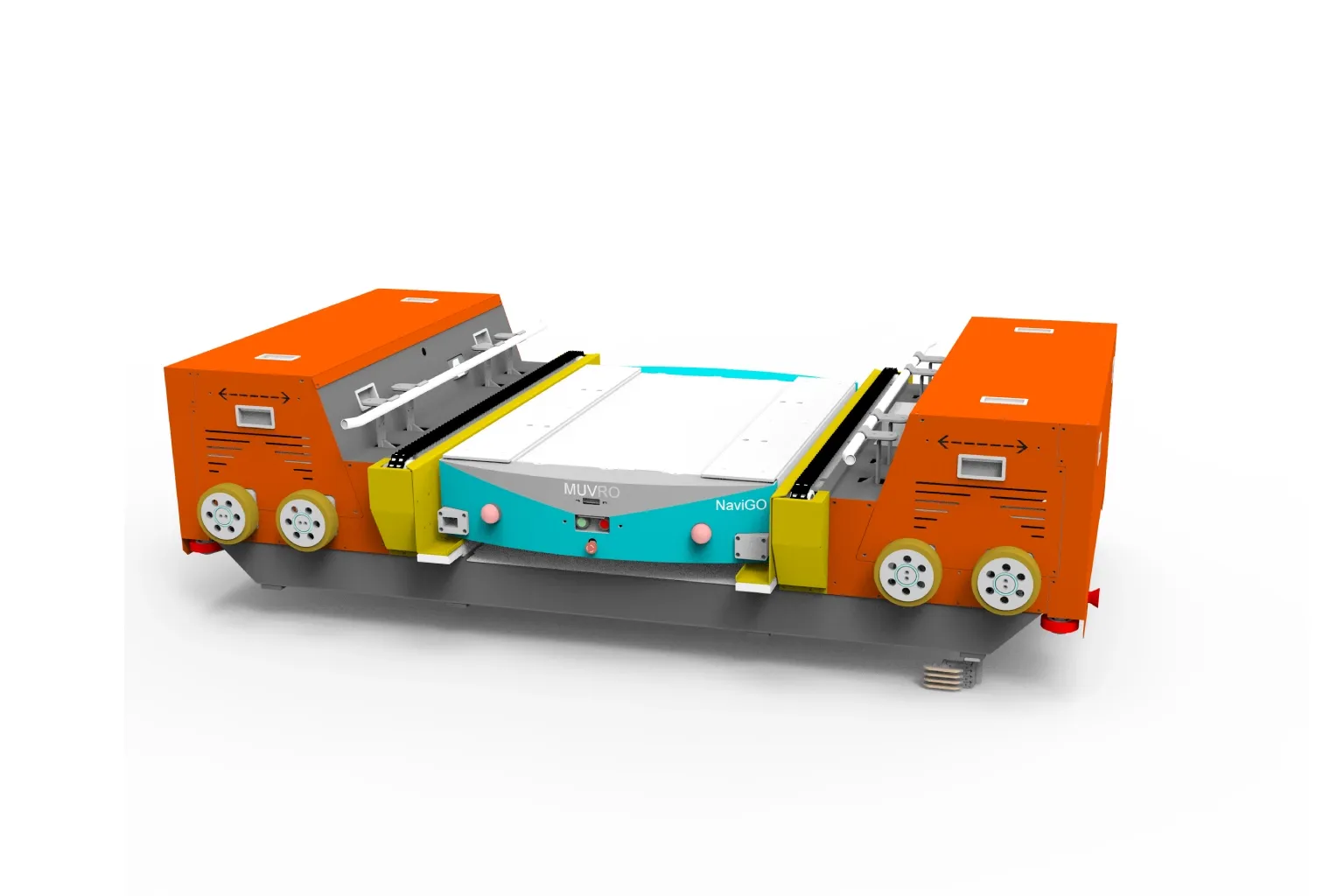

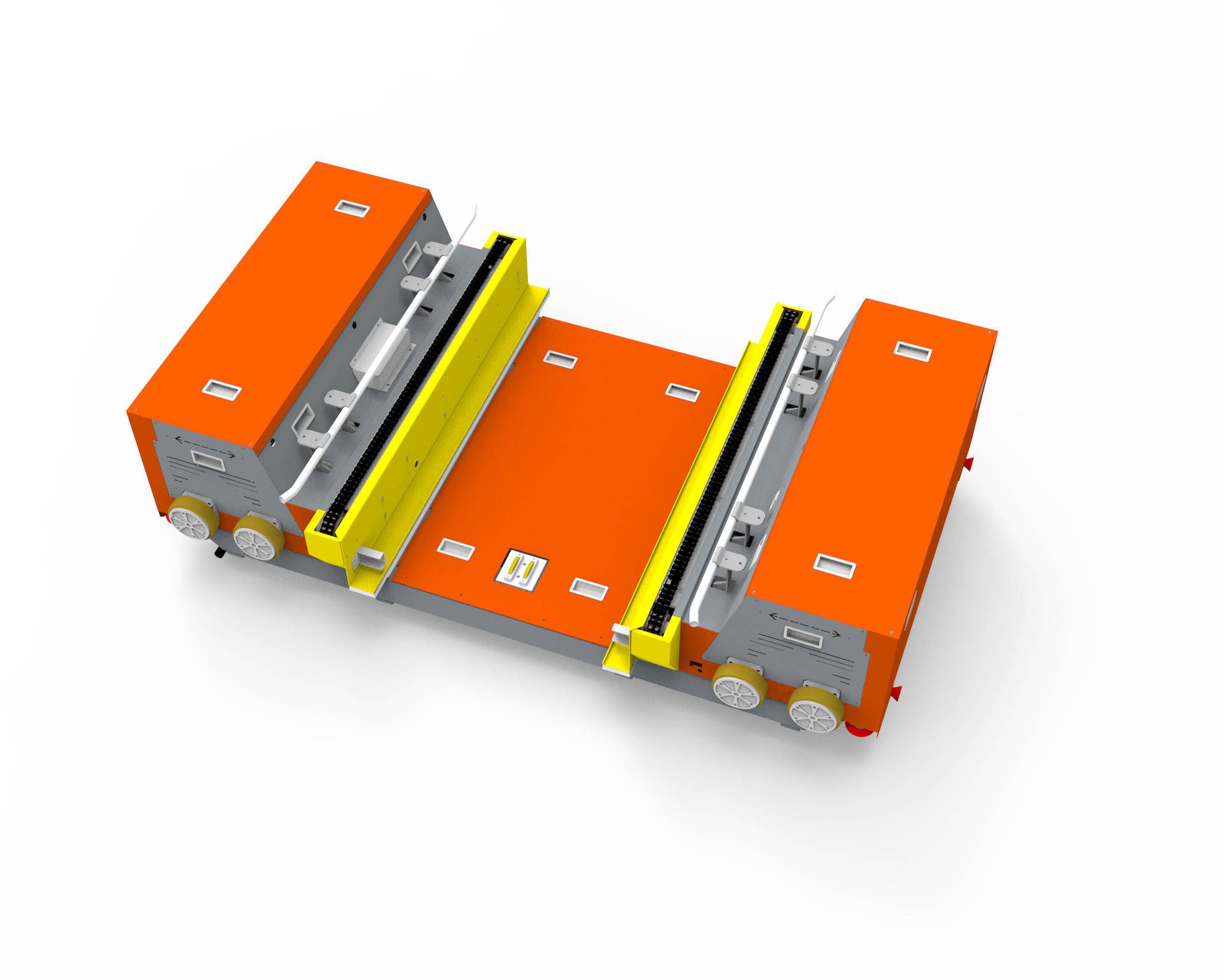

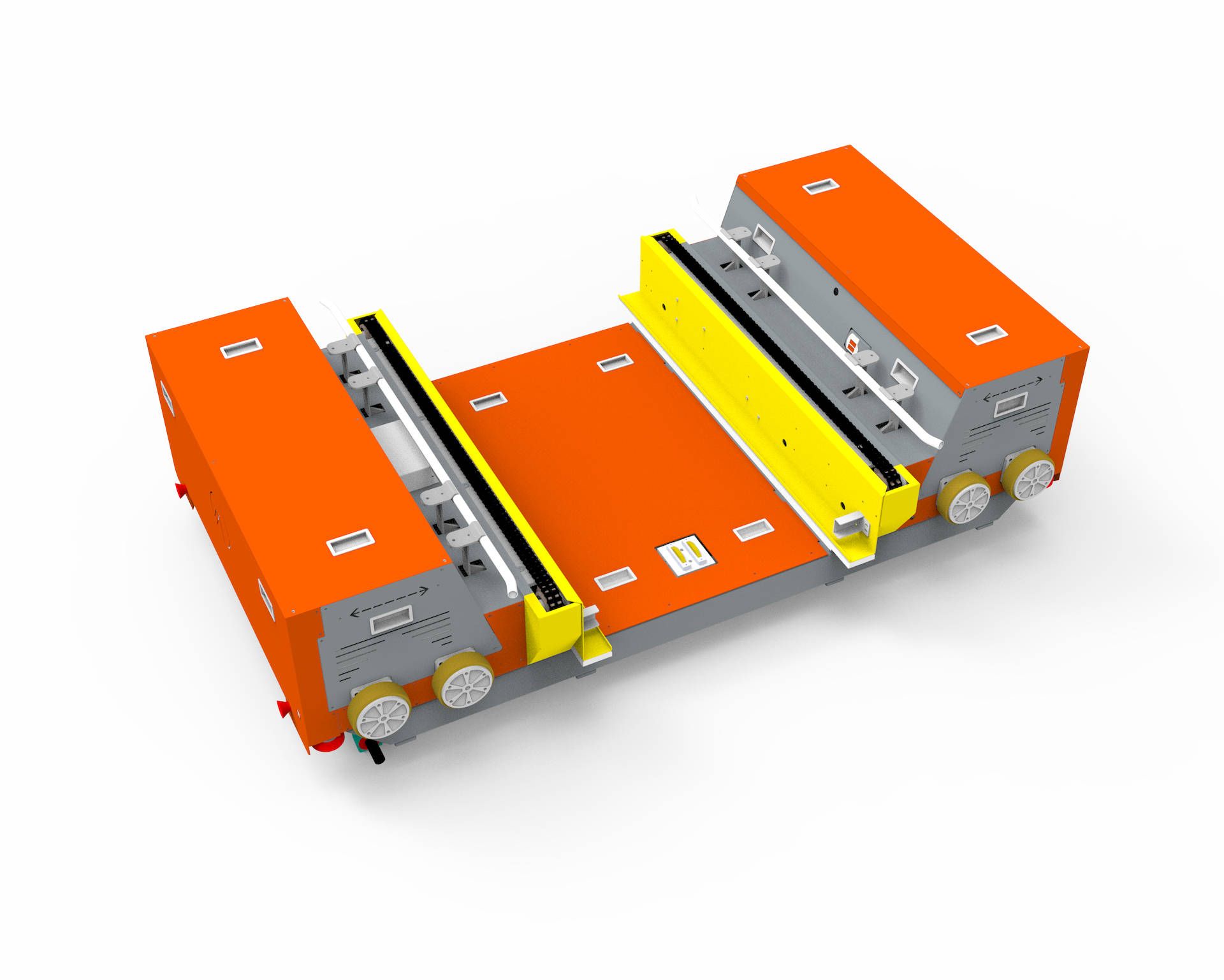

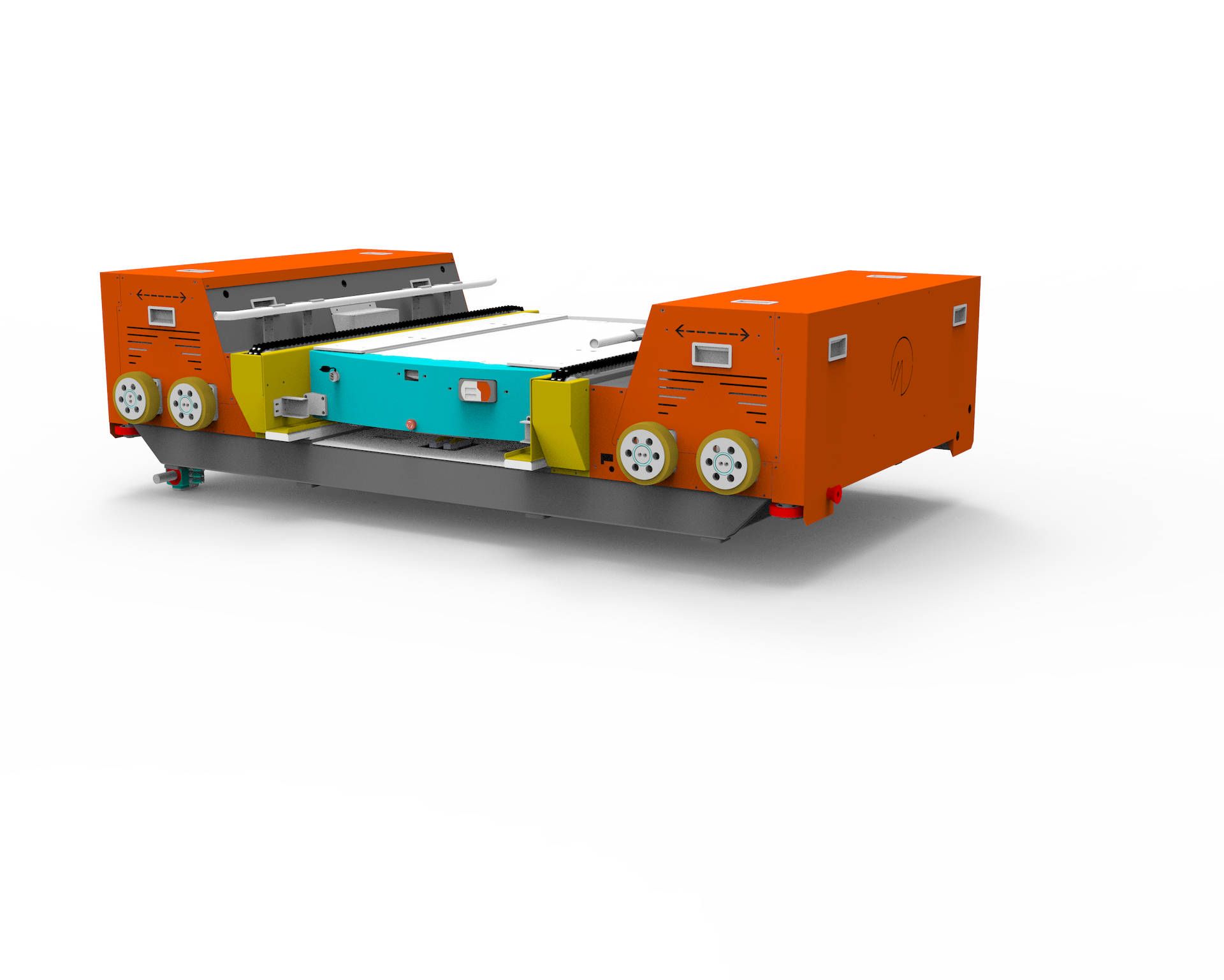

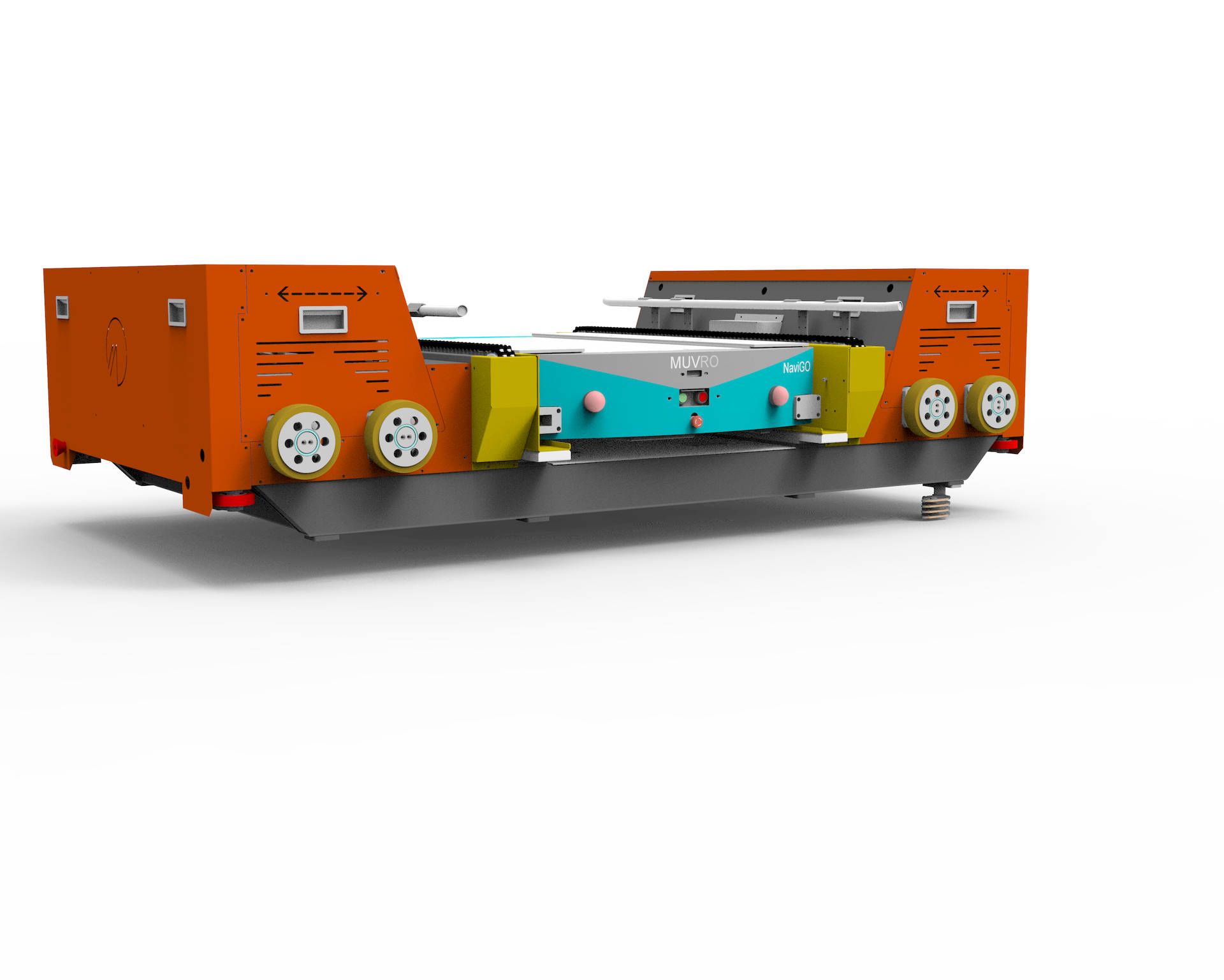

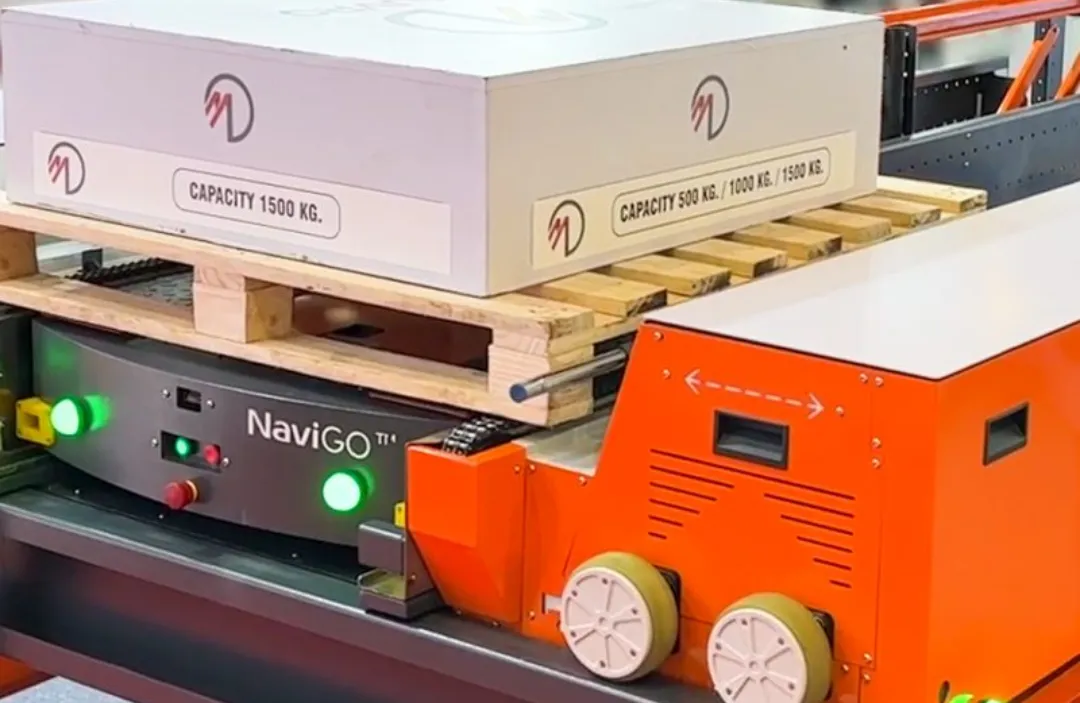

The Mother Shuttle runs along the aisle Transports the Child Shuttle pallets Max speed 3 m/s 2000 kg Drives motor/gearbox

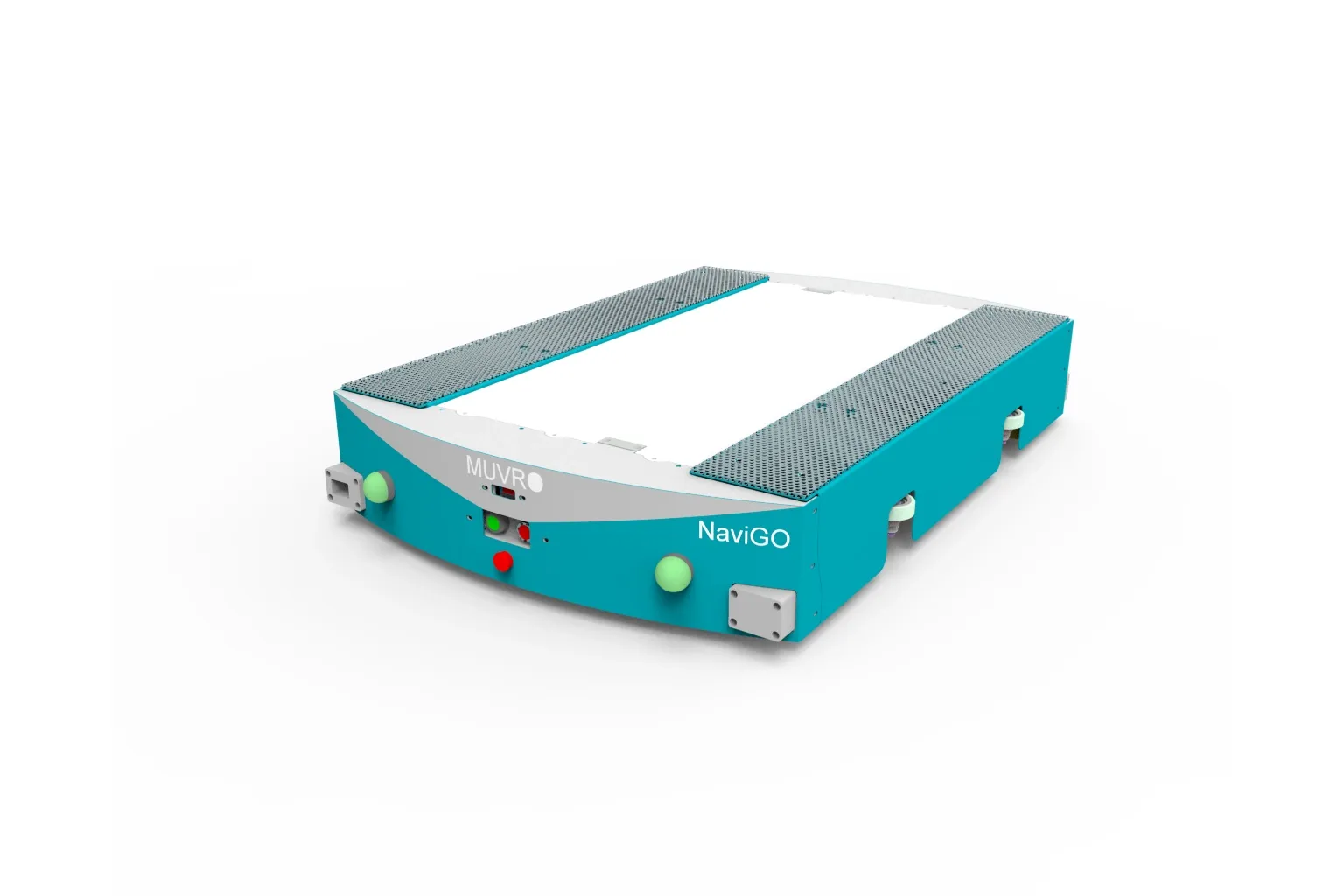

The Child Shuttle operates inside storage deep lanes Moves pallets Speed 1.1 m/s Capacity 500 kg Positioning accuracy ±20 mm

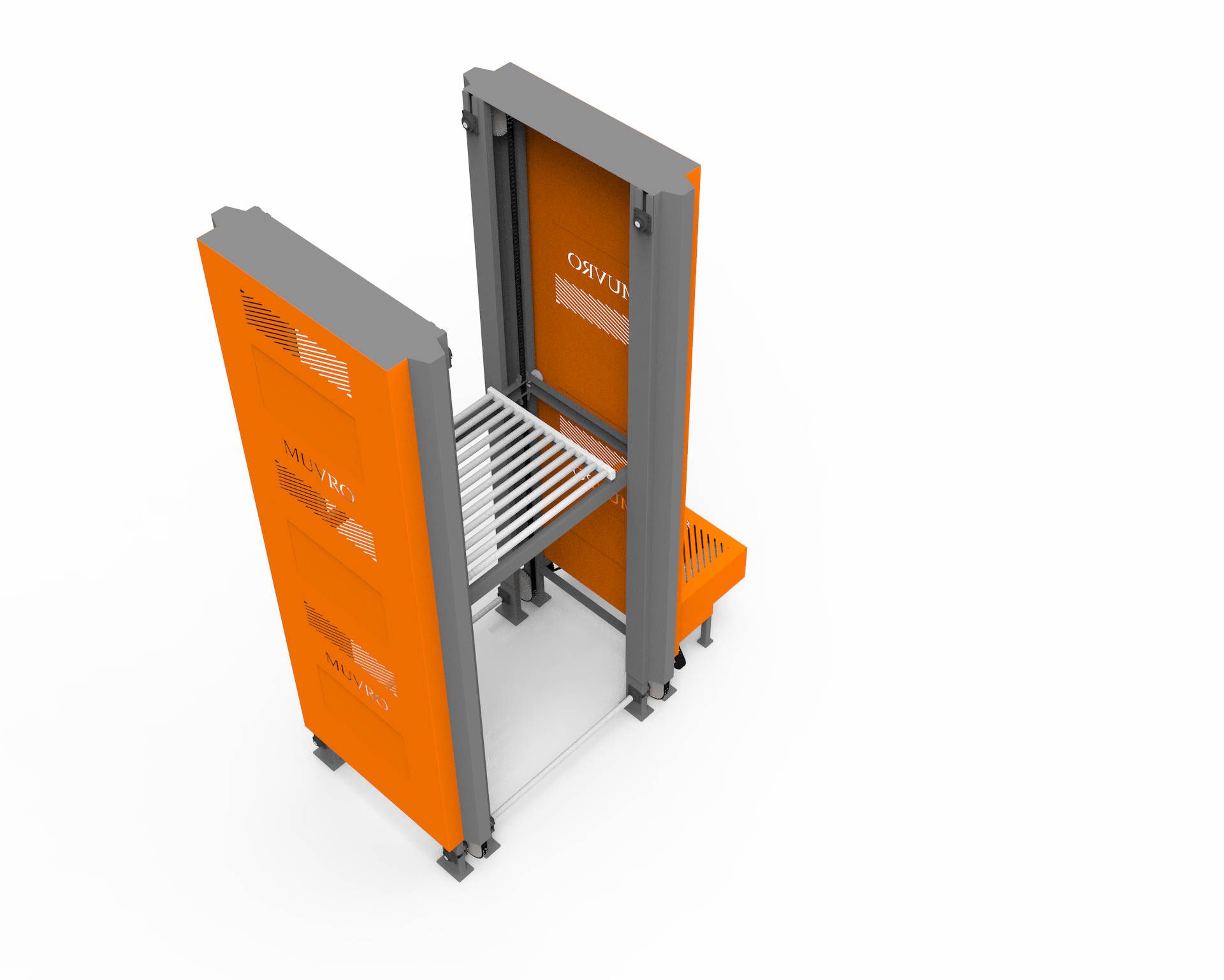

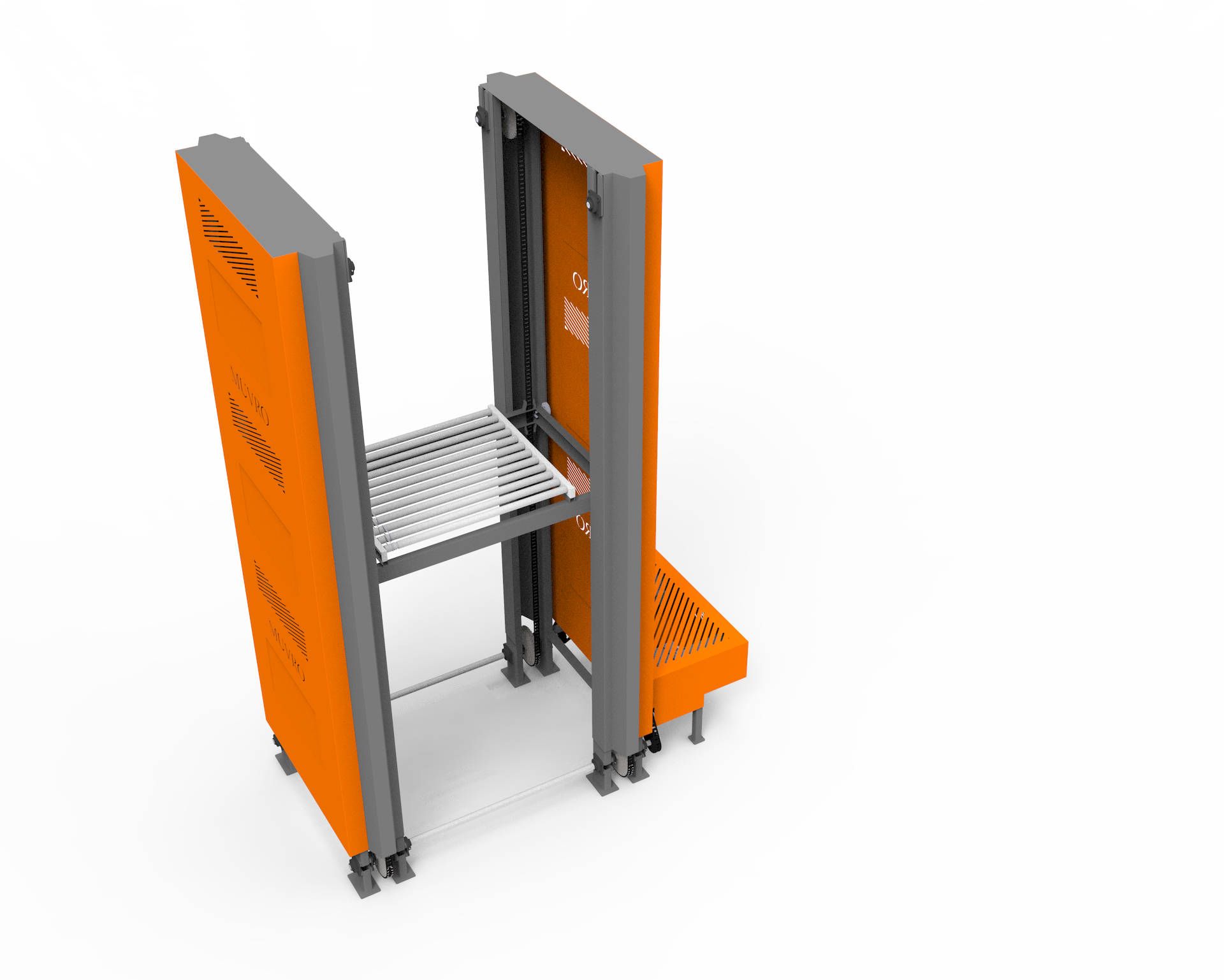

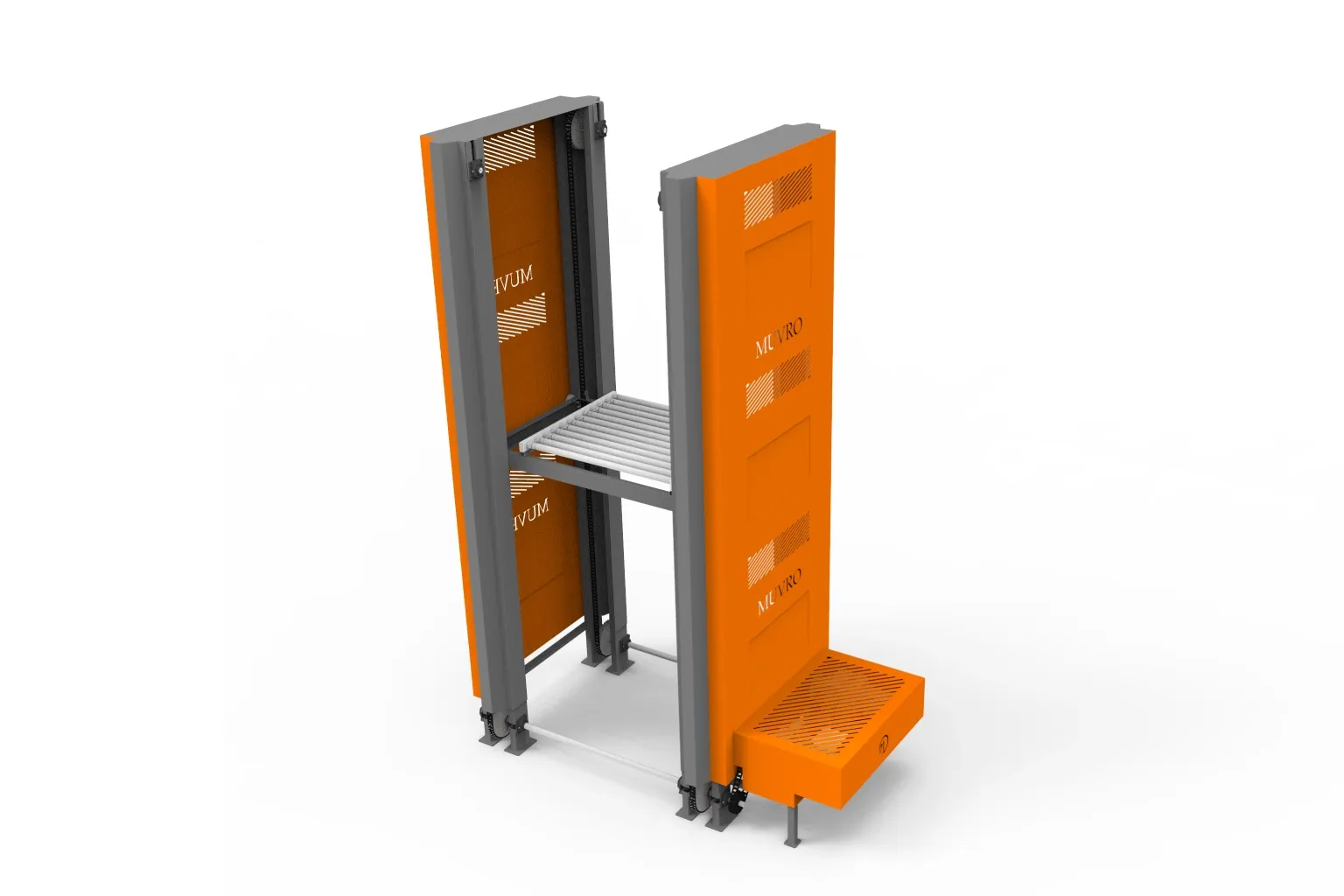

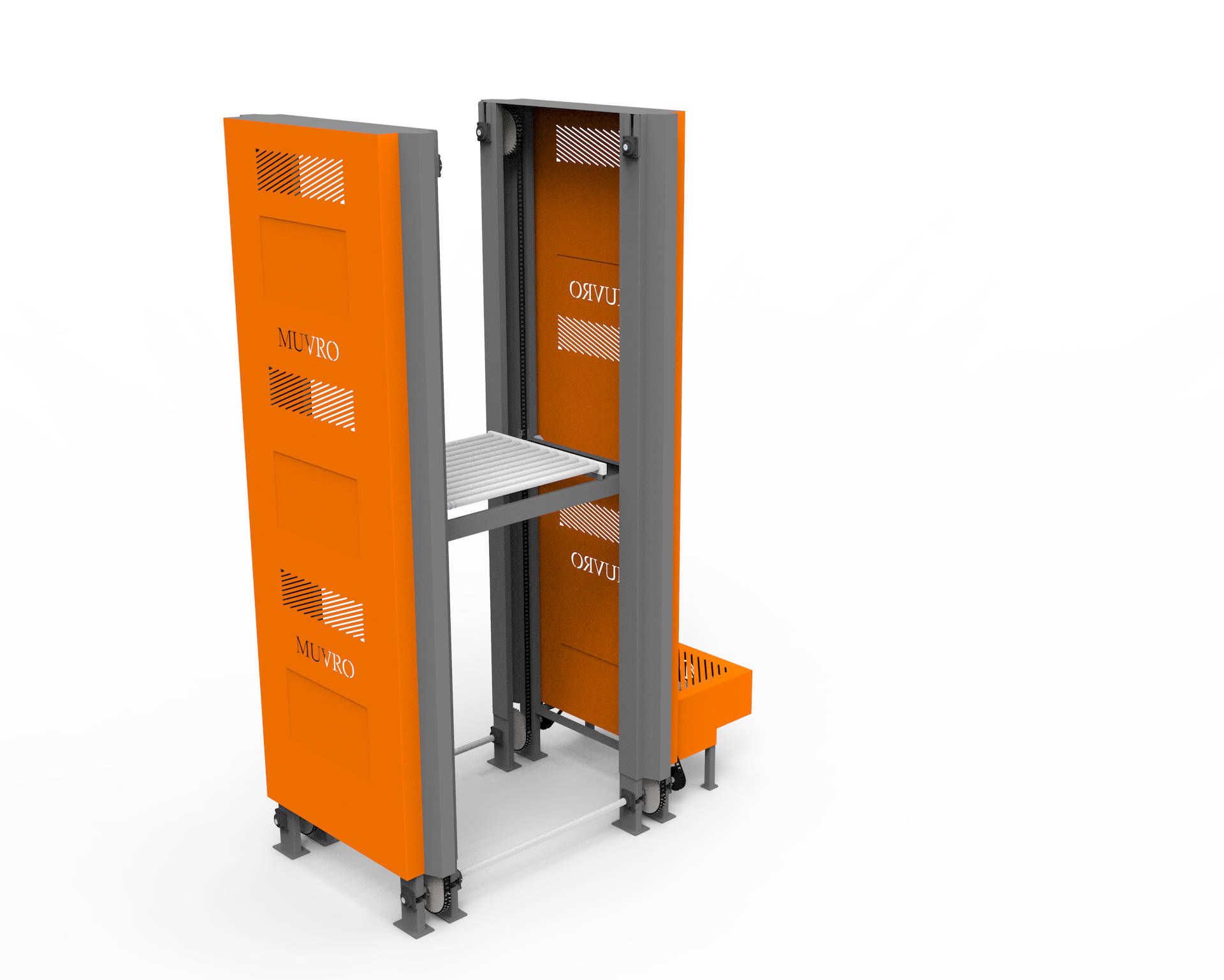

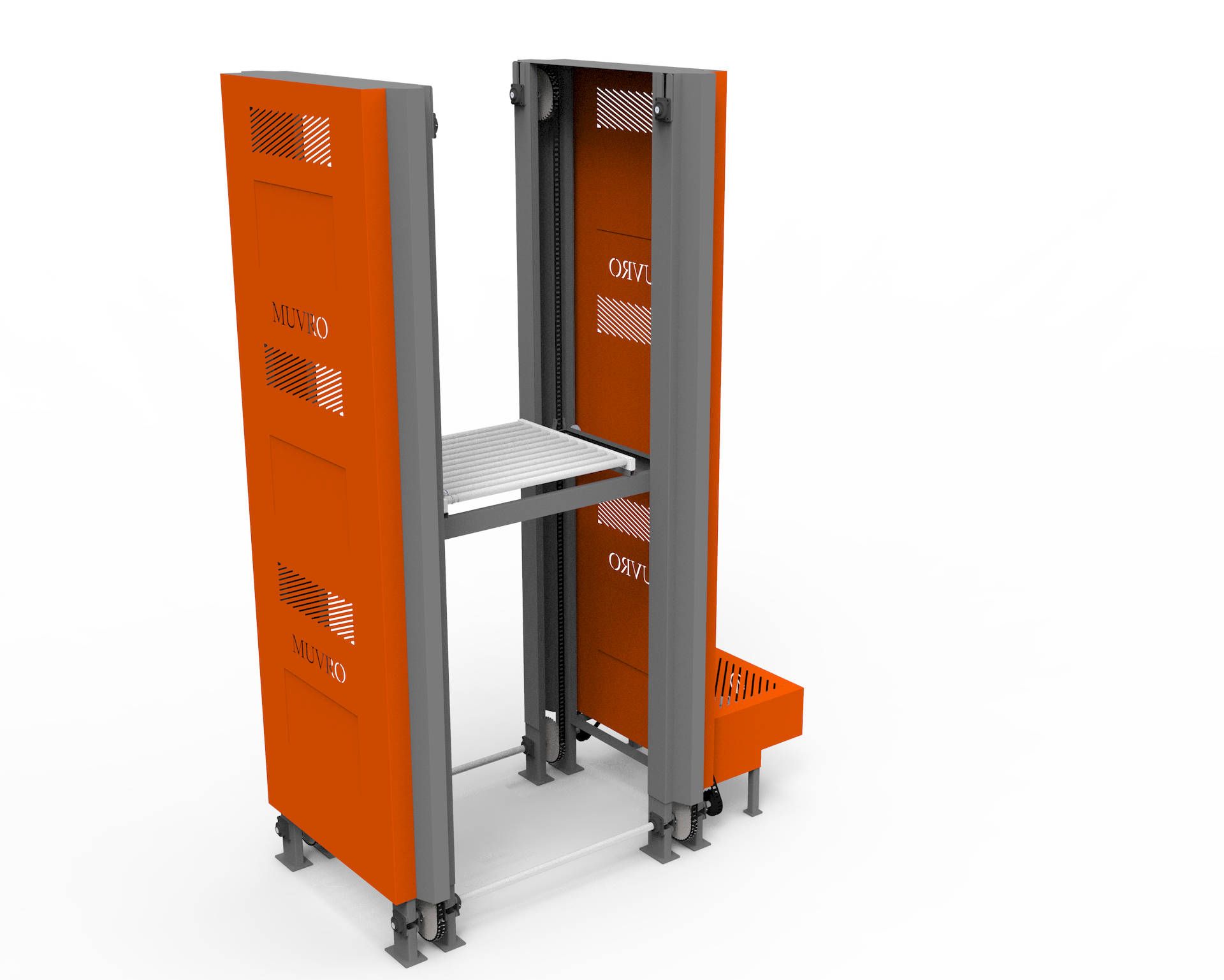

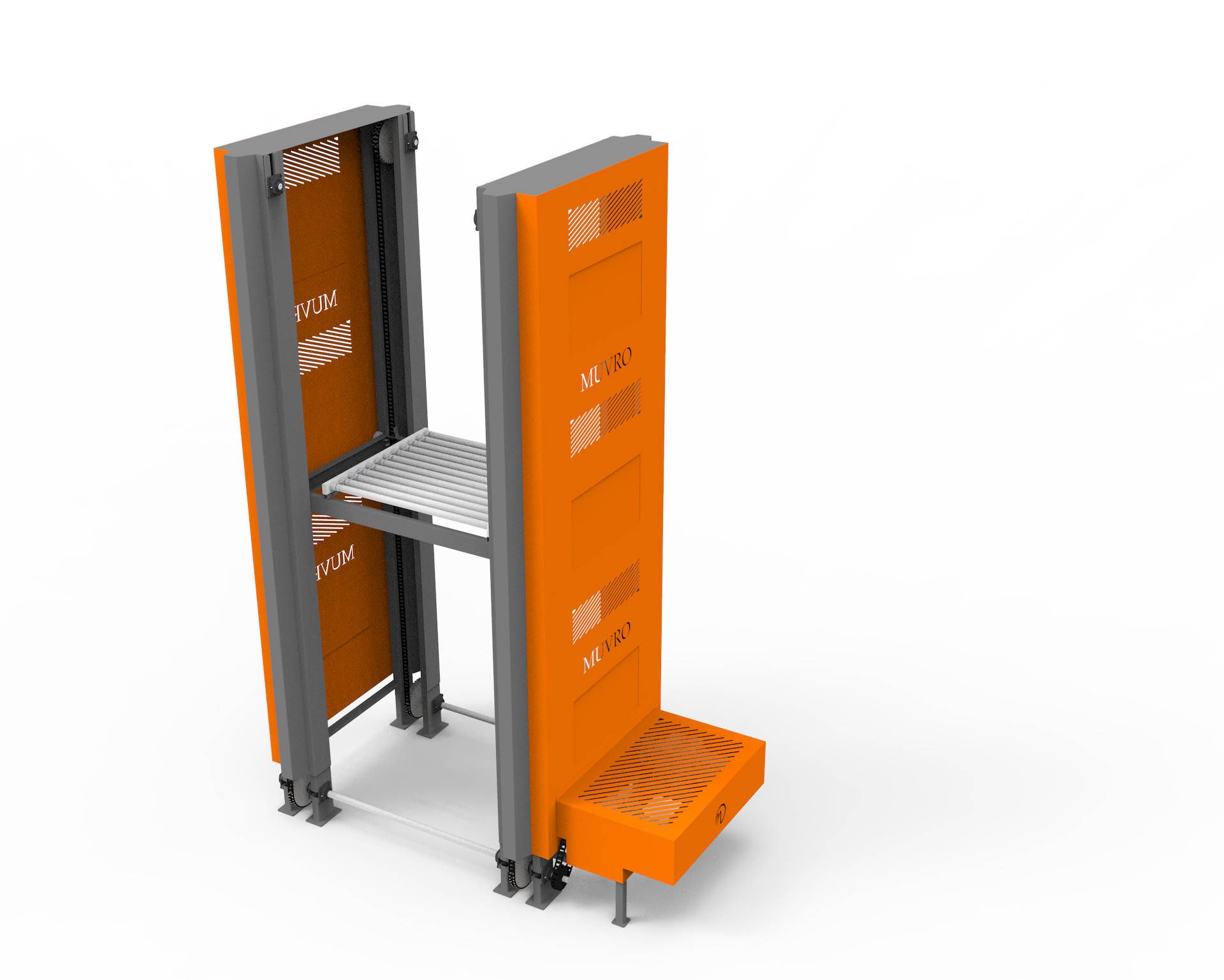

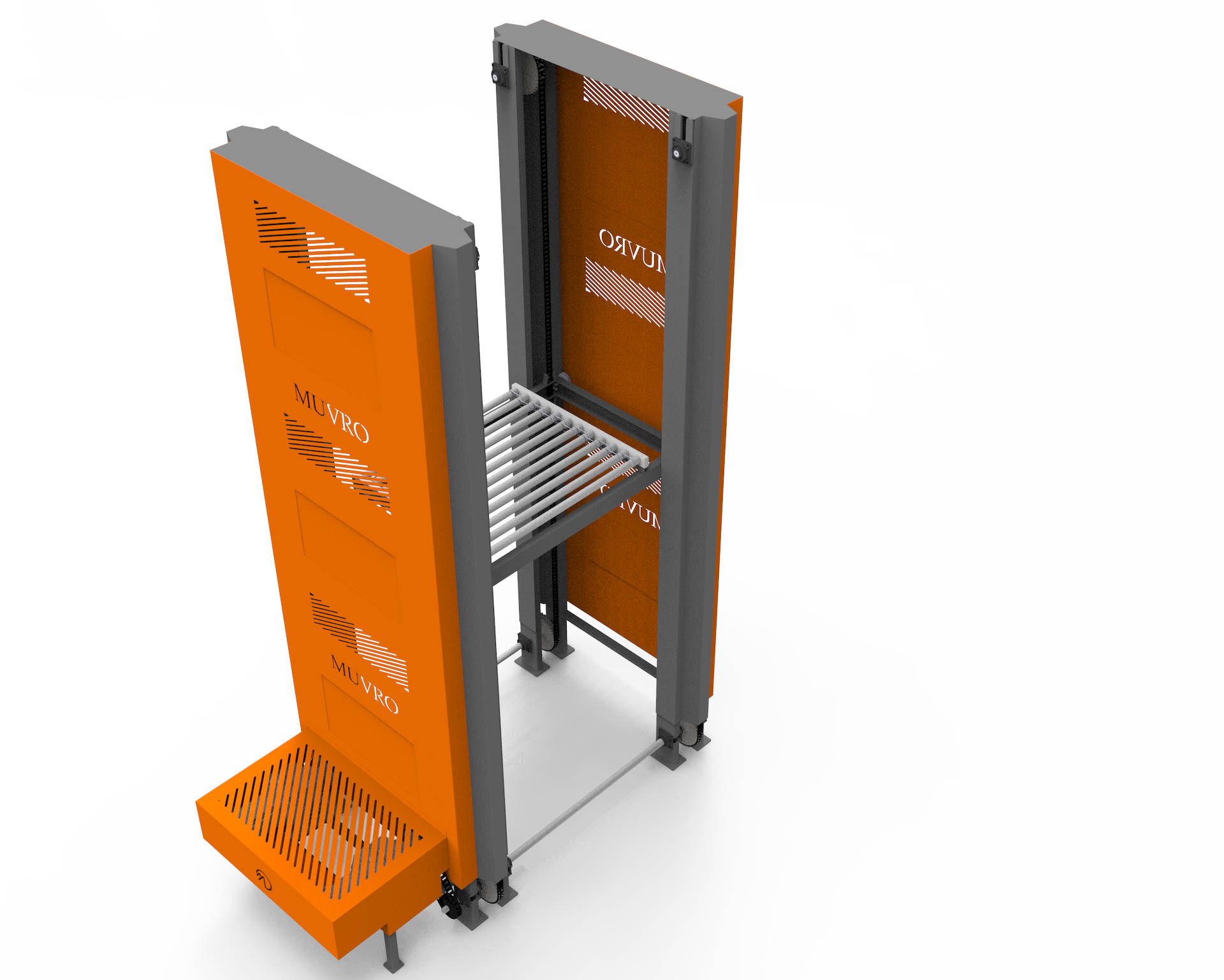

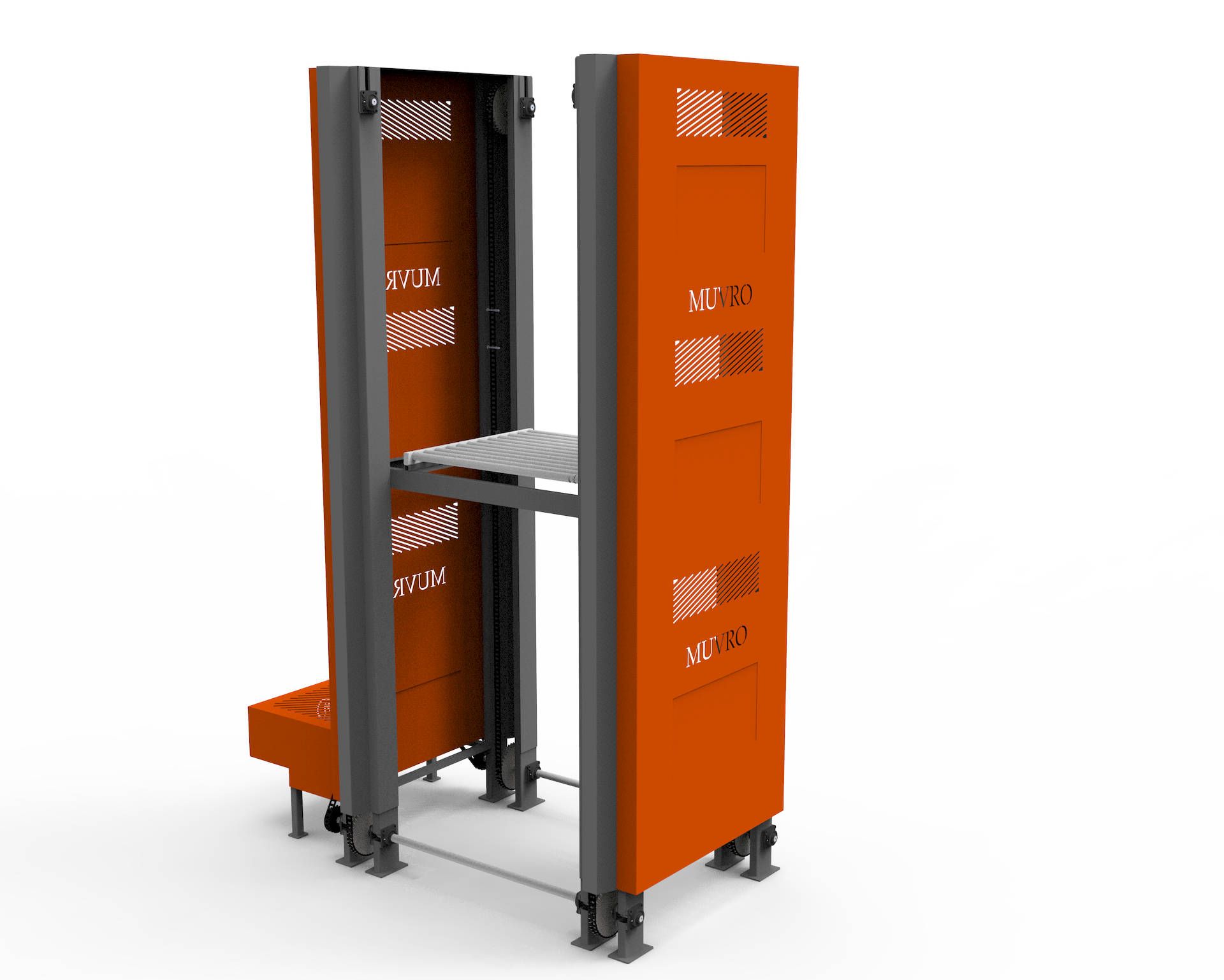

The eLift is the vertical lifeline Transfers pallets between storage levels Max load 2000 kg

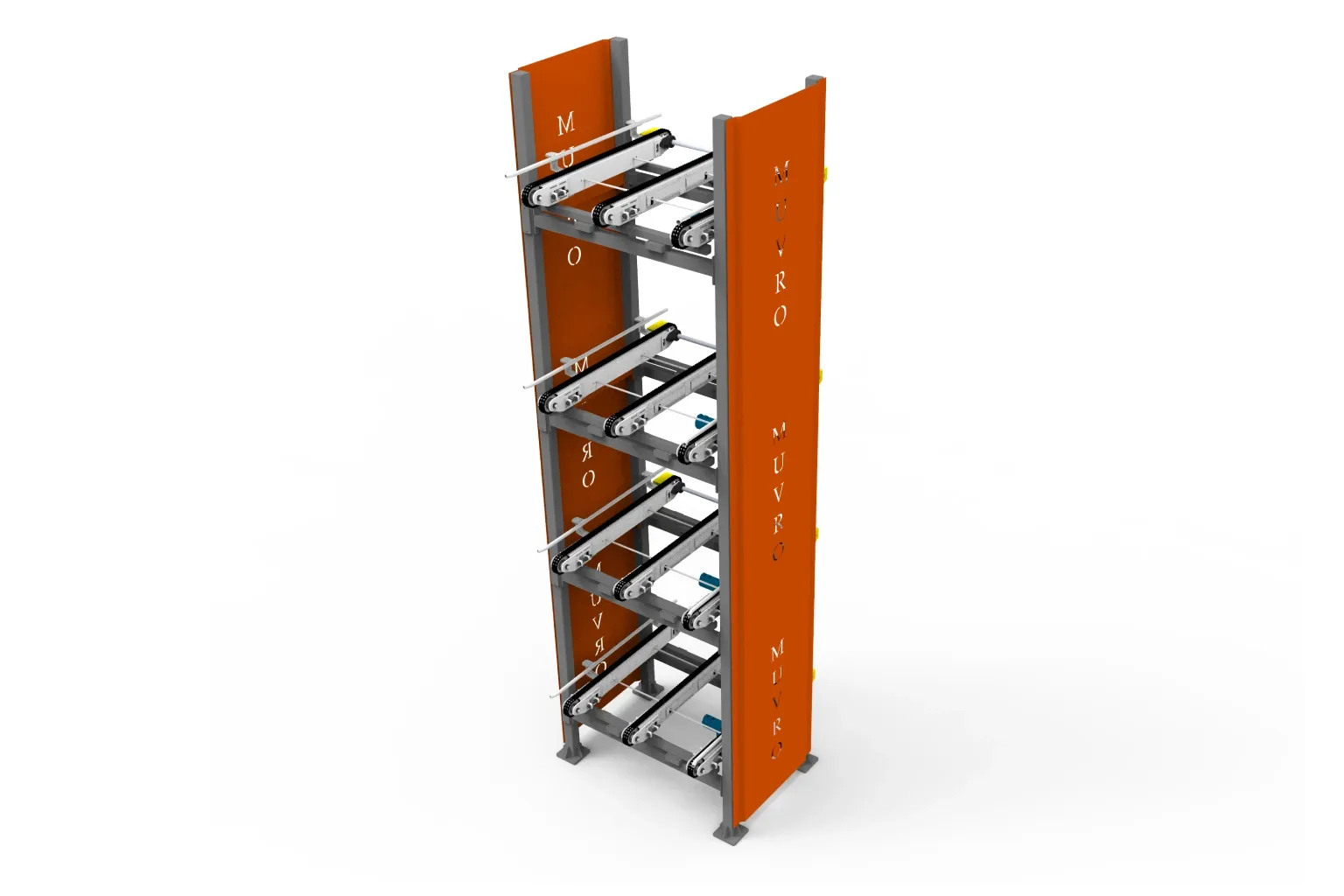

Located at each level Acts as a staging point Allows lift and shuttle to work in parallel increasing throughput

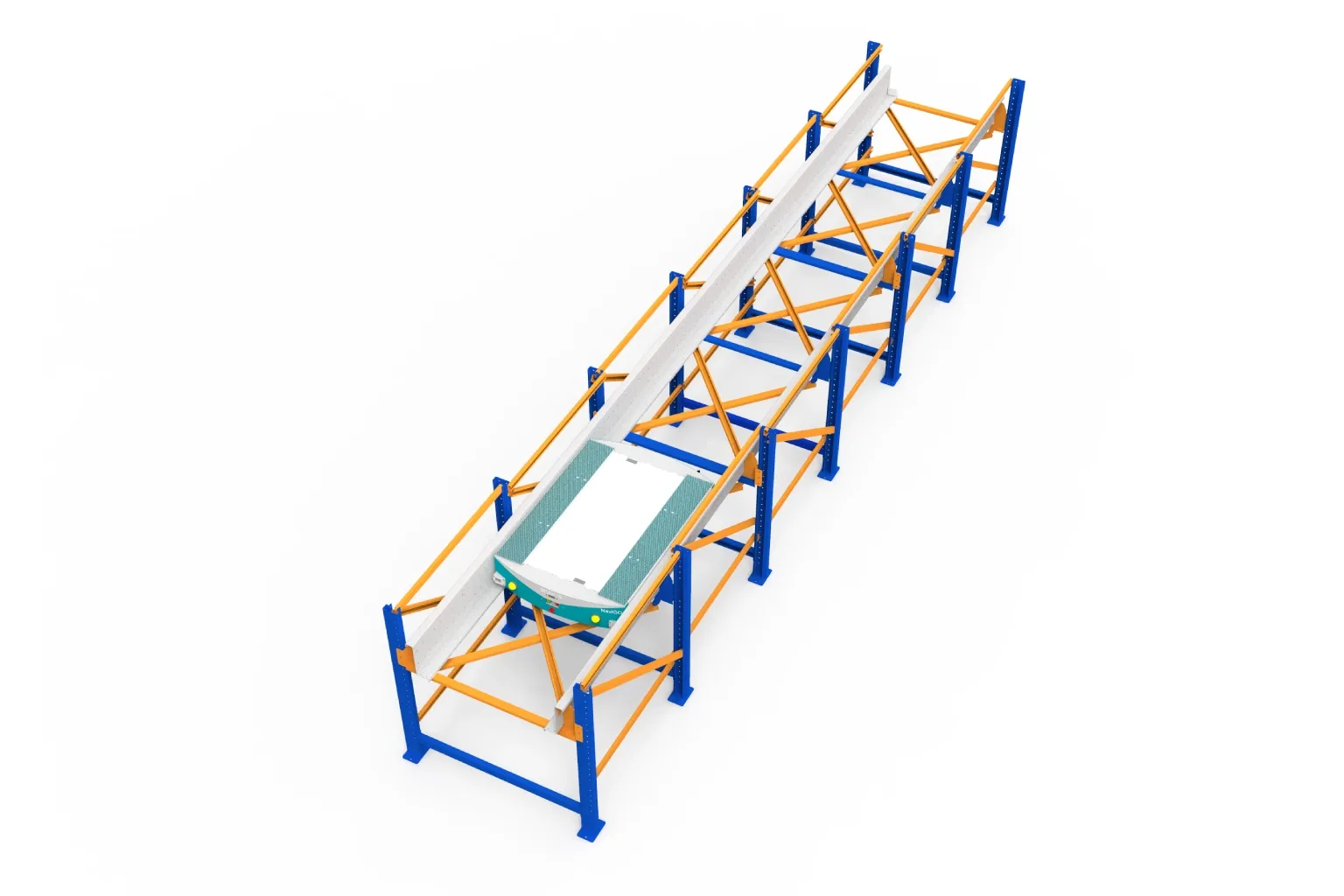

Deep-lane racking with narrow shuttle tracks Configurable height depth levels Compact aisle width 0.914 m

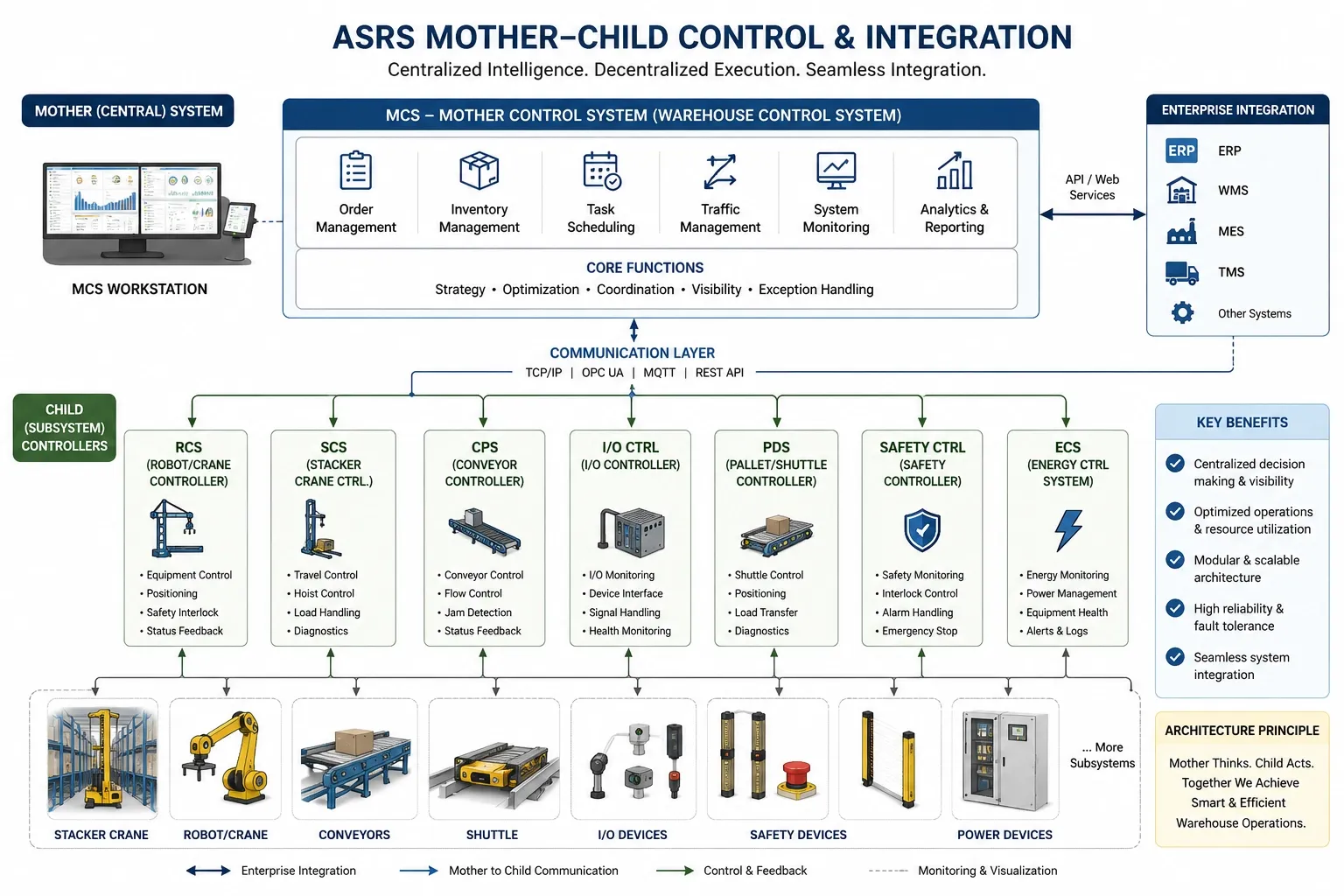

Siemens PLC S7-1200 CPU 1513-1PN Profinet Communication WMS inventory tracking order management Integration via APIs with ERP
