The Muvro PVC Curve Conveyor System is a specialized material handling solution engineered to smoothly transport products through 45°, 90°, or custom directional changes while maintaining product orientation, stability, and uniform speed, making it ideal for manufacturing plants, warehouses, distribution centers, packaging lines, and food or pharmaceutical industries where space optimization is critical built with a durable, wear-resistant tapere...
Ensures seamless product flow around corners without disturbing orientation or stability.
Durable, wear-resistant, and available in food-grade and anti-static options.
Optimizes floor space by efficiently handling tight layout turns.
Tapered belt design maintains uniform speed and prevents slipping or accumulation.
Robust MS or SS frame construction ensures long-lasting performance.
Available in multiple radius and belt width options to suit application needs.
Our PVC curve conveyors are designed to be easy to install and maintain, and can be customized to meet the specific needs of your application. They feature a PVC belt that is resistant to wear and tear and is able to handle heavy loads. They are also equipped with a variety of accessories, such as pop-up stops and guide rails, to help ensure smooth and efficient operation.
In addition, PVC curve conveyors are designed to be easy to clean, hygienic and suitable for food handling applications. They are also resistant to chemicals and other corrosive materials.
If you're looking for a reliable and cost-effective solution for handling materials in curved or angled configurations, consider our PVC curve conveyors.
Engineered for smooth directional transfers, high-grip performance, adjustable merge angles, PLC-controlled automation, and robust industrial construction for efficient material handling in automated logistics systems.

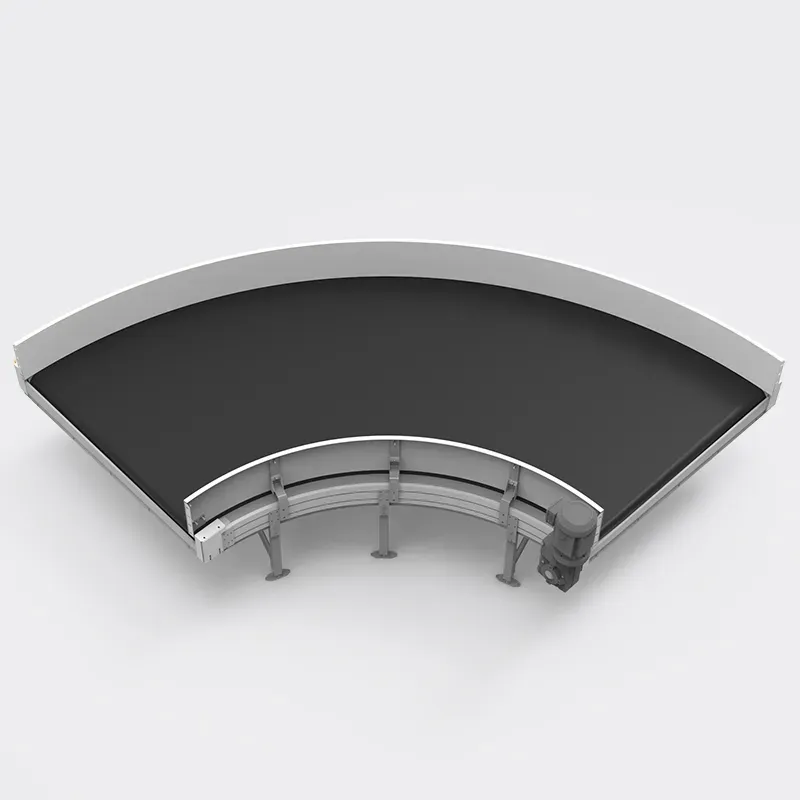

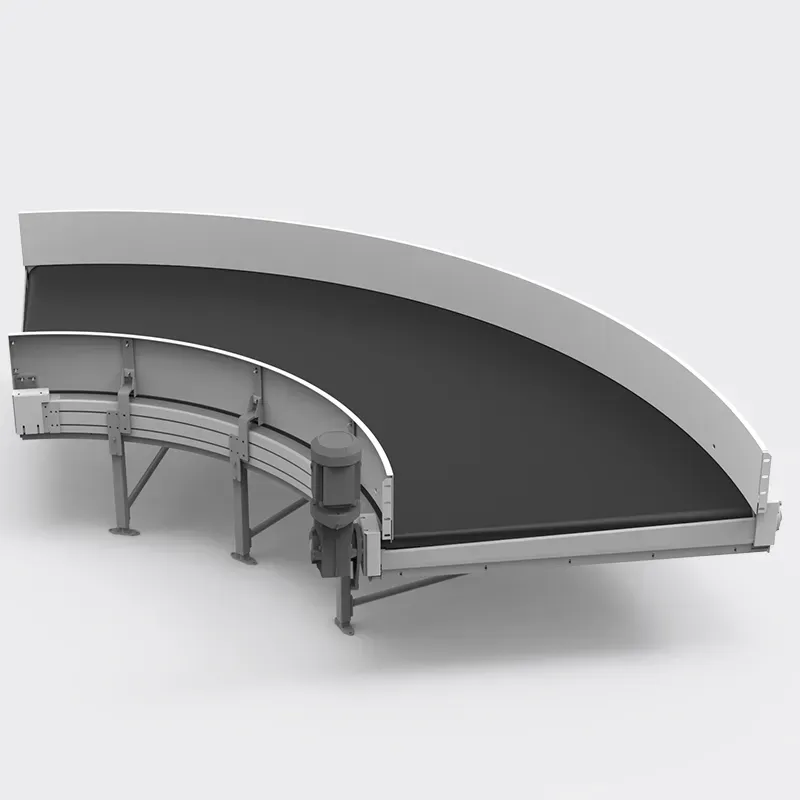

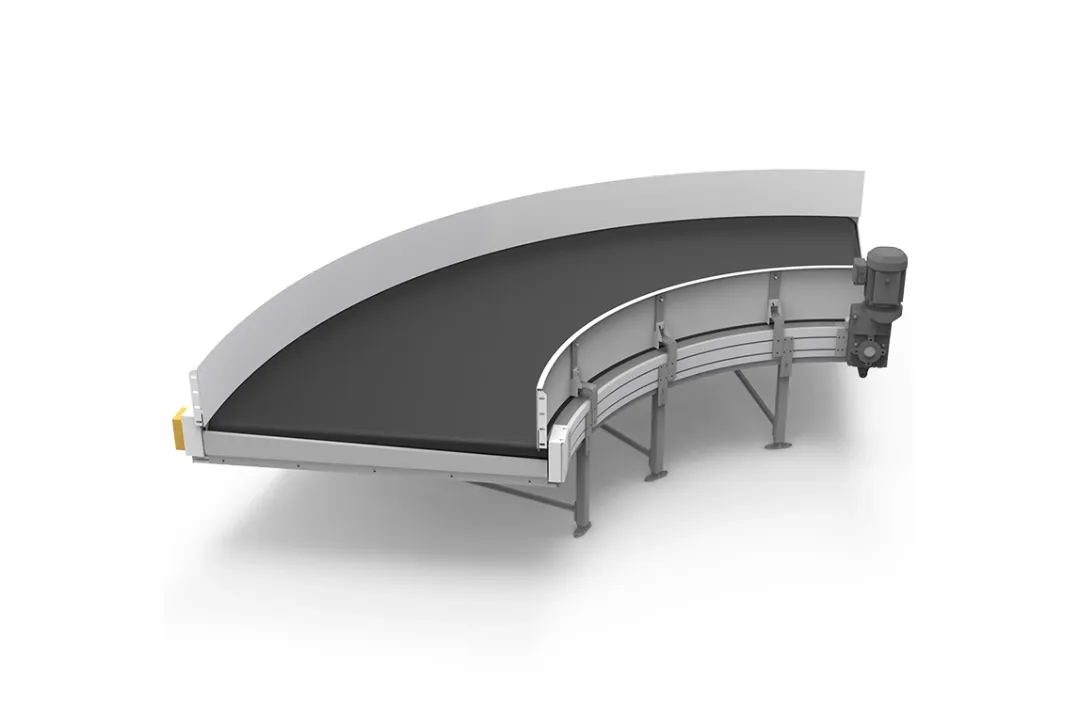

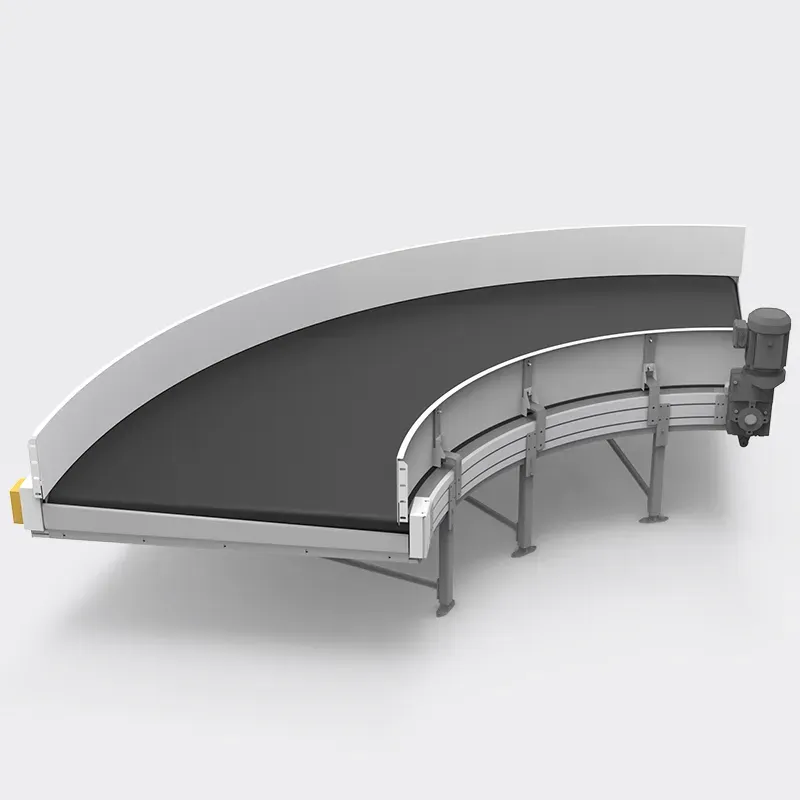

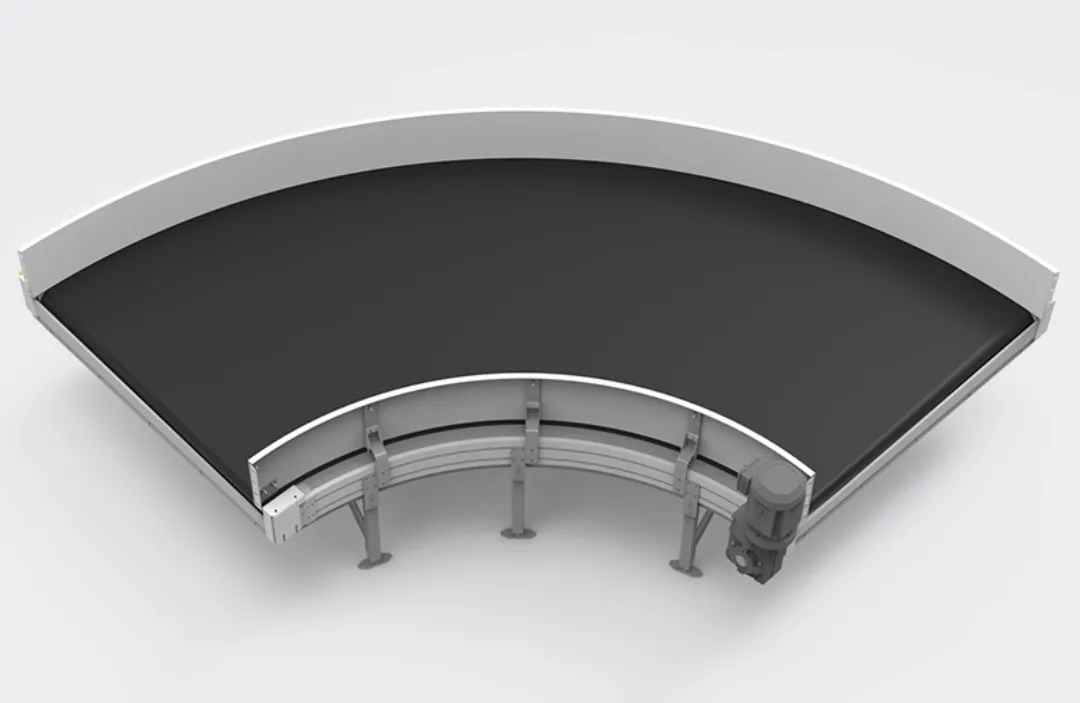

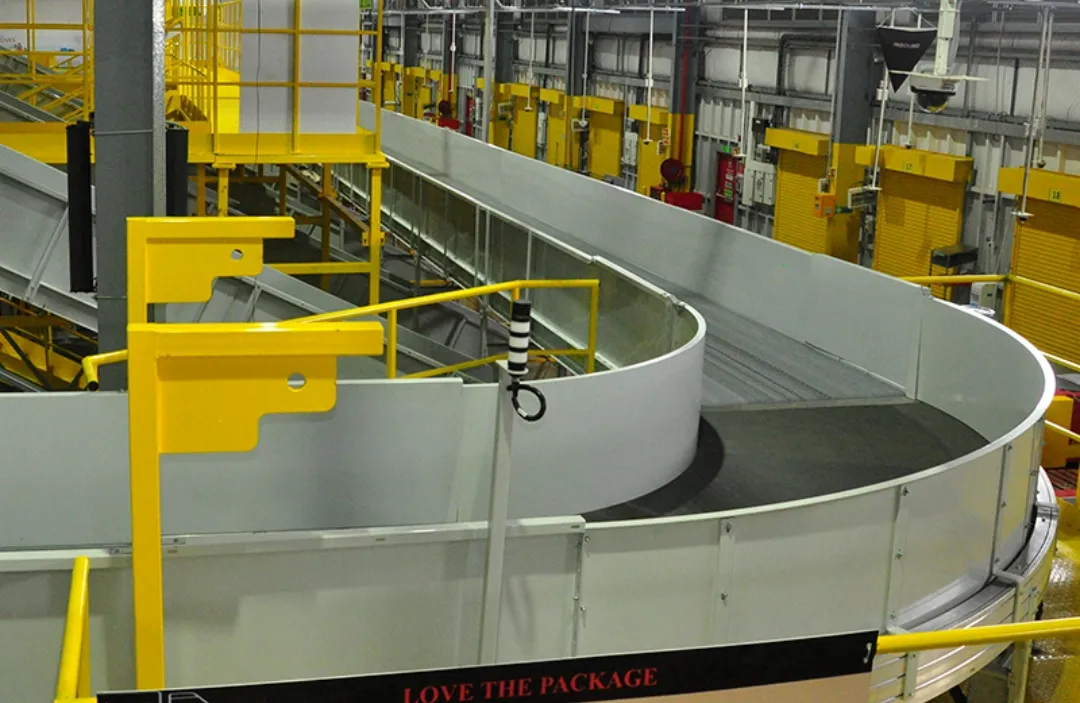

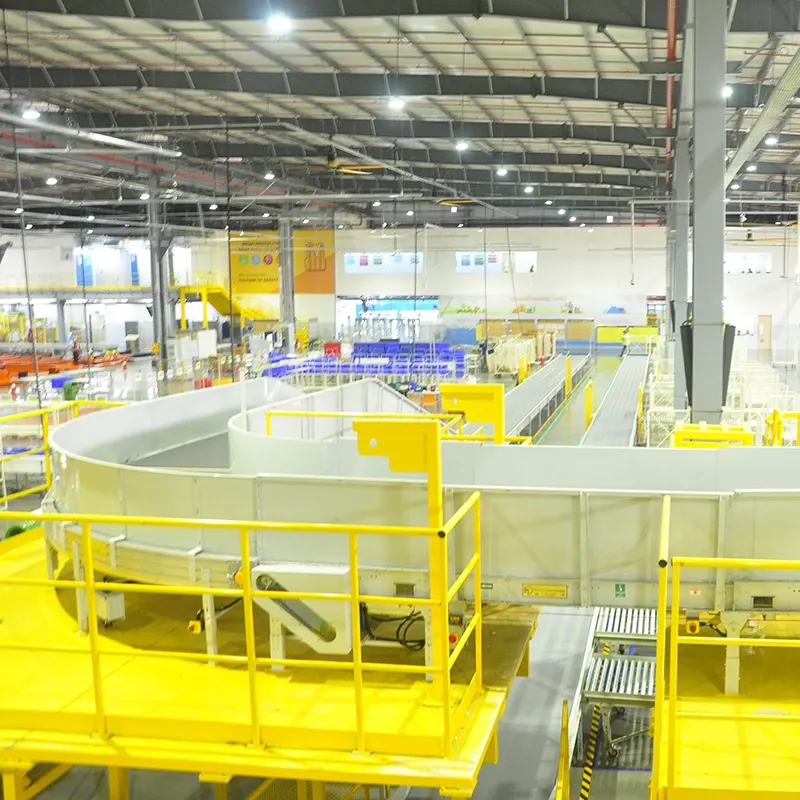

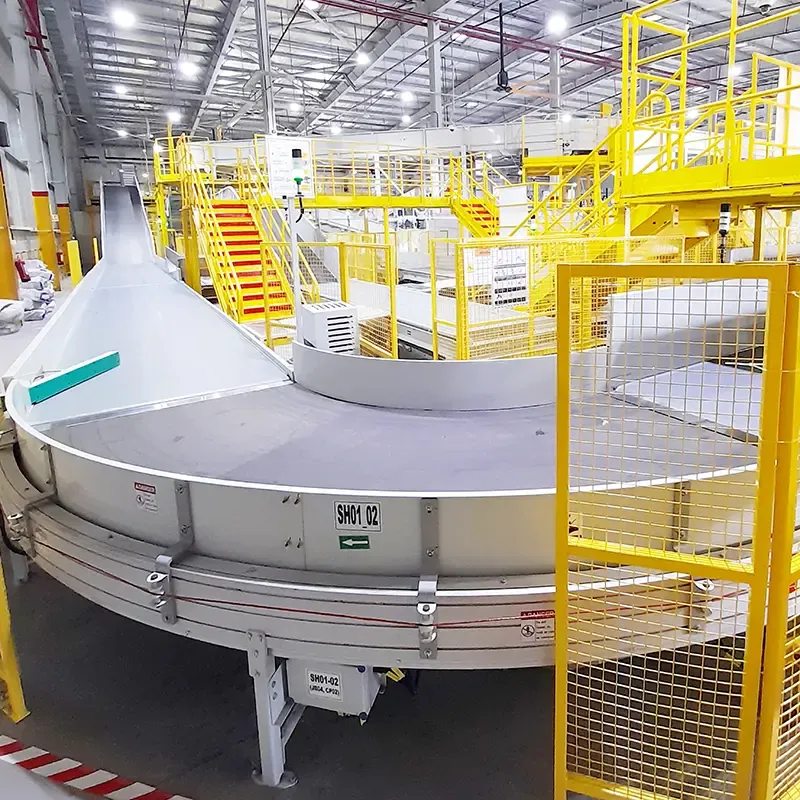

PVC Belt Curve Conveyor
Conveyor Type
Modular
Conveyor Construction
PVC Belt with High-Grip Surface
Belt Material
2 mm to 5 mm (customizable)
Belt Thickness
500 mm to 1000 mm (customizable)
Belt Width
500, 600, 800, 1000, 1200
Conveyor Curve Radius
300 mm to 1200 mm
Conveyor Height
30 Kg, 50 kg Mtr Max
Conveying Capacity
60 ~ 120 Mtr / Min
Conveyor Speed
AC Geared Motor / Servo Motor
Conveyor Drive
Adjustable (30°, 45°, 60°, 90° and 180°)
Merge Angles
< 70 Dba (Excluding Environmental & Platform)
Running Noise
(-)10°C to 40°C (humidity 10–95% non-condensing)
Ambient Temperature Range
By PLC
Sequence Control
By VFD
Speed Control
HMI
Man Machine Interface
Optional
SCADA / WCS
Profinet / Ethernet / Modbus
Communication Protocol
Profinet / Ethernet / Modbus
Real-Time Communication
Photo Electric Sensors
Sensors
Stainless Steel, Aluminium, or U-Channel
Side Guide
50 mm, 150 mm
Side Guide Height
Safety Covers, Photo Sensors with Mounting Brackets, Cable Tray, Bottom Cover, Belt Skirt Guides, Channel Side Covers
Conveyor Accessories
Carton Boxes, Plastic Totes, Bags, Parcels
Conveying Products
24 VDC
Rated Voltage
3 Phase (360 ~ 440 VAC)
Main Power Supply to Control Box
50 ~ 60 Hz
Rated Frequency
High-quality CRC steel sheet
Conveyor Frame
High-quality CRC steel sheet
Conveyor Legs
Shot Blasted and Powder Coated
Painting
Gray RAL-7016, Orange Glossy HGS 2302
RAL Colour
CE, ISO 9001, OSHA, UL
Certifications
